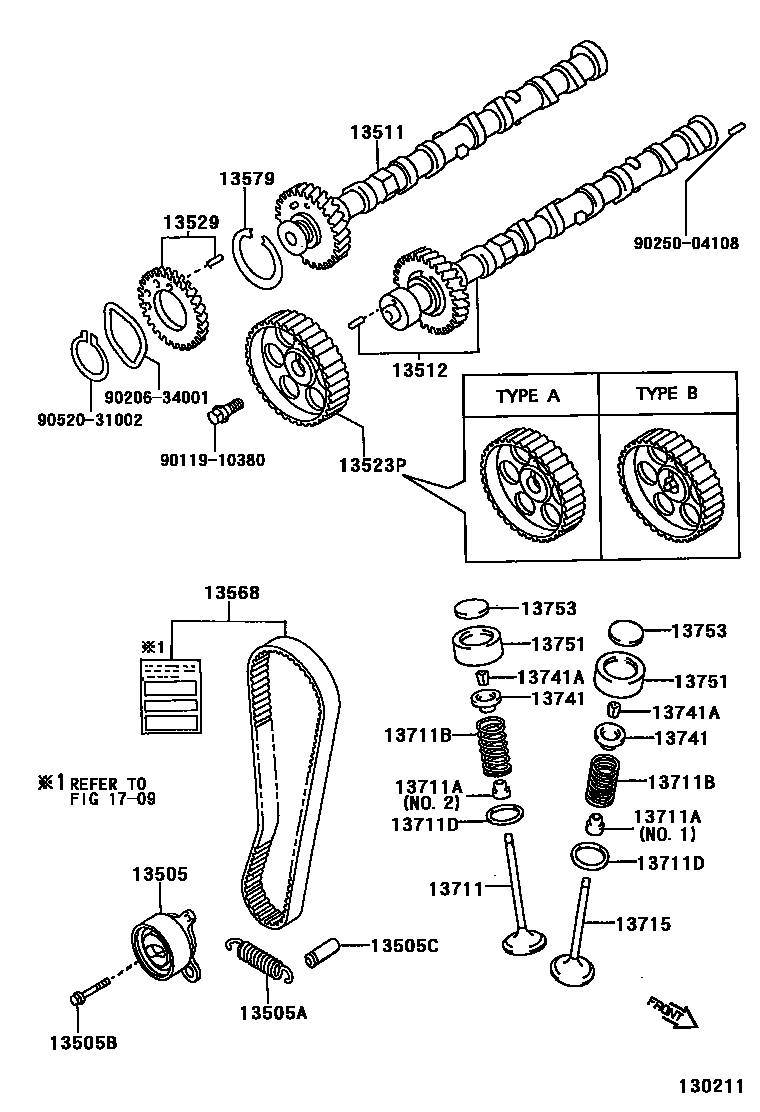

CAMSHAFT & VALVE
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13505ASPRING, TENSION(FOR IDLER)
13505BBOLT, FLANGE (FOR IDLER)
13505CPIN(FOR IDLER SPRING TENSION)
13511CAMSHAFT
13512CAMSHAFT, NO.2
13523PPULLEY, CAMSHAFT TIMING
W(EGR)
(L)
TYPE A
TYPE B
13568BELT, TIMING
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13711VALVE, INTAKE
W(EGR)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.2
NO.1
NO.1
NO.1; NO.2
NO.2
13711BSPRING, COMPRESSION(FOR INNER)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
W(EGR)
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
1709CAUTION PLATE & NAME PLATE (ENGINE)
9011910380
main90119-10380
9020634001
main90206-34001
9025004108
main90250-04108
9052031002
main90520-31002
