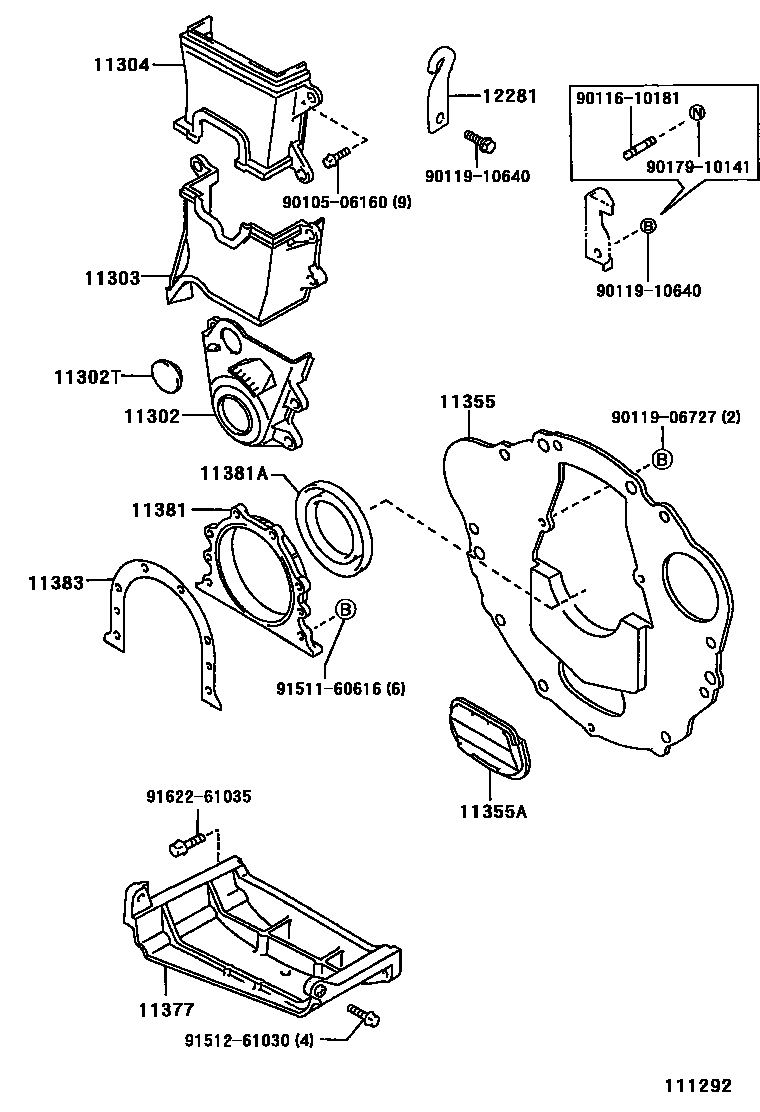

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15050i4AFE..AT210199810

main11302-16040i4AFE..AT210199601-199810

main11302-74040i3SFE..ST210199601

11302TPLUG, HOLE

main90950-01783i4AFE..AT210199601

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15050i4AFE..AT210199810

main11303-16060i4AFE..AT210199601-199810

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-74050i3SFE..ST210199601

main11304-15030i4AFE..AT210199810

main11304-16100i4AFE..AT210199601-199810

11355PLATE, REAR END

main11355-15070i4AFE..AT210..MTM199601-199810

main11355-15080i4AFE..AT210..ATM199601

main11355-74010i3SFE..ST210199601

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i4AFE..AT210..ATM199601

11377STIFFENER, REAR END PLATE

main11377-15012i4AFE..AT210199601

main11377-74030i3SFE..ST210199601

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i4AFE..AT210199601

main11381-63012i3SFE..ST210199601

11381ASEAL, ENGINE REAR OIL

main90311-70007i4AFE..AT210199601

main90311-85006i3SFE..ST210199601-199801

main90311-85009i3SFE..ST210199801

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-16010i4AFE..AT210199601

main11383-74021i3SFE..ST210199601

12281HANGER, ENGINE, NO.1

main12281-15050i4AFE..AT210199601

9010506160

main90105-06160

9011610181

main90116-10181

9011906727

main90119-06727

9011910640

main90119-10640

9017910141

main90179-10141

9151160616

main91511-60616

9151261030

main91512-61030

9162261035

main91622-61035

19 parts on this diagram · 2 diagrams in section
