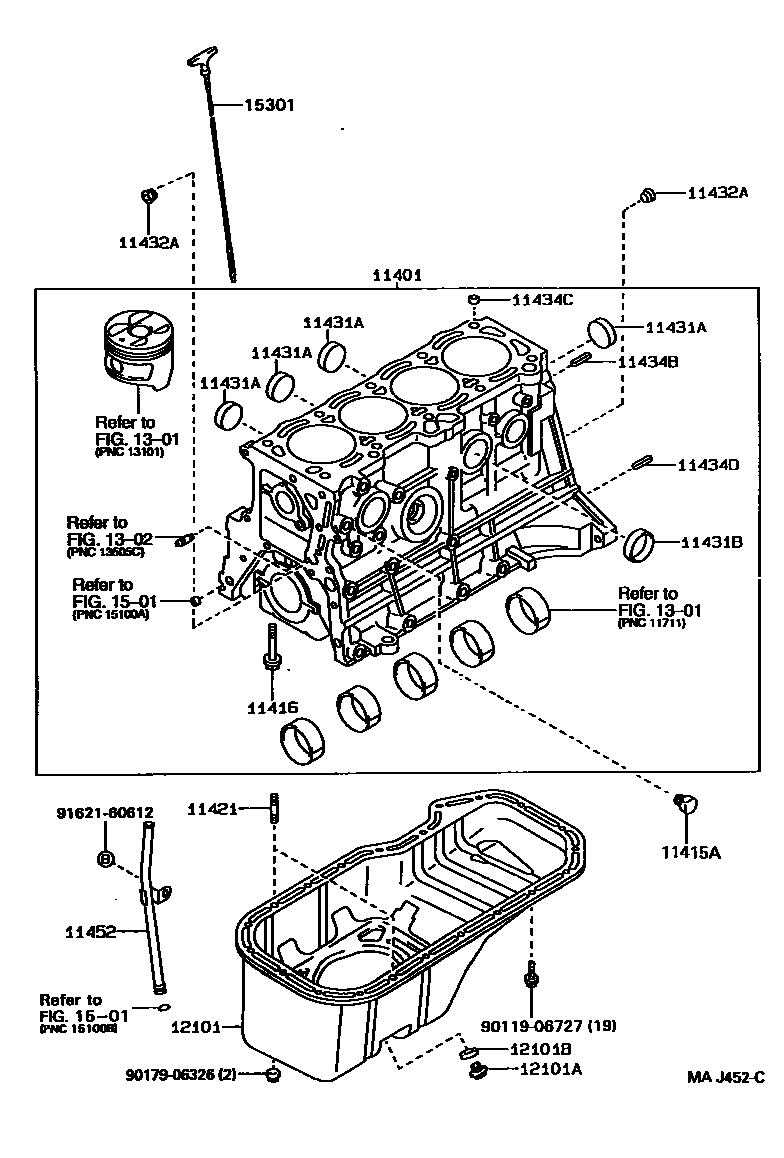

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19695i4AFE..AT210199601-199810

main11401-19755i4AFE..AT210199810

main11401-79745i3SFE..ST210199601

W(EGR)

main11401-79775i3SFE..ST210199601-199712

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i3SFE..ST210199805

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i3SFE..ST210199601-199805

main90345-52003i4AFE..AT210199601

main90910-09087i3SFE..ST210199805

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007i4AFE..AT210199601

main90105-10028i3SFE..ST210199601

11421BOLT, STUD(FOR OIL PAN)

main90116-06022i3SFE..ST210199601-199709

main92122-60610i3SFE..ST210199709

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500i4AFE..AT210199601

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i3SFE..ST210199601

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53006i4AFE..AT210199608

main90344-53008i4AFE..AT210199601-199608

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i4AFE..AT210199601

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017i4AFE..AT210199601

L=12,OD=13

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i4AFE..AT210199601

L=14,OD=6

11452GUIDE, OIL LEVEL GAGE

main11452-15030i4AFE..AT210199601

main11452-74031i3SFE..ST210199601

12101PAN SUB-ASSY, OIL

main12101-16100i4AFE..AT210199601

main12101-74050i3SFE..ST210199601-199805

main12101-74150i3SFE..ST210199805

sub12101-74160

sub12129-54010

sub91651-60614

12101APLUG(FOR OIL PAN DRAIN)

main90341-12026i4AFE..AT210199601

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i4AFE..AT210199601

1301

1302

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-15051i4AFE..AT210199601

main15301-74010i3SFE..ST210199601

9011906727

main90119-06727

9017906326

main90179-06326

9162160612

main91621-60612

22 parts on this diagram · 2 diagrams in section
