SHORT BLOCK ASSEMBLY

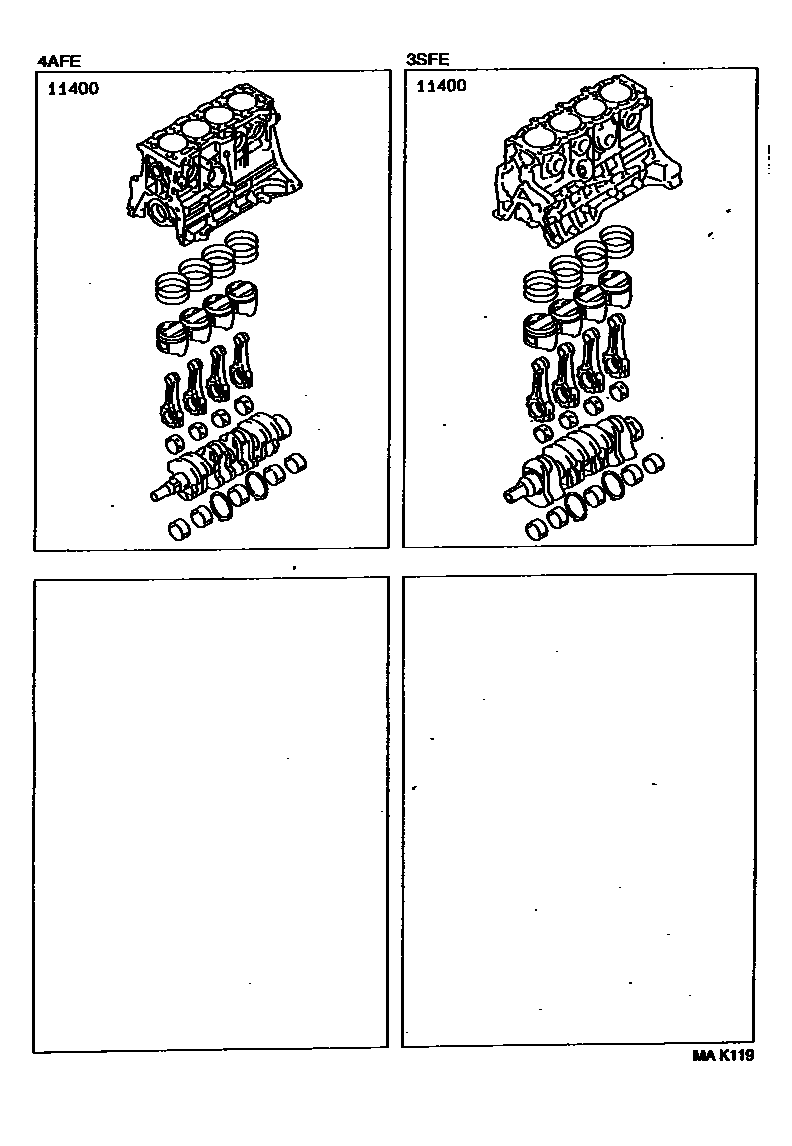

Parts diagram

11400BLOCK ASSY, SHORT

main11400-16331i199908

main11400-16380i199810-199908

main11400-16420i199601-199810

main11400-74331i199601

W(EGR)

main11400-74370i199608-199712

main11400-74380i199601-199608

1 parts on this diagram · 1 diagram in section
