HEATING & AIR CONDITIONING - COOLER PIPING

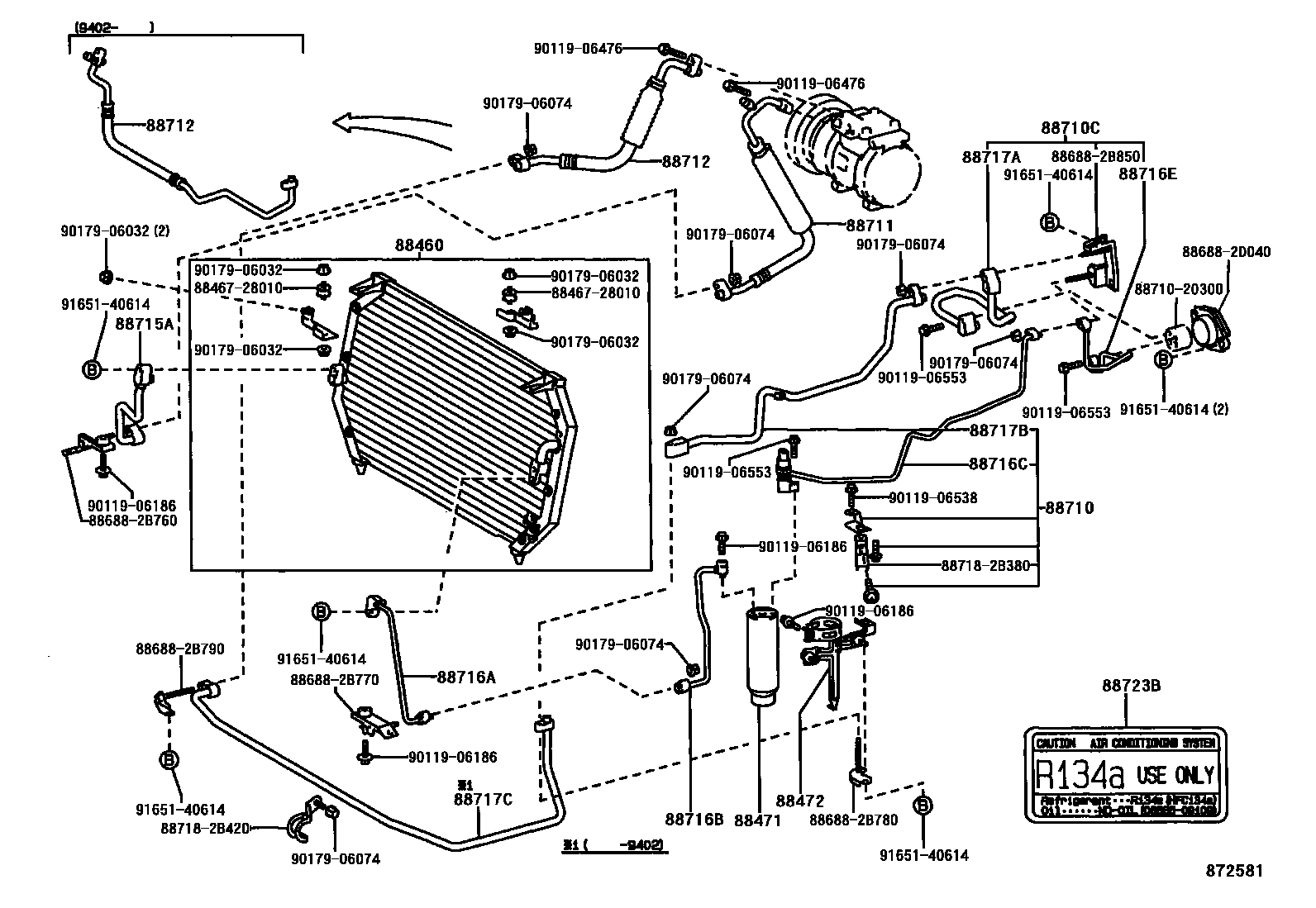

Parts diagram
88460CONDENSER ASSY, COOLER
main88460-20370i199212-199501
MOP OR DOP OR BOOST VENTILATOR
main88460-20380i199203-199601
88471TANK, RECEIVER AIR CONDITIONER
main88471-20050i199203-199606
88472BRACKET, RECEIVER TANK, NO.1
main88472-20110i199212-199402
DEALER OPITON
main88472-20140i199203-199606
main88472-20150i199212-199501
MOP OR DOP OR BOOST VENTILATOR
main88472-20160i199203-199205
W(AIR CONDITONER)
88710TUBE ASSY, AIR CONDITIONER
main88710-20230i199203-199606
88710CTUBE ASSY, AIR CONDITIONER
main88710-20250i199307-199606
main88710-20310i199402-199601
main88710-20330i199204-199601
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
main88711-20860i199203-199212
W(*TAC)
main88711-20870i199203-199606
main88711-20880i199203-199601
main88711-2B120i199302-199402
MAKER OPT & BOOST VENTILATOR
main88711-2B121i199501-199601
W(*TAC)
main88711-2B300i199402-199601
PUSH TYPE HEATER PANEL---DEALER OPT
88712HOSE, COOLER REFRIGERANT SUCTION, NO.1
main88712-2B210i199203-199402
main88712-2B220i199203-199402
main88712-2B230i199203-199204
DEALER OPTION
main88712-2B250i199212-199402
MOP OR DOP OR BOOST VENTILATOR
main88712-2B251i199501-199601
main88712-2B260i199203
main88712-2B410i199204-199601
main88712-2B780i199607-199703
PUSH TYPE HEATER PANEL & DOP
main88712-2B790i199402-199501
MAKER OPTION OR W(BOOST VENTILATOR); PUSH TYPE HEATER PANEL & DOP OR W(BOOST VENTILATOR) OR MOP
main88712-2B810i199402-199501
MOP OR DOP OR BOOST VENTILATOR
main88712-2D500i199402-199606
DEALER OPTION
88715APIPE, COOLER REFRIGERANT DISCHARGE, A
main88715-20120i199203-199606
88716APIPE, COOLER REFRIGERANT LIQUID, A
main88716-2D140i199203-199606
88716BPIPE, COOLER REFRIGERANT LIQUID, B
main88716-2D150i199203-199212
MAKER OPT OR DEALER OPT
main88716-2D151i199501-199606
main88716-2D180i199203-199402
main88716-2D181i199607-199711
88716CPIPE, COOLER REFRIGERANT LIQUID, C
main88710-20370i199307-199606
main88716-2D160i199203-199212
88716EPIPE, COOLER REFRIGERANT LIQUID, E
main88716-2D110i199203
main88716-2D120i199203-199601
main88716-2D170i199606-199607
main88716-2D200i199501-199601
main88716-2D220i199607-199703
MAKER OPT
88717APIPE, COOLER REFRIGERANT SUCTION, A
main88717-2B180i199203
main88717-2B190i199203-199601
main88717-2B230i199607-199703
main88717-2B260i199501-199601
main88717-2B450i199607-199703
MAKER OPT
88717BPIPE, COOLER REFRIGERANT SUCTION, B
main88717-2B160i199205-199606
main88717-2B280i199203-199205
DEALER OPTION
88717CPIPE, COOLER REFRIGERANT SUCTION, C
main88717-2B220i199307-199402
DEALER OPT; DEALER OPT OR *BV & DEALER OPT
main88717-2B221i199304-199402
MAKER OPT OR BOOST VENTILATOR
88723BLABEL, COOLER SERVICE CAUTION
main88723-20040i199607
8846728010CUSHION, COOLER CONDENSER, NO.1
main88467-28010
886882B760BRACKET, COOLER DIAPHRAGM
main88688-2B760
886882B770BRACKET, COOLER DIAPHRAGM
main88688-2B770
886882B780BRACKET, COOLER DIAPHRAGM
main88688-2B780
886882B790BRACKET, COOLER DIAPHRAGM
main88688-2B790
886882B850BRACKET, COOLER DIAPHRAGM
main88688-2B850
886882D040BRACKET, COOLER DIAPHRAGM
main88688-2D040
8871020300TUBE ASSY, AIR CONDITIONER
main88710-20300
887182B380PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2B380
887182B420PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2B420
9011906186
main90119-06186
9011906476
main90119-06476
9011906538
main90119-06538
9011906553
main90119-06553
9017906032
main90179-06032
9017906074
main90179-06074
9165140614
main91651-40614

33 parts on this diagram · 5 diagrams in section
