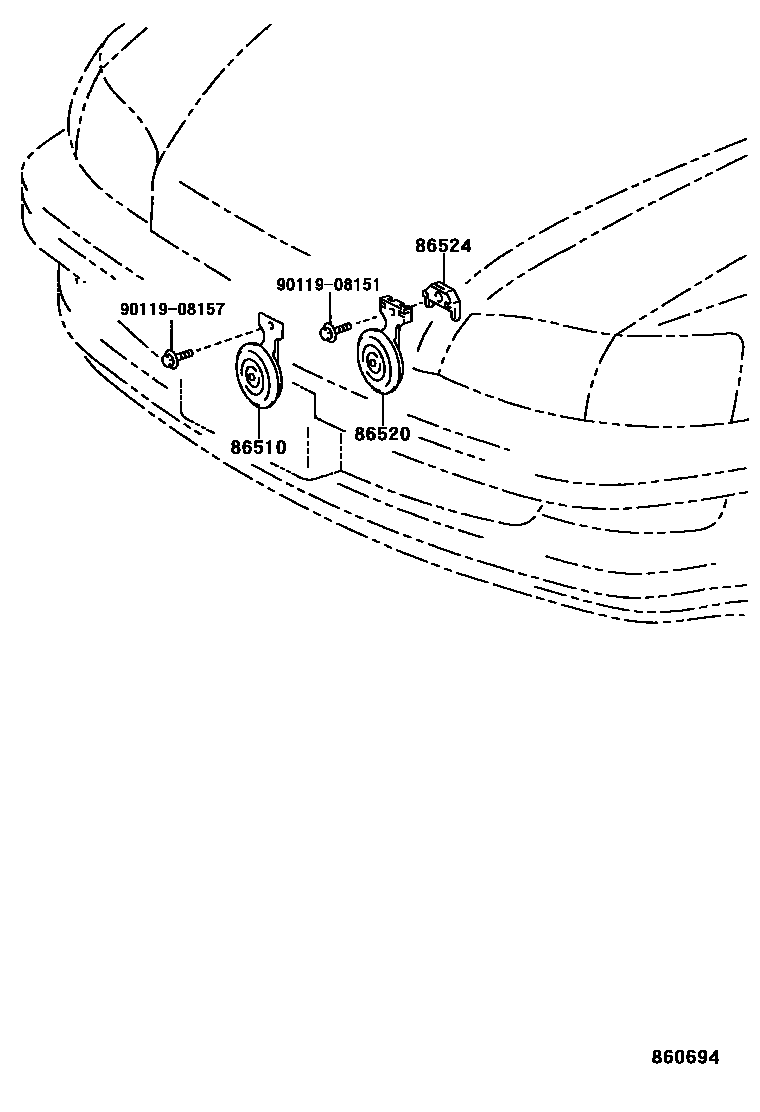

HORN

86510HORN ASSY, HIGH PITCHED

main86510-20210iAT190,ST191..JPP199606-199607

main86510-20230iAT190,ST191..JPP199607

W(MW/FM 4 SPEAKER)

main86510-20250iAT190..JPP..LHD199301-199402

CHINA SPEC & W(MW/SW RADIO)

main86510-30500iST191..JPP..LHD199203-199301

CHINA SPEC

86520HORN ASSY, LOW PITCHED

main86520-20220iAT190,ST191..JPP199607

main86520-20240iAT190,ST191..JPP199606-199607

W(MW/FM 4 SPEAKER)

main86520-20270iST191..JPP..LHD199301-199601

CHINA SPEC

main86520-30480iAT190..JPP..LHD199207-199301

CHINA SPEC & W(MW/SW RADIO)

86524SPACER, HORN

main86524-32020iAT190,CT190,ST191..JPP199203-199606

9011908151

main90119-08151

9011908157

main90119-08157

5 parts on this diagram · 1 diagram in section
