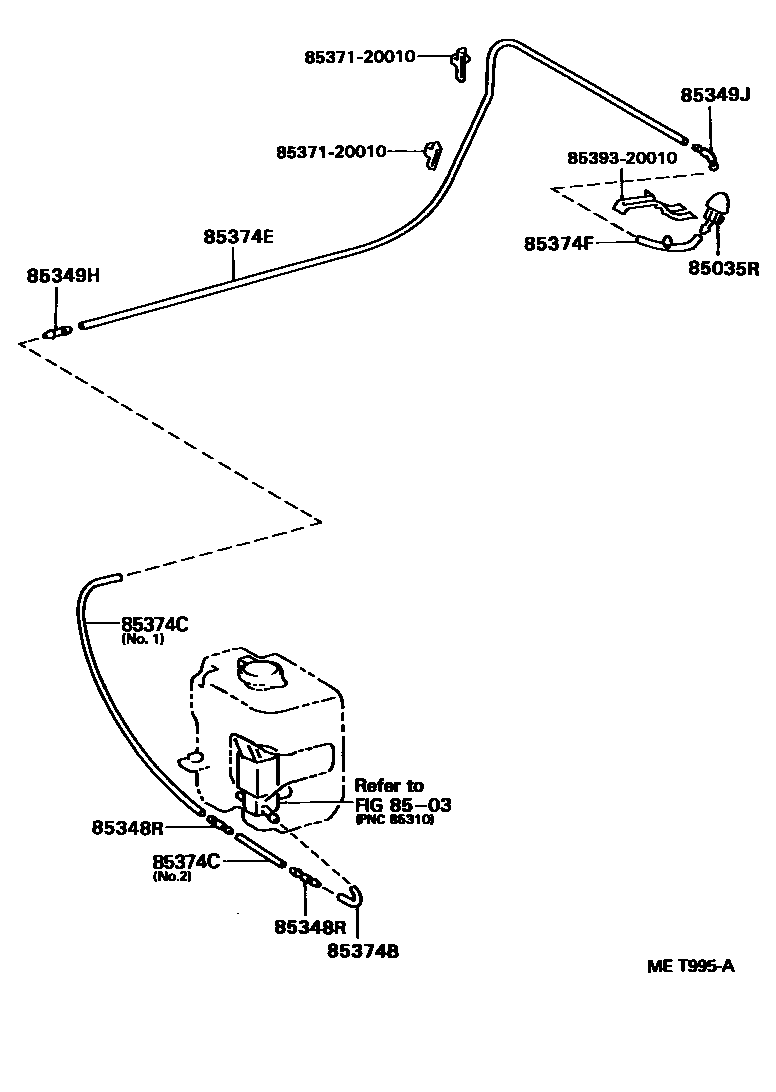

REAR WASHER

8503

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-20020iST191..JPP..LB199203-199606

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iST191..JPP..LB199203-199606

85349HJOINT, REAR WASHER HOSE, NO.3

main85349-32150iST191..JPP..LB199203-199606

85349JJOINT, REAR WASHER HOSE, NO.4

main85355-20200iST191..JPP..LB199203-199606

85374BHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.1)

main85317-28040iST191..JPP..LB199203-199606

L=36

main90446-07001iST191..JPP..LB199504-199606

L=1800(*H,L=1480)

85374CHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.2)

main90099-33080iST191..JPP..LB199203-199606

L=1450,NO.2

main90446-07001iST191..JPP..LB199203-199402

L=1800,NO.1

main90446-07001iST191..JPP..LB199402-199606

L=1800(*H,L=770)

85374EHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.4)

main90099-33420iST191..JPP..LB199402-199504

L=3300(*H,L=2400)

sub90099-33589

main90099-33630iST191..JPP..LB199504-199606

L=2560

sub90099-33589

85374FHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.5)

main85395-20010iST191..JPP..LB199203-199606

H=74.5

8537120010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-20010

8539320010HOLDER, REAR WASHER NOZZLE

main85393-20010

11 parts on this diagram · 1 diagram in section
