Toyota CORONA (SED/LB)271 — WINDSHIELD WASHER

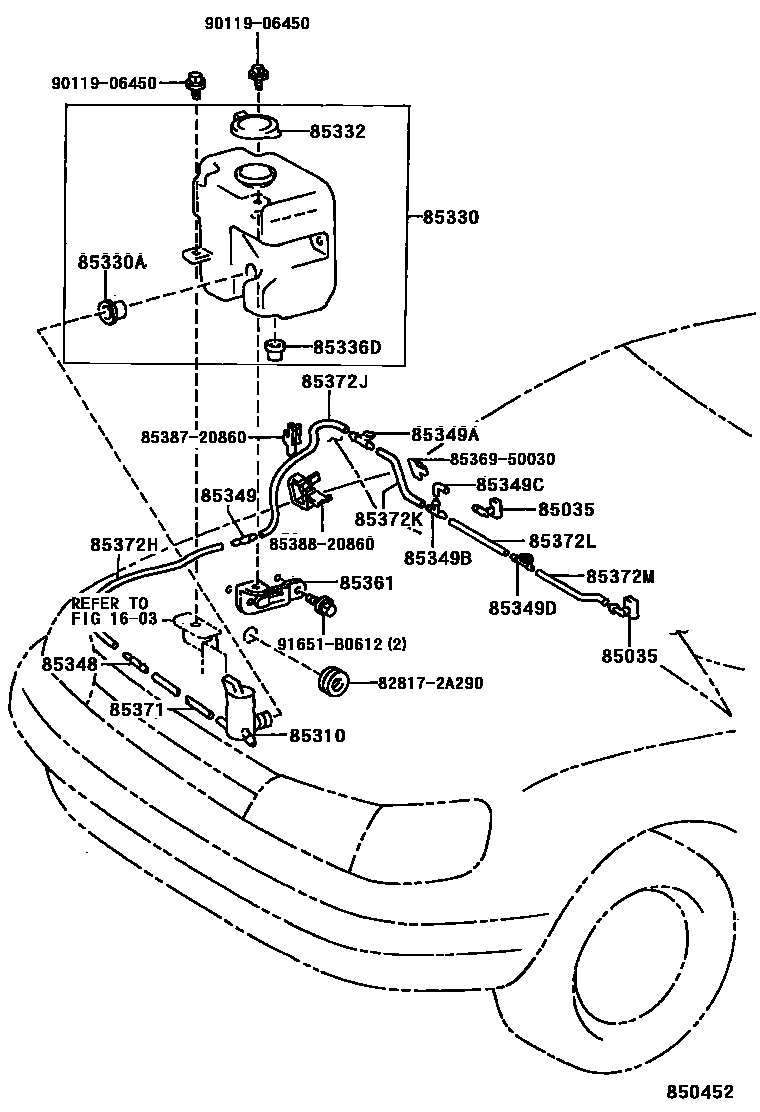

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

85035NOZZLE SUB-ASSY, WASHER

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

85330JAR ASSY, WINDSHIELD WASHER

85330ABUSH, WINDSHIELD WASHER JAR

85332CAP, WINDSHIELD WASHER JAR

85336DPACKING, WINDSHIELD WASHER JAR

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

85349BJOINT, WINDSHIELD WASHER HOSE, NO.3

85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4

85349DJOINT, WINDSHIELD WASHER HOSE, NO.4

85361HOLDER, WINDSHIELD WASHER

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7

828172A290PROTECTOR, WIRING HARNESS, NO.1

8536950030CLAMP

8538720860CLAMP NO.1 (FOR WINDSEIELD WASHER)

8538820860CLAMP NO.2 (FOR WINDSEIELD WASHER)

9011906450

91651B0612

26 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota CORONA (SED/LB)271

This section contains 28 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CORONA (SED/LB)271. Key components include: RADIATOR & WATER OUTLET, NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
