METER

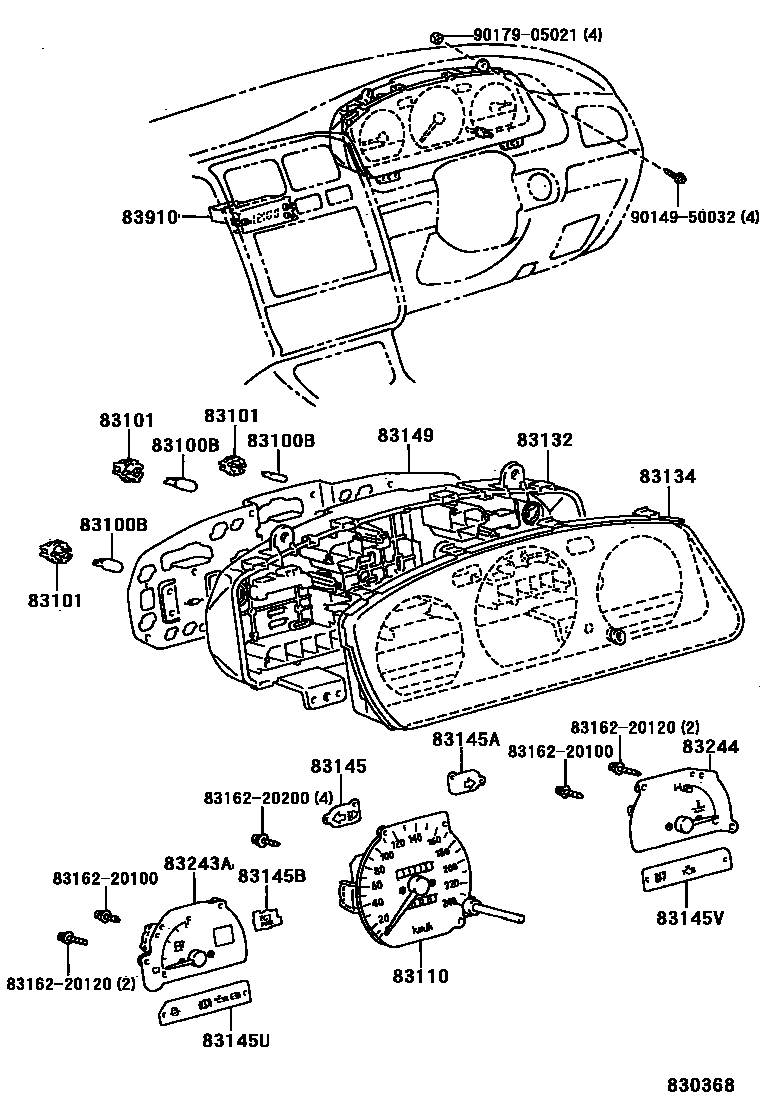

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main83109-24030×3i199607

12V3.4W W(GREEN CAP)

main84999-30040×7i199711

14V 1.4W,W(SOCKET),FOR INDICATOR LAMP

main90981-11018×9i199606

12V 1.2W W/O SOCKET; 12V 1.2W W/O SOCKET,PHILIPPINES SPEC

main99132-12034×3i199607

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×9i199203-199402

BULB:12V 1.4W; INDONESIA SPEC,BLUB:12V 1.4W

main83101-20040×3i199606-199607

BULB:12V 3.4W

main83101-20070×3i199203-199402

INDONESIA SPEC,BLUB:12V 3.4W,G.CAP

83110SPEEDOMETER ASSY

main83110-2D290i199203-199402

MPH/KM

main83110-2D300i199203-199402

main83110-2D320i199203-199402

main83110-2D330i199203-199402

MPH/KM,W(TACHOMETER)

main83110-2D340i199203-199402

MPH/KM,W(TACHOMETER)

main83110-2D350i199203-199402

KM,W(TACHOMETER)

main83110-2D360i199402-199606

main83110-2D370i199203-199402

INDONESIA SPEC

main83110-2D610i199402-199607

MPH/KM,W(TACHOMETER)

main83110-2D640i199402-199606

KM,W(TACHOMETER)

main83110-2D670i199402-199601

83132CASE, COMBINATION METER

main83132-20620i199203-199606

main83132-20660i199203-199402

KM,W(TACHOMETER) OR MPH/KM,W(TACHOMETER)

main83132-2D060i199606-199711

INDONESIA SPEC

main83132-2D080i199402-199606

KM,W(TACHOMETER)

83134COVER, COMBINATION METER, NO.1

main83134-20180i199203-199606

main83134-20240i199203-199402

KM,W(TACHOMETER) OR MPH/KM,W(TACHOMETER)

main83134-20260i199402-199606

KM,W(TACHOMETER)

83145LENS, METER, NO.1

main83145-2D640i199311-199606

main83146-20520i199203-199311

83145ALENS, METER, NO.2

main83145-2D620i199607

main83146-20500i199203-199311

83145BLENS, METER, NO.3

main83145-2D700i199311-199402

KM,W(TACHOMETER) OR MPH/KM,W(TACHOMETER)

main83146-20300i199203-199606

main83146-20680i199203-199311

KM,W(TACHOMETER) OR MPH/KM,W(TACHOMETER)

83145ULENS, METER, NO.9

main83145-2A440i199311-199606

main83146-20100i199203-199311

83145VLENS, METER, NO.10

main83145-2A560i199311-199606

main83146-20280i199203-199311

main83146-20380i199203-199209

CKD PACKAGE

83149PLATE, METER CIRCUIT

main83149-20140i199203-199606

main83149-20340i199203-199606

main83149-20360i199203-199402

KM,W(TACHOMETER) OR MPH/KM,W(TACHOMETER)

main83149-20580i199203-199601

main83149-20680i199203-199209

CKD PACKAGE

main83861-20260i199606-199711

INDONESIA SPEC

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-20600i199203-199606

main83243-20620i199203-199209

CKD PACKAGE

main83243-20700i199203-199402

KM,W(TACHOMETER) OR MPH/KM,W(TACHOMETER)

main83243-20860i199203-199402

main83243-2A340i199301-199402

HOT S LANK PACKAGE

main83243-2B820i199203-199209

CKD PACKAGE

main83243-2D100i199402-199606

KM,W(TACHOMETER)

main83243-2D120i199402-199601

main83243-2D140i199402

HOT S LANK PACKAGE

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-20520i199203-199606

83910CLOCK ASSY

main83910-20640i199203-199606

8316220100CASE, COMBINATION METER MIRROR, NO.2

main83162-20100

8316220120CASE, COMBINATION METER MIRROR, NO.2

main83162-20120

8316220200CASE, COMBINATION METER MIRROR, NO.2

main83162-20200

9014950032

main90149-50032

9017905021

main90179-05021

19 parts on this diagram · 4 diagrams in section
