Toyota CORONA (SED/LB)271 — HEADLAMP
53271ABRACKET, HEADLAMP MOUNTING
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
81125CORD, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81144CCOVER, HEADLAMP SOCKET
81144DCAP, HEADLAMP LOCKING
81150HEADLAMP ASSY, LH
81175UNIT ASSY, HEADLAMP, LH
81610FBULB(FOR CLEARANCE LAMP)
8113722530PROTECTOR, HEADLAMP, NO.2 RH
9007510011
9011906595
9016850050
9018906111
15 parts on this diagram · 1 diagram in section

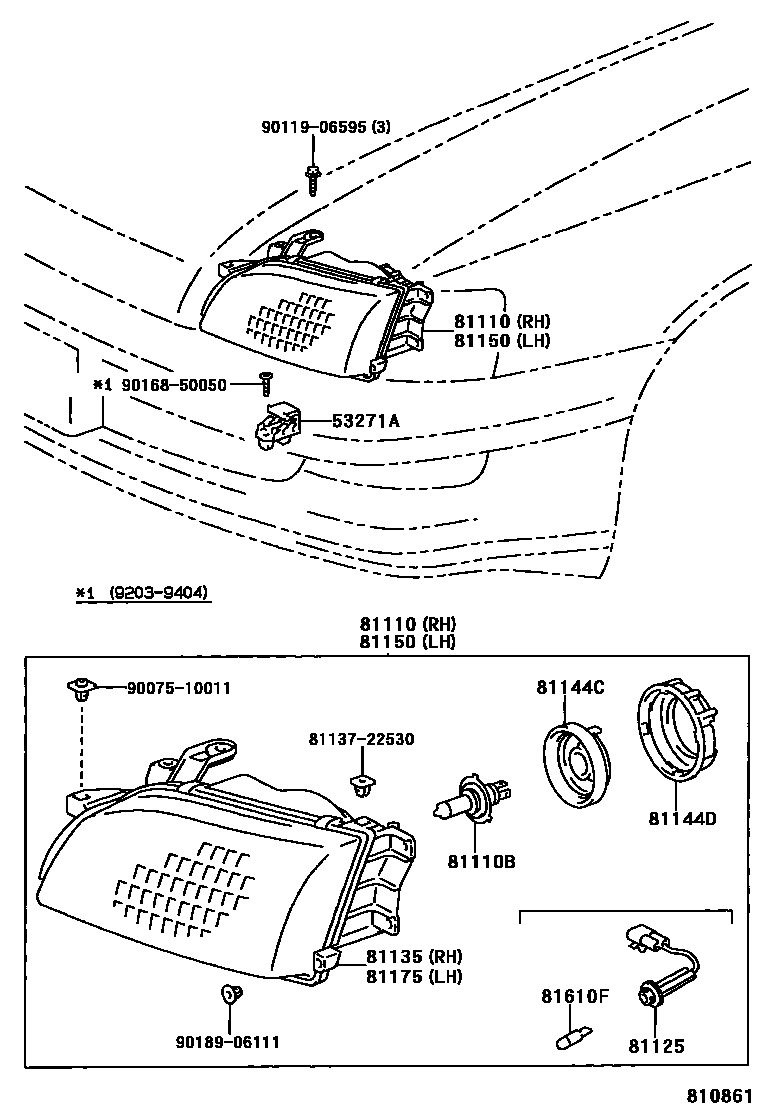

HEADLAMP for Toyota CORONA (SED/LB)271
This section contains 15 genuine Toyota parts for the HEADLAMP system of the Toyota CORONA (SED/LB)271. Key components include: BRACKET, HEADLAMP MOUNTING, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), CORD, HEADLAMP, UNIT ASSY, HEADLAMP, RH.
