BACK DOOR PANEL & GLASS

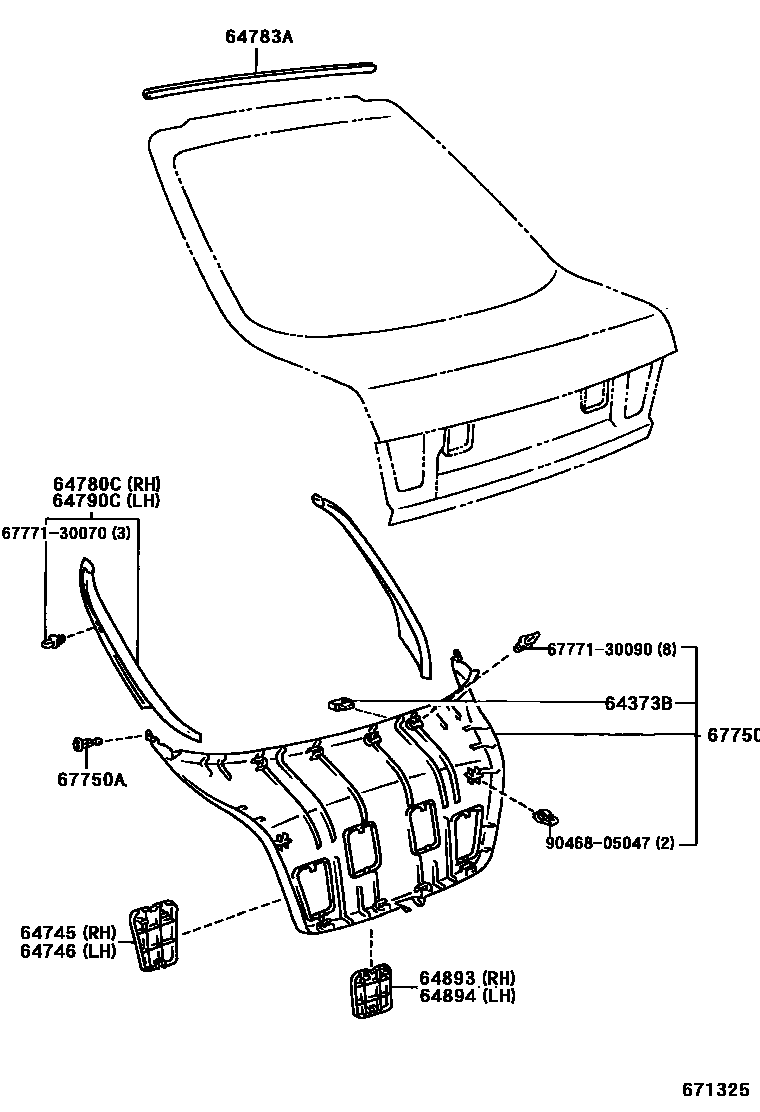

Parts diagram
64373BSTOPPER, PACKAGE TRAY TRIM
main64373-20080i199203-199606
64745COVER, REAR COMBINATION LAMP SERVICE, RH
main64745-20060-B0i199402-199606
SHADOW GRAY,TRIM1#
sub64745-20060
main64745-20060-C0i199203-199402
BLACK,TRIM2#
sub64745-20060
64746COVER, REAR COMBINATION LAMP SERVICE, LH
main64746-20060-B0i199402-199606
SHADOW GRAY,TRIM1#
sub64746-20060
main64746-20060-C0i199203-199402
BLACK,TRIM2#
sub64746-20060
64780CPANEL ASSY, BACK DOOR TRIM, RH
main64780-20030-B0i199402-199606
SHADOW GRAY,TRIM1#
sub64780-20030
main64780-20030-C0i199203-199402
BLACK,TRIM2#
sub64780-20030
64783ATRIM, BACK WINDOW PANEL, UPPER
main64783-20060i199203-199606
64790CPANEL ASSY, BACK DOOR TRIM, LH
main64790-20030-B0i199402-199606
SHADOW GRAY,TRIM1#
sub64790-20030
main64790-20030-C0i199203-199402
BLACK,TRIM2#
sub64790-20030
64893COVER, BACK DOOR TRIM, UPPER, RH
main64893-20010-B0i199402-199606
SHADOW GRAY,TRIM1#
sub64893-20010
main64893-20010-C0i199203-199402
BLACK,TRIM2#
sub64893-20010
64894COVER, BACK DOOR TRIM, UPPER, LH
main64894-20010-B0i199402-199606
SHADOW GRAY,TRIM1#
sub64894-20010
main64894-20010-C0i199203-199402
BLACK,TRIM2#
sub64894-20010
67750BOARD ASSY, BACK DOOR TRIM
main67750-20010-B0i199402-199606
W(REAR SPOILER),SHADOW GRAY,TRIM1#
main67750-20010-C0i199203-199402
BLACK,TRIM2#
main67750-20020-B0i199402-199606
SHADOW GRAY,TRIM1#
main67750-20020-C0i199203-199402
NEW ZEALAND SPEC,BLACK,TRIM2#
67750ACLIP(FOR BACK DOOR TRIM)
main90467-07041-C0i199402-199606
BLACK,TRIM1#
sub90467-07041
main90467-07041-C0i199203-199402
BLACK,TRIM2#
sub90467-07041
6777130070WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30070
6777130090WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30090
9046805047
main90468-05047

13 parts on this diagram · 2 diagrams in section
