PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

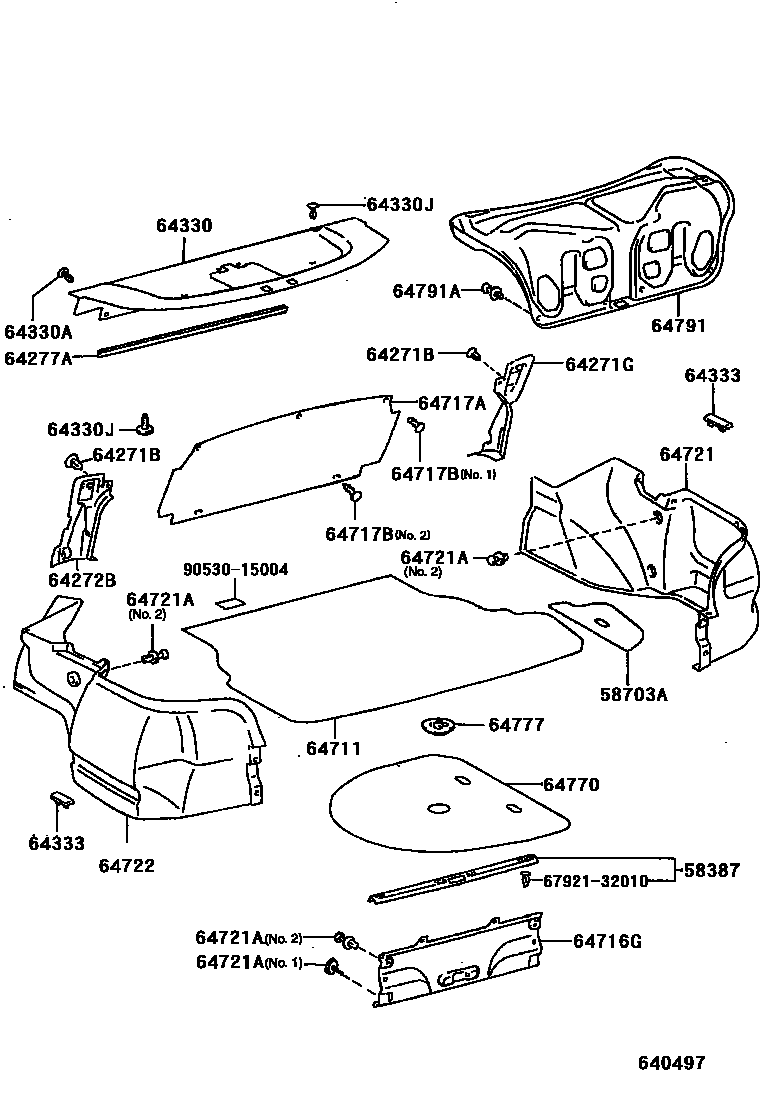

Parts diagram
58387PLATE, REAR FLOOR FINISH
main58387-20020-C0i199203-199305
BLACK,TRIM2#,8#
sub58387-20021
main58387-20020-C0i199203-199305
BLACK,TRIM2#,4#,8#
sub58387-20021
main58387-20021-C0i199305-199402
BLACK,TRIM2#,8#
main58387-20021-C0i199402-199607
BLACK,TRIM1#,8#
main58387-20021-C0i199607
BLACK,TRIM1#
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
main58703-20160i199203-199607
64271BCLIP(FOR ROOM PARTITION BOARD)
main90467-10018i199203-199607
64271GBOARD, ROOM PARTITION, RH
main64271-20240-C0i199402-199607
BLACK,TRIM1#,8#
main64271-20240-C0i199203-199402
BLACK,TRIM2#,8#
main64271-20240-C0i199607
BLACK,TRIM1#
main64271-20240-E0i199203-199305
ANTELOPE,TRIM4#
64272BBOARD, ROOM PARTITION, LH
main64272-20040-C0i199402-199607
BLACK,TRIM1#,8#
main64272-20040-C0i199203-199402
BLACK,TRIM2#,8#
main64272-20040-C0i199607
BLACK,TRIM1#
main64272-20040-E0i199203-199305
ANTELOPE,TRIM4#
64277AMOULDING, ROOM PARTITION TRIM
main64277-20040-C0i199402-199607
BLACK,TRIM1#,8#
main64277-20040-C0i199203-199402
BLACK,TRIM2#,8#
main64277-20040-C0i199607
BLACK,TRIM1#
main64277-20040-E0i199203-199305
ANTELOPE,TRIM4#
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-2B550-B0i199402
SHADOW GRAY,TRIM1#
sub64330-2B550
main64330-2B550-B0i199402-199601
W(SPLIT REAR SEAT),SHADOW GRAY,TRIM1#
sub64330-2B550
main64330-2B550-C0i199203-199402
W(SPLIT REAR SEAT),BLACK,TRIM2#
sub64330-2B550
main64330-2B550-C0i199203-199402
BLACK,TRIM2#
sub64330-2B550
main64330-2B550-C0i199203-199209
W/O(HIGH MOUNT STOP LAMP) & W(SPLIT REAR SEAT),BLACK,TRIM2#
sub64330-2B550
main64330-2B550-E0i199203-199305
ANTELOPE,TRIM4#
sub64330-2B550
main64330-2B550-J1i199203-199601
W(SPLIT REAR SEAT),DK. BLUE,TRIM8#
sub64330-2B550
main64330-2B550-J1i199203-199209
W/O(HIGH MOUNT STOP LAMP) & W(SPLIT REAR SEAT),DK. BLUE,TRIM8#
sub64330-2B550
main64330-2B550-J1i199203-199607
DK. BLUE,TRIM8#
sub64330-2B550
main64330-2B570i199601-199711
THAILAND SPEC & W(FIXED REAR SEAT)
main64330-2B570-B0i199409-199607
THAILAND SPEC & W(FIXED REAR SEAT),SHADOW GRAY,TRIM1#
sub64330-2B570
main64330-2B570-B0i199402-199601
SHADOW GRAY,TRIM1#
sub64330-2B570
main64330-2B570-C0i199203-199402
BLACK,TRIM2#
sub64330-2B570
main64330-2B570-C0i199203-199209
W/O(HIGH MOUNT STOP LAMP),BLACK,TRIM2#
sub64330-2B570
main64330-2B570-J1i199409-199607
THAILAND SPEC & W(FIXED REAR SEAT),DK. BLUE,TRIM8#
sub64330-2B570
main64330-2B570-J1i199203-199209
W/O(HIGH MOUNT STOP LAMP),DK. BLUE,TRIM8#
sub64330-2B570
main64330-2B570-J1i199203-199601
DK. BLUE,TRIM8#
sub64330-2B570
main64330-2B580i199601-199711
THAILAND SPEC & W(FIXD REAR SEAT & HIGH MOUNT STOP LAMP)
main64330-2B580-B0i199402-199601
W(HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#
sub64330-2B580
main64330-2B580-B0i199409-199607
THAILAND SPEC & W(FIXD REAR SEAT & HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#
sub64330-2B580
main64330-2B580-B0i199402-199606
SHADOW GRAY,TRIM1#
sub64330-2B580
main64330-2B580-C0i199203-199402
W(HIGH MOUNT STOP LAMP),BLACK,TRIM2#
sub64330-2B580
main64330-2B580-C0i199203-199402
BLACK,TRIM2#
sub64330-2B580
main64330-2B580-J1i199203-199606
DK. BLUE,TRIM8#
sub64330-2B580
main64330-2B580-J1i199409-199607
THAILAND SPEC & W(FIXD REAR SEAT & HIGH MOUNT STOP LAMP),DK. BLUE,TRIM8#
sub64330-2B580
main64330-2B580-J1i199203-199601
W(HIGH MOUNT STOP LAMP),DK. BLUE,TRIM8#
sub64330-2B580
main64330-2B590-B0i199402
W(HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#
sub64330-2B590
main64330-2B590-B0i199402-199606
W(SPLIT REAR SEAT),SHADOW GRAY,TRIM1#
sub64330-2B590
main64330-2B590-B0i199402-199601
W(SPRIT REAR SEAT & HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#
sub64330-2B590
main64330-2B590-C0i199203-199402
W(SPLIT REAR SEAT),BLACK,TRIM2#
sub64330-2B590
main64330-2B590-C0i199208-199209
BLACK,TRIM2#
sub64330-2B590
main64330-2B590-C0i199203-199402
W(HIGH MOUNT STOP LAMP),BLACK,TRIM2#
sub64330-2B590
main64330-2B590-C0i199203-199402
W(SPLIT REAR SEAT & HIGH MOUNT STOP LAMP),BLACK,TRIM2#
sub64330-2B590
main64330-2B590-C0i199209-199402
W(SPRIT REAR SEAT & HIGH MOUNT STOP LAMP),BLACK,TRIM2#
sub64330-2B590
main64330-2B590-E0i199203-199305
W(HIGH MOUNT STOP LAMP),ANTELOPE,TRIM4#
sub64330-2B590
main64330-2B590-J1i199203-199606
W(SPLIT REAR SEAT),DK. BLUE,TRIM8#
sub64330-2B590
main64330-2B590-J1i199203-199402
W(SPLIT REAR SEAT & HIGH MOUNT STOP LAMP),DK. BLUE,TRIM8#
sub64330-2B590
main64330-2B590-J1i199203-199607
W(HIGH MOUNT STOP LAMP),DK. BLUE,TRIM8#
sub64330-2B590
main64330-2B590-J1i199208-199209
DK. BLUE,TRIM8#
sub64330-2B590
main64330-2B590-J1i199209-199601
W(SPRIT REAR SEAT & HIGH MOUNT STOP LAMP),DK. BLUE,TRIM8#
sub64330-2B590
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-07090-B0i199402
SHADOW GRAY,TRIM1#
sub90467-07090
sub90467-07207
main90467-07090-C4i199402-199607
BLACK,TRIM1#,8#
sub90467-07090
sub90467-07207
main90467-07090-C4i199203-199402
BLACK,TRIM2#,8#
sub90467-07090
sub90467-07207
main90467-07090-C4i199203-199402
BLACK,TRIM2#
sub90467-07090
sub90467-07207
main90467-07090-C4i199402-199607
BLACK,TRIM11,8#
sub90467-07090
sub90467-07207
main90467-07090-C4i199607-199711
BLACK,TRIM11
sub90467-07090
sub90467-07207
main90467-07090-E0i199203-199305
ANTELOPE,TRIM4#
sub90467-07090
sub90467-07207
main90467-07090-J0i199203-199607
DK.BLUE,TRIM8#
sub90467-07090
sub90467-07207
main90467-07090-J0i199402-199607
DK.BLUE,TRIM81
sub90467-07090
sub90467-07207
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-07056-C0i199203-199402
BLACK,TRIM2#
sub90467-07056
main90467-07056-E0i199203-199305
ANTELOPE,TRIM4#
sub90467-07056
main90467-07056-J0i199203-199607
DK.BLUE,TRIM8#
sub90467-07056
main90467-07056-J0i199402-199601
W(SPLIT REAR SEAT),DK.BLUE,TRIM8#
sub90467-07056
main90467-07056-P0i199402-199601
W(SPLIT REAR SEAT),SHADOW GRAY,TRIM1#
sub90467-07056
main90467-07056-P0i199402
SHADOW GRAY,TRIM1#
sub90467-07056
main90467-07090-B0i199402-199601
SHADOW GRAY,TRIM1#
sub90467-07090
sub90467-07207
main90467-07090-B0i199409-199711
THAILAND SPEC & W(FIXED REAR SEAT),SHADOW GRAY,TRIM1#
sub90467-07090
sub90467-07207
main90467-07090-C4i199409-199607
THAILAND SPEC & W(FIXED REAR SEAT),BLACK,TRIM11,8#
sub90467-07090
sub90467-07207
main90467-07090-C4i199409-199607
THAILAND SPEC & W(FIXED REAR SEAT),BLACK,TRIM1#,8#
sub90467-07090
sub90467-07207
main90467-07090-C4i199402-199601
BLACK,TRIM1#,8#
sub90467-07090
sub90467-07207
main90467-07090-C4i199607-199711
THAILAND SPEC & W(FIXED REAR SEAT),BLACK,TRIM11
sub90467-07090
sub90467-07207
main90467-07090-J0i199409-199607
THAILAND SPEC & W(FIXED REAR SEAT),DK.BLUE,TRIM81
sub90467-07090
sub90467-07207
main90467-07090-J0i199402-199601
DK.BLUE,TRIM8#
sub90467-07090
sub90467-07207
main90467-07090-J0i199409-199607
THAILAND SPEC & W(FIXED REAR SEAT),DK.BLUE,TRIM8#
sub90467-07090
sub90467-07207
64333COVER, PACKAGE TRAY TRIM, SIDE
main64333-20090i199601-199711
W(FIXED REAR SEAT)
main64333-20090-B0i199409-199607
W(FIXED REAR SEAT),SHADOW GRAY,TRIM1#
main64333-20090-B0i199409-199601
SHADOW GRAY,TRIM1#
main64333-20090-C1i199203-199402
W/O(REAR SEAT BELT),BLACK,TRIM2#
main64333-20090-C1i199203-199402
BLACK,TRIM2#
main64333-20090-J1i199203-199601
DK.BLUE,TRIM8#
main64333-20090-J1i199203-199402
W/O(REAR SEAT BELT),DK.BLUE,TRIM8#
main64333-20090-J1i199409-199607
W(FIXED REAR SEAT),DK.BLUE,TRIM8#
main64333-20110-B0i199402-199409
SHADOW GRAY,TRIM1#
sub64333-20110
main64333-20110-B0i199409-199601
W(SPLIT REAR SEAT),SHADOW GRAY,TRIM1#
sub64333-20110
main64333-20110-C0i199203-199402
W(SPLIT REAR SEAT) & W/O(REAR SEAT BELT),BLACK,TRIM2#
sub64333-20110
main64333-20110-C0i199203-199402
BLACK,TRIM2#
sub64333-20110
main64333-20110-C0i199203-199402
W(SPLIT REAR SEAT),BLACK,TRIM2#
sub64333-20110
main64333-20110-E0i199203-199305
ANTELOPE,TRIM4#
sub64333-20110
main64333-20110-J0i199203-199601
W(SPLIT REAR SEAT),DK.BLUE,TRIM8#
sub64333-20110
main64333-20110-J0i199203-199607
DK.BLUE,TRIM8#
sub64333-20110
main64333-20110-J0i199203-199402
W(SPLIT REAR SEAT) & W/O(REAR SEAT BELT),DK.BLUE,TRIM8#
sub64333-20110
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-20830i199601-199711
W(FIXED REAR SEAT)
main64711-20830-C1i199203-199402
BLACK,TRIM2#,8#
main64711-20830-C1i199409-199607
W(FIXED REAR SEAT),BLACK,TRIM1#,8#
main64711-20830-C1i199409-199606
BLACK,TRIM1#,8#
main64711-20840-C1i199203-199402
BLACK,TRIM2#,8#
main64711-20840-C1i199203-199305
BLACK,TRIM2#,4#,8#
main64711-20860-C1i199409-199606
W(SPLIT REAR SEAT),BLACK,TRIM1#,8#
main64711-20860-C1i199402-199607
BLACK,TRIM1#,8#
main64711-20860-C1i199203-199402
W(SPLIT REAR SEAT),BLACK,TRIM2#,8#
main64711-20860-C1i199607
BLACK,TRIM1#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-20450-C1i199203-199305
BLACK,TRIM2#,4#,8#
main64716-20450-C1i199203-199402
BLACK,TRIM2#,8#
main64716-20450-C1i199402-199607
BLACK,TRIM1#,8#
main64716-20450-C1i199607
BLACK,TRIM1#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-20280-C1i199203-199305
BLACK,TRIM2#,8#
main64717-20310i199601-199711
THAILAND SPEC & W(FIXED REAR SEAT)
main64717-20310-C0i199409-199607
THAILAND SPEC & W(FIXED REAR SEAT),BLACK,TRIM1#,8#
main64717-20310-C0i199305-199402
BLACK,TRIM2#,8#
main64717-20310-C0i199402-199606
BLACK,TRIM1#,8#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
main90467-07090-B0i199409-199711
THAILAND SPEC & W(FIXED REAR SEAT),SHADOW GRAY,TRIM1#,NO.1
sub90467-07090
sub90467-07207
main90467-07090-B0i199402-199606
SHADOW GRAY,TRIM1#,NO.1
sub90467-07090
sub90467-07207
main90467-07090-C4i199402-199606
BLACK,TRIM1#,8#,NO.1
sub90467-07090
sub90467-07207
main90467-07090-C4i199409-199607
THAILAND SPEC & W(FIXED REAR SEAT),BLACK,TRIM11,8#,NO.1
sub90467-07090
sub90467-07207
main90467-07090-C4i199607-199711
THAILAND SPEC & W(FIXED REAR SEAT),BLACK,TRIM11,NO.1
sub90467-07090
sub90467-07207
main90467-07090-C4i199409-199607
THAILAND SPEC & W(FIXED REAR SEAT),BLACK,TRIM1#,8#,NO.1
sub90467-07090
sub90467-07207
main90467-07090-C4i199203-199402
BLACK,TRIM2#,8#,NO.1
sub90467-07090
sub90467-07207
main90467-07090-J0i199409-199607
THAILAND SPEC & W(FIXED REAR SEAT),DK.BLUE,TRIM81,NO.1
sub90467-07090
sub90467-07207
main90467-07090-J0i199409-199607
THAILAND SPEC & W(FIXED REAR SEAT),DK.BLUE,TRIM8#,NO.1
sub90467-07090
sub90467-07207
main90467-07090-J0i199203-199606
DK.BLUE,TRIM8#,NO.1
sub90467-07090
sub90467-07207
main90467-09066i199601-199711
THAILAND SPEC & W(FIXED REAR SEAT),NO.2
main90467-09066-22i199203-199402
BLACK,TRIM2#,8#,NO.2
sub90467-09066
main90467-09066-22i199409-199607
THAILAND SPEC & W(FIXED REAR SEAT),BLACK,TRIM1#,8#,NO.2
sub90467-09066
main90467-09066-22i199402-199606
BLACK,TRIM1#,8#,NO.2
sub90467-09066
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-20260-C1i199203-199402
BLACK,TRIM2#,8#
main64721-20260-C1i199402-199607
BLACK,TRIM1#,8#
main64721-20260-C1i199607
BLACK,TRIM1#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-06150-C0i199402-199512
BLACK,TRIM1#,8#,N0.2
main90467-06150-C0i199203-199305
BLACK,TRIM2#,4#,8#,NO.2
main90467-06150-C0i199203-199402
BLACK,TRIM2#,8#,NO.2
main90467-06150-C0i199409-199512
BLACK,TRIM1#,8#,NO.2
main90467-07042-C0i199512-199607
BLACK,TRIM1#,8#,NO.2
sub90467-07042
sub90467-06175
main90467-07042-C0i199607
BLACK,TRIM1#,NO.2
sub90467-07042
sub90467-06175
main90467-08056-C0i199205-199305
BLACK,TRIM2#,4#,8#,NO.1
sub90467-08056
main90467-08056-C0i199402-199607
BLACK,TRIM1#,8#,NO.1
sub90467-08056
main90467-08056-C0i199607
BLACK,TRIM1#,NO.1
sub90467-08056
main90467-08056-C0i199205-199402
BLACK,TRIM2#,8#,NO.1
sub90467-08056
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-20230-C1i199203-199305
BLACK,TRIM2#,4#,8#
main64722-20230-C1i199203-199402
BLACK,TRIM2#,8#
main64722-20230-C1i199402-199607
BLACK,TRIM1#,8#
main64722-20230-C1i199607
BLACK,TRIM1#
64770COVER ASSY, SPARE WHEEL
main64770-20190i199203-199607
64777CLAMP, SPARE WHEEL COVER
main64777-32030i199203-199607
64791COVER, BACK DOOR TRIM
main64791-20050-C0i199203-199402
BLACK,TRIM2#,8#
main64791-20050-C0i199402-199411
BLACK,TRIM1#,8#
64791ACLIP(FOR BACK DOOR TRIM)
main90467-06150-C0i199203-199402
BLACK,TRIM2#,8#
main90467-06150-C0i199402-199411
BLACK,TRIM1#,8#
6792132010RETAINER, FRONT DOOR SCUFF PLATE
main67921-32010
9053015004
main90530-15004

23 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
