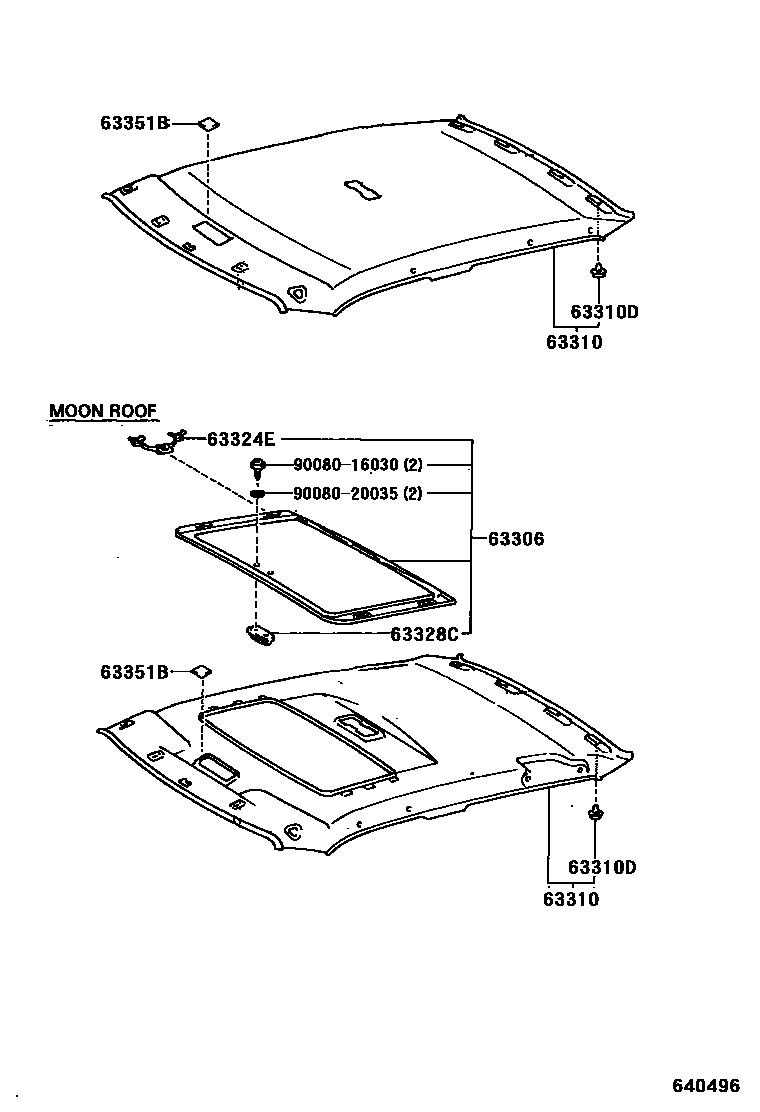

ROOF HEADLINING & SILENCER PAD

63306TRIM SUB-ASSY, SUNSHADE

main63306-0W010-B0iAT190,CT190..JPP;ST191..JPP..SED..GL; ST191..JPP..LB199203-199402

GRAY,TRIM2#; GRAY,TRIM2#,8#

main63306-0W010-E0iAT190,ST191..JPP..RHD..SED..GL199203-199211

ANTEROPE,TRIM4#

63310HEADLINING ASSY, ROOF

main63310-2B180-B0iAT190,ST191..JPP..XL199402-199606

GRAY,TRIM1#,8#

main63310-2B280-B0iAT190,ST191..JPP199607

GRAY,TRIM1#

main63310-2B280-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main63310-2B330-B0iAT190,CT190..JPP;ST191..JPP..SED..GL199402-199607

W(MOON ROOF),GRAY,TRIM1#,8#

main63310-2B330-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

W(MOON ROOF),ANTELOPE,TRIM4#

main63310-2B340-B0iST191..JPP..LB199402-199606

GRAY,TRIM1#

main63310-2B360-B0iST191..JPP..LB199203-199402

W(MOON ROOF),GRAY,TRIM2#

63310DCLIP, ROOF HEADLINING

main90467-08174×4iST191..JPP..LB199203-199606

main90467-09126×4iAT190,CT190,ST191..JPP..SED199203-199606

63324ESPRING, SUNSHADE LOCK

main63324-05010×4iST191..JPP..GL;AT190,CT190..JPP199203-199402

63328CKNOB, SUNSHADE TRIM

main63328-0W010-B0iAT190,CT190..JPP;ST191..JPP..SED..GL; ST191..JPP..LB199203-199402

GRAY,TRIM2#; GRAY,TRIM2#,8#

main63328-0W010-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

63351BPAD, ROOF HEADLINING

main63351-20040iAT190,ST191..JPP199606-199607

9008016030

main90080-16030

9008020035

main90080-20035

8 parts on this diagram · 1 diagram in section
