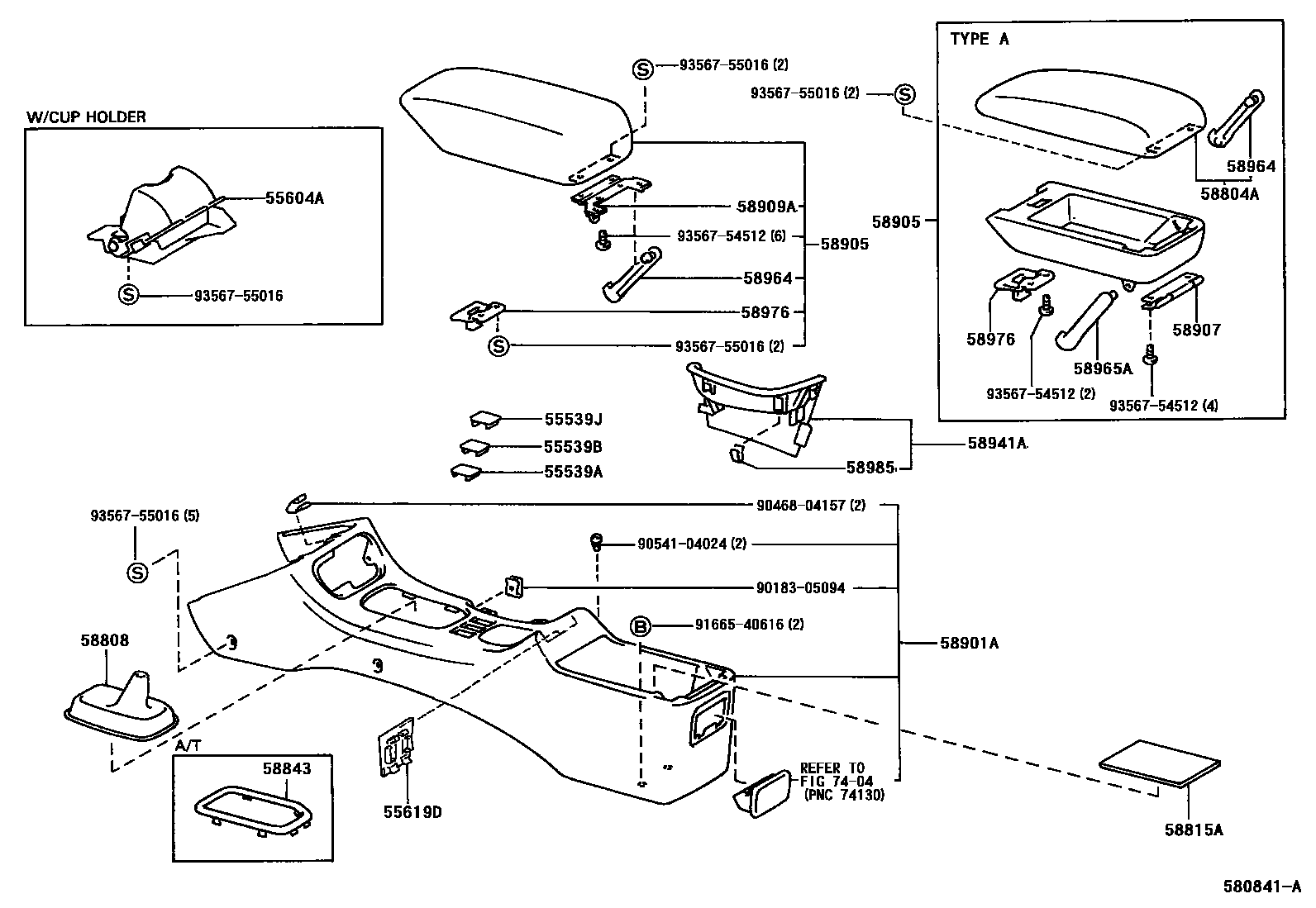

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-12120-B0iAT190,CT190,ST191..JPP199402

SHADOW GRAY,TRIM1#

main55539-12120-C0iAT190,CT190,ST191..JPP199203-199402

BLACK,TRIM2#

main55539-12120-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main55539-12120-J0iAT190,CT190,ST191..JPP..SED199203-199607

DARK BLUE,TRIM8#

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-12120-B0iAT190,CT190,ST191..JPP199402

SHADOW GRAY,TRIM1#

main55539-12120-C0iAT190,CT190,ST191..JPP199203-199402

BLACK,TRIM2#

main55539-12120-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main55539-12120-J0iAT190,CT190,ST191..JPP..SED199203-199607

DARK BLUE,TRIM8#

55539JCOVER, SPARE SWITCH HOLE

main55539-12120-B0iAT190,CT190,ST191..JPP199402

SHADOW GRAY,TRIM1#

main55539-12120-C0iAT190,CT190,ST191..JPP199203-199402

BLACK,TRIM2#

main55539-12120-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main55539-12120-J0iAT190,CT190,ST191..JPP..SED199203-199607

DARK BLUE,TRIM8#

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-20050-B1iAT190,CT190,ST191..JPP199402

SHADOW GRAY,TRIM1#

main55604-20050-C0iAT190,CT190,ST191..JPP199203-199402

BLACK,TRIM2#

main55604-20050-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main55604-20050-J0iAT190,CT190,ST191..JPP..SED199203-199607

DARK BLUE,TRIM8#

55619DCOVER, CUP HOLDER HOLE

main55619-20010-B1iAT190,CT190,ST191..JPP199402

SHADOW GRAY,TRIM1#

main55619-20010-C0iAT190,CT190,ST191..JPP199203-199402

BLACK,TRIM2#

main55619-20010-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main55619-20010-J0iAT190,CT190,ST191..JPP..SED199203-199607

DK.BLUE,TRIM8#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-20110-B2iAT190,CT190,ST191..JPP199402-199805

SHADOW GRAY,TRIM1#

main58804-20110-C0iAT190,CT190,ST191..JPP199203-199402

BLACK,TRIM2#

main58804-20110-E1iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main58804-20110-J0iAT190,CT190,ST191..JPP..SED199203-199607

DK.BLUE,TRIM8#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20100-C0iAT190,ST191..JPP..RHD..SED..MTM199211-199402

BLACK,TRIM2#,8#

main58808-20100-C0iAT190,ST191..JPP..RHD..MTM199203-199402

BLACK,TRIM2#

main58808-20100-C0iST191..JPP..LB..MTM199402-199711

BLACK,TRIM1#

main58808-20100-C0iAT190,ST191..JPP..RHD..SED..MTM199402-199607

BLACK,TRIM1#,8#

main58808-20100-E0iAT190,ST191..JPP..RHD..SED..MTM..GL199203-199305

ANTELOPE,TRIM4#

main58808-20100-J0iAT190,ST191..JPP..RHD..SED..MTM199203-199305

DK.BLUE,TRIM8#

main58808-20110-C0iAT190,ST191..JPP..LHD..MTM199402-199607

BLACK,TRIM1#,8#

main58808-20110-C0iAT190,ST191..JPP..LHD..MTM199203-199211

BLACK,TRIM2#

main58808-20110-C0iAT190,ST191..JPP..LHD..MTM199211-199402

BLACK,TRIM2#,8#

main58808-20110-C0iST191..JPP..LHD..MTM199607

BLACK,TRIM1#

main58808-20110-J0iAT190,ST191..JPP..LHD..MTM199203-199211

DK.BLUE,TRIM8#

58815ACARPET, CONSOLE BOX

main58815-20030-C0iAT190,ST191..JPP..RHD199203-199402

BLACK,TRIM2#

main58815-20030-C0iAT190,ST191..JPP..RHD199402-199711

BLACK,TRIM1#

main58815-20030-C0iAT190,ST191..JPP..RHD..SED199402-199607

BLACK,TRIM1#,8#

main58815-20030-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main58815-20030-J0iAT190,ST191..JPP..RHD..SED199203-199402

DK.BLUE,TRIM8#

58843BEZEL, SHIFTING HOLE

main58843-20060iAT190,ST191..JPP..RHD..ATM199203-199711

main58843-20080iAT190,CT190,ST191..JPP..LHD..ATM199203

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-20120-B2iAT190,ST191..JPP..RHD199402-199711

SHADOW GRAY,TRIM1#

main58901-20120-C0iAT190,ST191..JPP..RHD199203-199305

BLACK,TRIM2#

main58901-20120-C1iAT190,ST191..JPP..RHD199305-199402

BLACK,TRIM2#

main58901-20120-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main58901-20120-J0iAT190,ST191..JPP..RHD..SED199203-199212

DK.BLUE,TRIM8#

main58901-20120-J1iAT190,ST191..JPP..RHD..SED199212-199607

DK. BLUE,TRIM8#

main58901-20130-B0iAT190,CT190,ST191..JPP..LHD199402-199805

SHADOW GRAY,TRIM1#

main58901-20130-C0iAT190,CT190,ST191..JPP..LHD199203-199212

BLACK,TRIM2#

main58901-20130-C1iAT190,CT190,ST191..JPP..LHD199212-199402

BLACK,TRIM2#

main58901-20130-J0iAT190,CT190,ST191..JPP..LHD199203-199212

DK.BLUE,TRIM8#

main58901-20130-J1iAT190,CT190,ST191..JPP..LHD199212-199607

DK. BLUE,TRIM8#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20170-B1iAT190,CT190,ST191..JPP199402-199805

SHADOW GRAY,TRIM1#

main58905-20170-C0iAT190,CT190,ST191..JPP199203-199402

BLACK,TRIM2#

main58905-20170-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main58905-20170-J0iAT190,CT190,ST191..JPP..SED199203-199607

DK.BLUE,TRIM8#

main58905-20180-B1iAT190,CT190,ST191..JPP199402-199805

W(CASSETTE CASE HOLDER),SHADOW GRAY,TRIM1#

main58905-20180-C1iAT190,CT190,ST191..JPP199203-199402

W(CASSETTE CASE HOLDER),BLACK,TRIM2#

main58905-20180-E1iAT190,ST191..JPP..RHD..SED..GL199203-199305

W(CASSETTE CASE HOLDER),ANTELOPE,TRIM4#

main58905-20180-J1iAT190,CT190,ST191..JPP..SED199203-199607

W(CASSETTE CASE HOLDER),DK.BLUE,TRIM8#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-20020iAT190,CT190,ST191..JPP199203-199607

58909ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58909-20030iAT190,CT190,ST191..JPP199203-199607

58941ACOVER, PARKING BRAKE HOLE

main58904-20030-B1iAT190,ST191..JPP..RHD199402-199711

SHADOW GRAY,TRIM1#

main58904-20030-C0iAT190,ST191..JPP..RHD199203-199402

BLACK,TRIM2#

main58904-20030-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main58904-20030-J0iAT190,ST191..JPP..RHD..SED199203-199607

DK.BLUE,TRIM8#

main58904-20040-B0iAT190,CT190,ST191..JPP..LHD199402

SHADOW GRAY,TRIM1#

main58904-20040-C0iAT190,CT190,ST191..JPP..LHD199203-199402

BLACK,TRIM2#

main58904-20040-J0iAT190,CT190,ST191..JPP..LHD199203-199607

DK.BLUE,TRIM8#

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-12040iAT190,ST191..JPP199203-199607

RH

main58964-12040iAT190,CT190,ST191..JPP199402-199606

main58965-12040iAT190,CT190,ST191..JPP199203-199607

LH

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58964-12040iAT190,CT190,ST191..JPP199203-199402

RH

main58965-12040iAT190,CT190,ST191..JPP199203-199402

LH

main58965-12040iAT190,CT190,ST191..JPP199402-199607

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20020iAT190,CT190,ST191..JPP199203-199607

58985RETAINER, CONSOLE BOX

main58985-20050iAT190,ST191..JPP199203-199607

7404ASH RECEPTACLE

→ Go to FIG 74-04

9018305094

main90183-05094

9046804157

main90468-04157

9054104024

main90541-04024

9166540616

main91665-40616

9356754512

main93567-54512

9356755016

main93567-55016

25 parts on this diagram · 1 diagram in section
