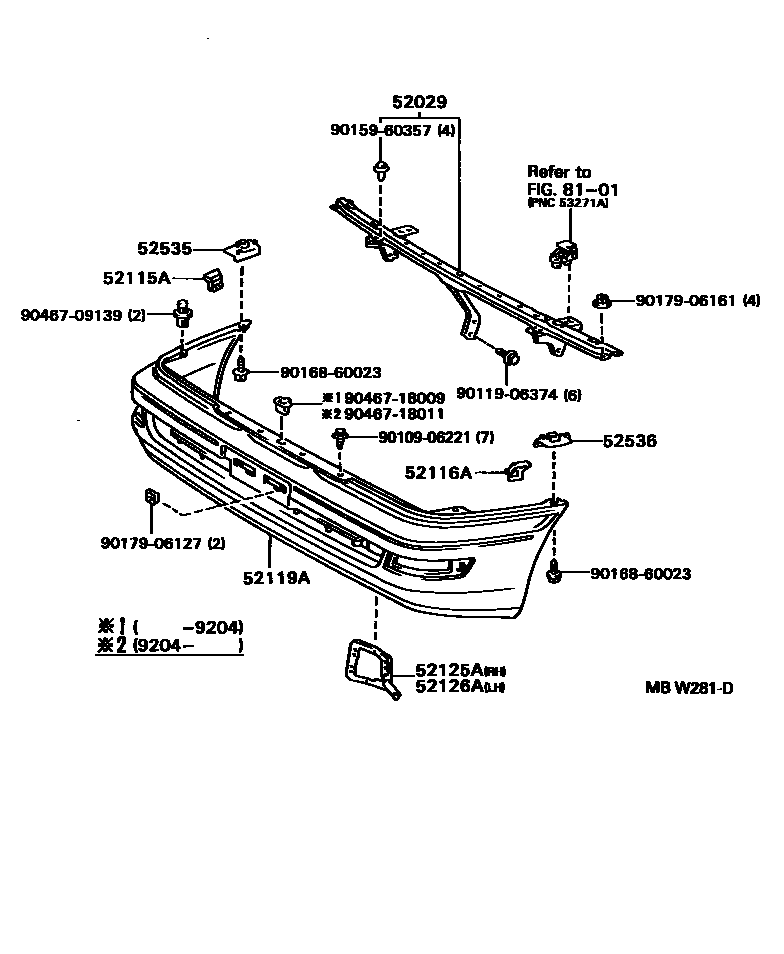

FRONT BUMPER & BUMPER STAY
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
main52119-2B070iAT190..JPP..ATM..XL;AT190,CT190,ST191..JPP..SED..GL; AT190..JPP..LHD..MTM..XL199203-199210
*EX-USSR OR W(LICENSE PLATE SPACE(550 X 130)); W(LICENSE PLATE SPACE(550 X 130))
main52119-2B900iAT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL; AT190..JPP..RHD..XL199203-199402
W(LICENSE PLATE SPACE(390 X 170))
W(LICENSE PLATE SPACE(390 X 170))
52125ABRACKET, FOG LAMP MOUNTING, RH
W(LICENSE PLATE SPACE(390 X 170))
52126ABRACKET, FOG LAMP MOUNTING, LH
W(LICENSE PLATE SPACE(550 X 130))
W(LICENSE PLATE SPACE(390 X 170))
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
8101HEADLAMP
9010906221
main90109-06221
9011906374
main90119-06374
9015960357
main90159-60357
9016860023
main90168-60023
9017906127
main90179-06127
9017906161
main90179-06161
9046709139
main90467-09139
9046718009
main90467-18009
9046718011
main90467-18011
18 parts on this diagram · 3 diagrams in section
