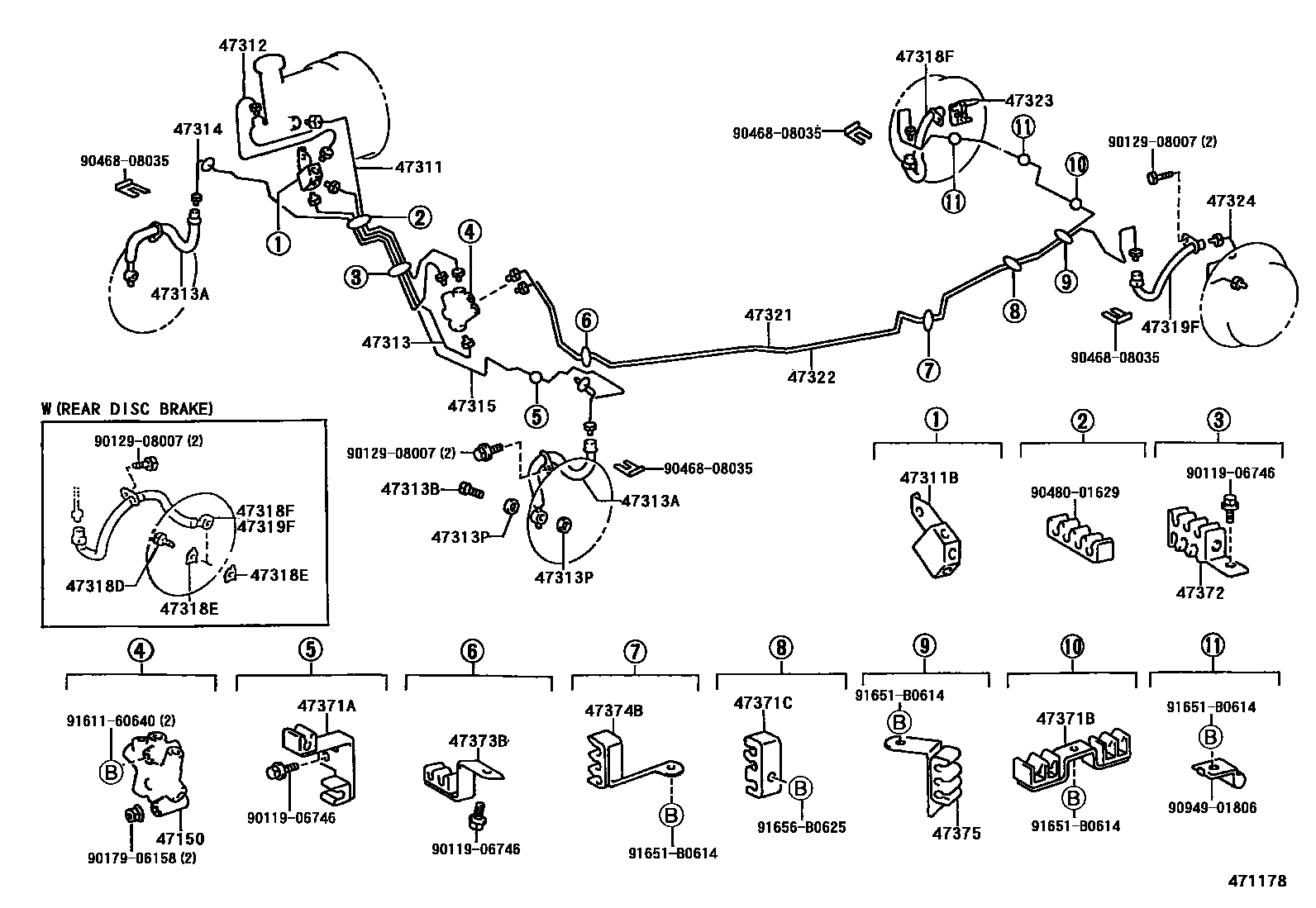

BRAKE TUBE & CLAMP
47150VALVE ASSY, PROPORTIONING
W(REAR DISC BRAKE)
W(REAR DISC BRAKE)
W(ABS)
W(ABS & REAR DISC BRAKE)
47311TUBE, FRONT BRAKE, NO.1
W(ABS)
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
W(ABS)
47312TUBE, FRONT BRAKE, NO.2
W(ABS)
W(ABS)
47313TUBE, FRONT BRAKE, NO.3
W(ABS)
W(ABS)
W(ABS)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
LH
RH
LH
LH
RH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
W(ABS)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
W(ABS)
W(ABS)
47315TUBE, FRONT BRAKE, NO.5
W(ABS)
W(ABS)
47318TUBE, FRONT BRAKE, NO.8
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
W(REAR DISC BRAKE)
W(REAR DISC BRAKE)
W(REAR DISC BRAKE)
47319FHOSE, FLEXIBLE(FOR REAR LH)
W(REAR DISC BRAKE)
W(REAR DISC BRAKE)
W(REAR DISC BRAKE)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
W(ABS)
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47372CLAMP, BRAKE TUBE, NO.2
W(ABS)
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
9011906746
main90119-06746
9012908007
main90129-08007
9017906158
main90179-06158
9046808035
main90468-08035
9048001629
main90480-01629
9094901806
main90949-01806
9161160640
main91611-60640
91651B0614
main91651-B0614
91656B0625
main91656-B0625
35 parts on this diagram · 6 diagrams in section
