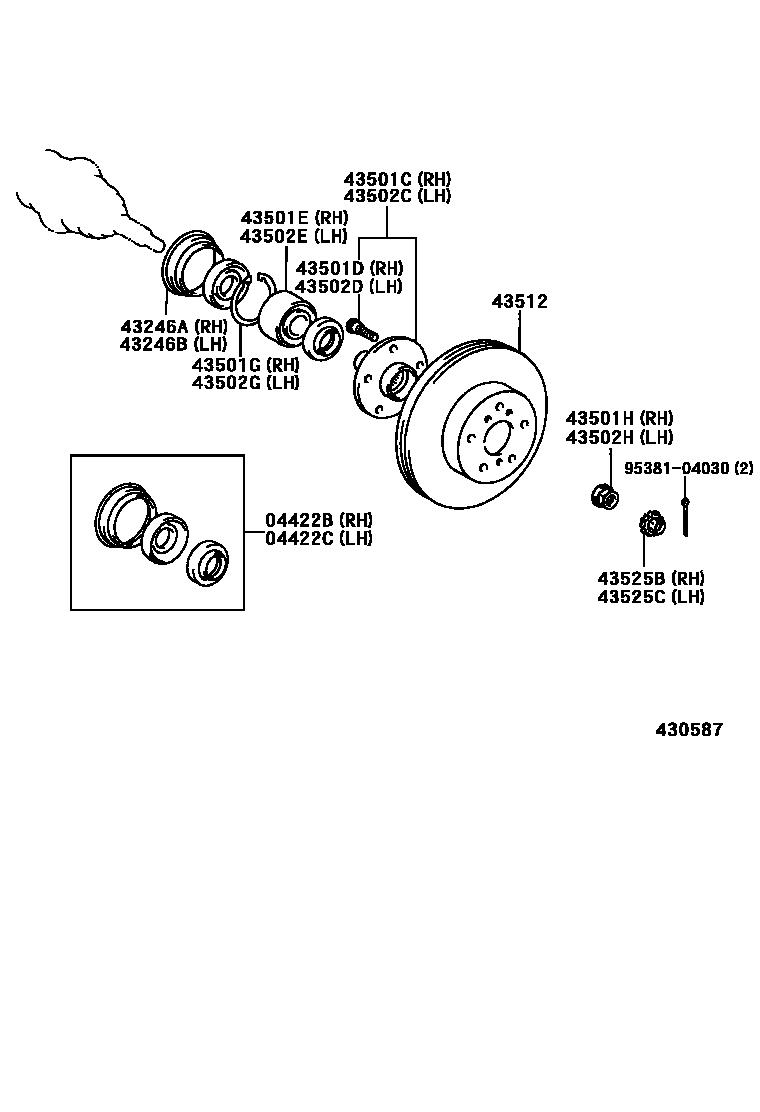

FRONT AXLE HUB

04422BSEAL KIT, FRONT AXLE OIL, RH

main04422-12060iAT190,CT190,ST191..JPP199203-199805

main04422-20080iAT190,ST191..JPP..RHD..GL199203-199805

W(ABS)

04422CSEAL KIT,FRONT AXLE OIL, LH

main04422-12060iAT190,CT190,ST191..JPP199203-199805

main04422-20080iST191..JPP..GL;AT190..JPP..RHD..GL199203-199805

W(ABS)

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-12020iAT190,ST191..JPP..RHD..GL199203-199805

W(ABS)

main43246-12040iAT190,CT190,ST191..JPP199203-199805

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-12020iAT190,ST191..JPP..RHD..GL199203-199805

W(ABS)

main43246-12040iAT190,CT190,ST191..JPP199203-199805

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-20130iAT190,CT190,ST191..JPP199203-199208

sub43502-20131

main43502-20131iAT190,CT190,ST191..JPP199208-199607

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAT190,CT190,ST191..JPP199203-199607

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-38003iAT190,CT190,ST191..JPP199203-199607

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iAT190,CT190,ST191..JPP199203-199607

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-22001iAT190,ST191..JPP199709

main90179-22020iAT190,ST191..JPP199203-199709

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-20130iAT190,CT190,ST191..JPP199203-199208

sub43502-20131

main43502-20131iAT190,ST191..JPP199208-199607

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iAT190,ST191..JPP199203-199607

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-38003iAT190,ST191..JPP199203-199607

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iAT190,CT190,ST191..JPP199203-199607

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-22001iAT190,ST191..JPP199709

main90179-22020iAT190,ST191..JPP199203-199709

43512DISC, FRONT

main43512-20450iAT190,CT190..JPP199301-199711

sub43512-32301

main43512-20470iST191..JPP199301-199606

sub43512-21010

main43512-20480iAT190,CT190..JPP199203-199301

sub43512-20470

main43512-20500iST191..JPP199203-199211

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030iAT190,CT190,ST191..JPP199203-199607

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030iAT190,CT190,ST191..JPP199203-199607

9538104030

main95381-04030

18 parts on this diagram · 1 diagram in section
