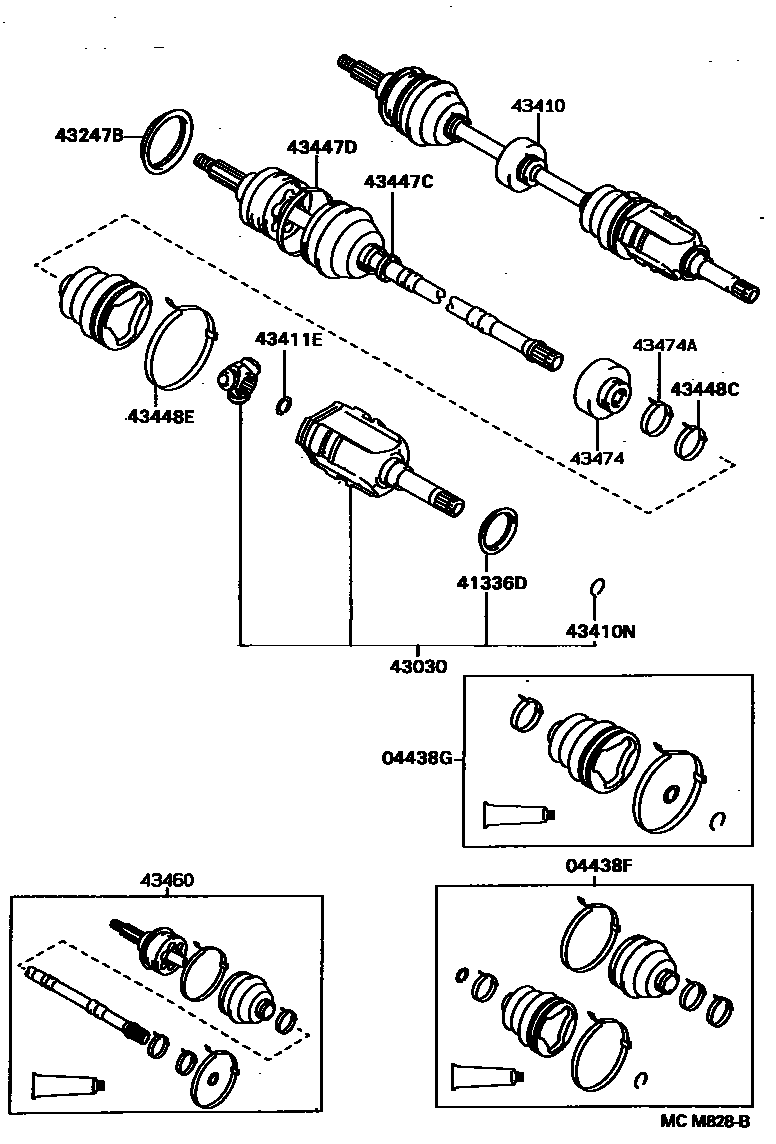

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12172iAT190..JPP199203-199711

sub04428-12270

main04438-12270iCT190..JPP199203-199408

main04438-12290iST191..JPP199203-199408

main04438-20131iST191..JPP199804

sub04438-20134

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12162iAT190..JPP199203-199511

main04438-12260iCT190..JPP199203-199311

main04438-12280iST191..JPP199203-199311

main04438-12410iAT190..JPP199511-199711

sub04438-12840

main04438-12420iCT190,ST191..JPP199511-199804

main04438-20121iST191..JPP199804

sub04438-12470

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iAT190..JPP199203-199711

main41336-20011iST191..JPP199203

sub41336-20050

main41336-32010iCT190..JPP199203-199601

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-20020iCT190..JPP199203-199601

main43030-20030iST191..JPP199203-199805

sub43030-32060

main43403-12040iAT190..JPP199203-199711

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-05010iAT190,CT190,ST191..JPP199209-199501

GKN

main43247-05011iAT190,CT190,ST191..JPP199501-199805

GKN

main43247-05020iAT190,ST191..JPP..RHD..GL199209-199306

W(ABS),GKN

main43247-12010iST191..JPP..GL;AT190..JPP..RHD..GL199306-199601

W(ABS)

main43247-33010iAT190,CT190,ST191..JPP199402-199805

TOYOTA

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-20440iAT190..JPP199203-199709

sub90178-22001

main43410-20441iAT190..JPP199709-199711

sub43410-20442

main43410-20450iAT190..JPP..RHD..GL199203-199709

W(ABS)

sub90178-22001

main43410-20451iAT190..JPP199709-199711

W(ABS)

sub43410-20452

main43410-20530iCT190..JPP199203-199601

sub43410-20531

sub90178-22001

main43410-20540iST191..JPP199203-199709

sub90178-22001

main43410-20541iST191..JPP199709-199805

sub43410-20542

main43410-20580iST191..JPP..GL199305-199709

W(ABS)

sub90178-22001

main43410-20581iST191..JPP199709-199805

W(ABS)

sub43410-20582

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iST191..JPP199203

main90521-26004iAT190..JPP199203-199711

main90521-27005iCT190..JPP199203-199601

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22005iAT190,ST191..JPP199606

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-14010iCT190,ST191..JPP199203-199601

main42345-16010iAT190..JPP199601-199711

main42345-16030iST191..JPP199601

main90949-01078iAT190..JPP199203-199601

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16020iAT190..JPP199307-199711

main42345-16040iCT190,ST191..JPP199307

main90949-01076iCT190,ST191..JPP199203-199307

sub42345-12160

main90949-01080iAT190..JPP199203-199307

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16010iAT190,ST191..JPP199601-199606

main90949-01078iAT190,CT190,ST191..JPP199203-199601

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16040iAT190,CT190,ST191..JPP199307

main90949-01076iAT190,CT190,ST191..JPP199203-199307

sub42345-12160

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29098iAT190..JPP199203-199709

sub90178-22001

main43460-29099iAT190..JPP199709-199711

sub43460-80094

main43460-29167iAT190..JPP..RHD..GL199203-199709

W(ABS)

sub90178-22001

main43460-29168iAT190..JPP199709-199711

W(ABS)

sub43460-80095

main43460-29225iCT190..JPP199203-199601

sub43460-29226

sub90178-22001

main43470-19645iST191..JPP199203-199709

sub90178-22001

main43470-19646iST191..JPP199709-199804

main43470-19647iST191..JPP199804-199805

sub43470-19648

main43470-19655iST191..JPP..RHD..GL199203-199305

W(ABS)

sub90178-22001

main43470-19656iST191..JPP199709-199804

W(ABS)

main43470-19657iST191..JPP199804-199805

W(ABS)

sub43470-19658

43474DAMPER, DRIVE SHAFT

main43474-12020iCT190..JPP199203-199601

main43474-12040iAT190..JPP199704-199711

sub43474-12130

main43474-20050iAT190..JPP199607-199704

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iAT190,CT190..JPP199203-199307

main42345-16030iAT190,CT190..JPP199307-199601

15 parts on this diagram · 3 diagrams in section
