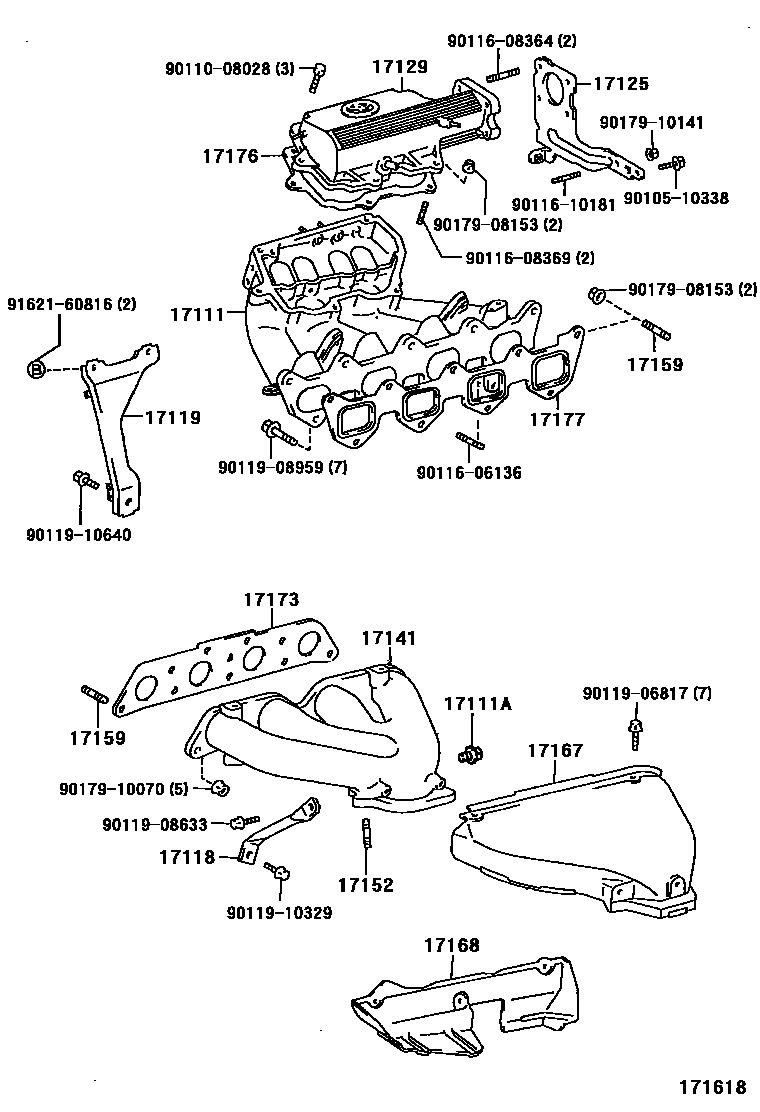

MANIFOLD
17111MANIFOLD, INTAKE
SINGAPORE SPEC OR THAILAND SPEC
PHILIPPINES SPEC
17111APLUG, NO.1
17118STAY, MANIFOLD
SINGAPORE SPEC OR THAILAND SPEC
SINGAPORE SPEC
THAILAND SPEC
17119STAY, MANIFOLD, NO.2
17129TANK, INTAKE AIR SURGE
17141MANIFOLD, EXHAUST
THAILAND SPEC
SINGAPORE SPEC OR THAILAND SPEC
W/O PNC 17111A
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
EXHAUST MANIFOLD
EXHAUST SIDE
EXHAUST MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
INTAKE MANIFOLD
INTAKE SIDE
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
SINGAPORE SPEC OR THAILAND SPEC
sub17167-64120
sub17167-74211
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9010510338
main90105-10338
9011008028
main90110-08028
9011606136
main90116-06136
9011608364
main90116-08364
9011608369
main90116-08369
9011610181
main90116-10181
9011906817
main90119-06817
9011908633
main90119-08633
9011908959
main90119-08959
9011910329
main90119-10329
9011910640
main90119-10640
9017908153
main90179-08153
9017910070
main90179-10070
9017910141
main90179-10141
9162160816
main91621-60816
29 parts on this diagram · 4 diagrams in section
