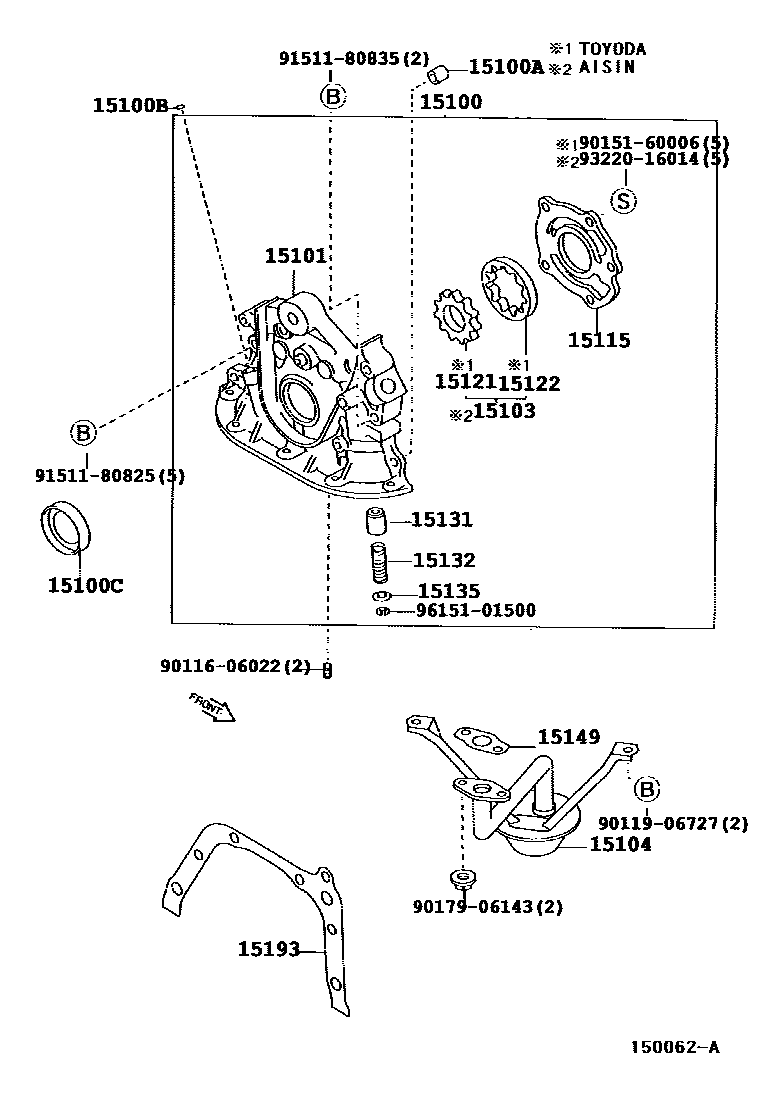

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

15100PUMP ASSY, OIL

main15100-15060i4AFE..AT190..JPP199607-199711

main15100-64040i2C..CT190..JPP199203-199601

main15100-74010i3SFE..ST191..JPP199203-199508

main15100-74060i3SFE..ST191..JPP199508-199606

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i2C..CT190..JPP199203-199601

15100BRING, O(FOR OIL PUMP)

main15188-63010i3SFE..ST191..JPP199203-199304

main15188-74050i3SFE..ST191..JPP199608

main15188-88382i3SFE..ST191..JPP199304-199606

main96721-19010i4AFE..AT190..JPP199203-199607

15100CSEAL(FOR OIL PUMP)

main15165-70010i3SFE..ST191..JPP199203-199304

main15165-74020i3SFE..ST191..JPP199606

main90029-21022i2C..CT190..JPP199203-199308

main90311-32018i4AFE..AT190..JPP199607-199702

main90311-32020i4AFE..AT190..JPP199702-199711

15101BODY SUB-ASSY, OIL PUMP

main15011-15060i4AFE..AT190..JPP199607-199711

AISIN SEIKI

main15101-15070i4AFE..AT190..JPP199607-199711

TOYODA KOUKI

main15101-64030i2C..CT190..JPP199203-199308

15103GEAR SET, OIL PUMP

main15103-15020i4AFE..AT190..JPP199203-199607

15104STRAINER SUB-ASSY, OIL

main15104-15090i4AFE..AT190..JPP199607-199711

main15104-64060i2C..CT190..JPP199203-199206

main15104-64070i2C..CT190..JPP199206-199601

main15104-74090i3SFE..ST191..JPP199605-199606

main15104-88380i3SFE..ST191..JPP199203-199605

15115COVER, OIL PUMP

main15115-15020i4AFE..AT190..JPP199203-199607

AISIN SEIKI

main15115-15030i4AFE..AT190..JPP199203-199211

TOYODA KOUKI

main15115-16060i4AFE..AT190..JPP199211-199607

TOYODA KOUKI

15121GEAR, OIL PUMP DRIVE

main15121-15040i4AFE..AT190..JPP199203-199607

15122GEAR, OIL PUMP DRIVEN

main15122-15040i4AFE..AT190..JPP199203-199607

15131VALVE, OIL PUMP RELIEF

main15131-15030i4AFE..AT190..JPP199203-199607

TOYODA KOUKI

main15131-24010i4AFE..AT190..JPP199203-199607

AISIN SEIKI

main15131-64020i2C..CT190..JPP199203-199601

15132SPRING, OIL PUMP RELIEF VALVE

main15132-15030i4AFE..AT190..JPP199203-199607

TOYODA KOUKI

main15132-40010i4AFE..AT190..JPP199607-199711

AISIN SEIKI

main15132-64012i2C..CT190..JPP199203-199601

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i3SFE..ST191..JPP199606

main15135-15030i4AFE..AT190..JPP199607-199711

TOYODA KOUKI

15149GASKET, OIL STRAINER FLANGE

main15149-15011i4AFE..AT190..JPP199203-199205

main15149-16010i4AFE..AT190..JPP199205-199607

15193GASKET, OIL PUMP

main15193-64021i2C..CT190..JPP199203-199601

main15197-15012i4AFE..AT190..JPP199203-199408

main15197-15030i4AFE..AT190..JPP199607-199711

main15197-63021i3SFE..ST191..JPP199203-199309

main15197-74030i3SFE..ST191..JPP199309-199508

main15197-74040i3SFE..ST191..JPP199508-199606

9011606022

main90116-06022

9011906727

main90119-06727

9015160006

main90151-60006

9017906143

main90179-06143

9151180825

main91511-80825

9151180835

main91511-80835

9322016014

main93220-16014

9615101500

main96151-01500

23 parts on this diagram · 4 diagrams in section
