TIMING GEAR COVER & REAR END PLATE

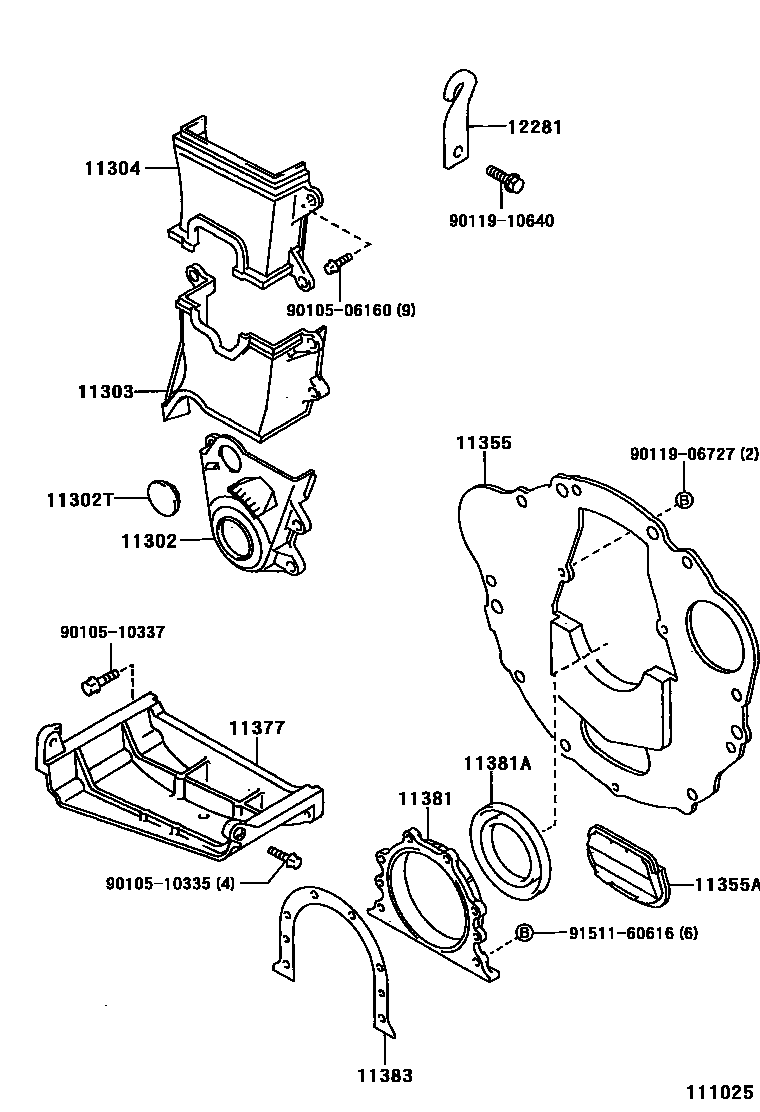

Parts diagram
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
main11302-15050i199203-199711
main11302-74011i199203-199402
main11302-74030i199402-199711
main11302-74040i199608
11302TPLUG, HOLE
main90950-01783i199203-199711
11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
main11303-15050i199203-199711
11304COVER, TIMING CHAIN OR BELT, NO.2
main11303-74030i199203-199402
main11303-74040i199402-199711
main11303-74050i199608
main11304-15030i199203-199711
11355PLATE, REAR END
main11355-15070i199203-199711
main11355-15080i199203-199607
main11355-64061i199203-199601
sub11355-64062
main11355-74010i199203-199606
11355APLUG, HOLE(FOR REAR END PLATE)
main90950-01264i199203-199607
main90950-01738i199203-199601
11377STIFFENER, REAR END PLATE
main11377-15010i199203-199208
sub11377-15011
main11377-15011i199208-199505
sub11377-15012
main11377-15012i199505-199711
main11377-74030i199203-199606
11381RETAINER, ENGINE REAR OIL SEAL
main11381-15010i199203-199711
main11381-63012i199203-199606
main11381-64012i199203-199601
sub11381-64020
11381ASEAL, ENGINE REAR OIL
main90311-70007i199203-199711
main90311-85006i199203-199801
sub90311-85009
main90311-85009i199801
main90311-90005i199203-199601
sub90311-90008
11383GASKET, ENGINE REAR OIL SEAL RETAINER
main11383-15011i199203-199205
sub11383-16010
main11383-16010i199205-199711
main11383-74021i199203-199606
12281HANGER, ENGINE, NO.1
main12281-15050i199309-199711
9010506160
main90105-06160
9010510335
main90105-10335
9010510337
main90105-10337
9011906727
main90119-06727
9011910640
main90119-10640
9151160616
main91511-60616

17 parts on this diagram · 4 diagrams in section
