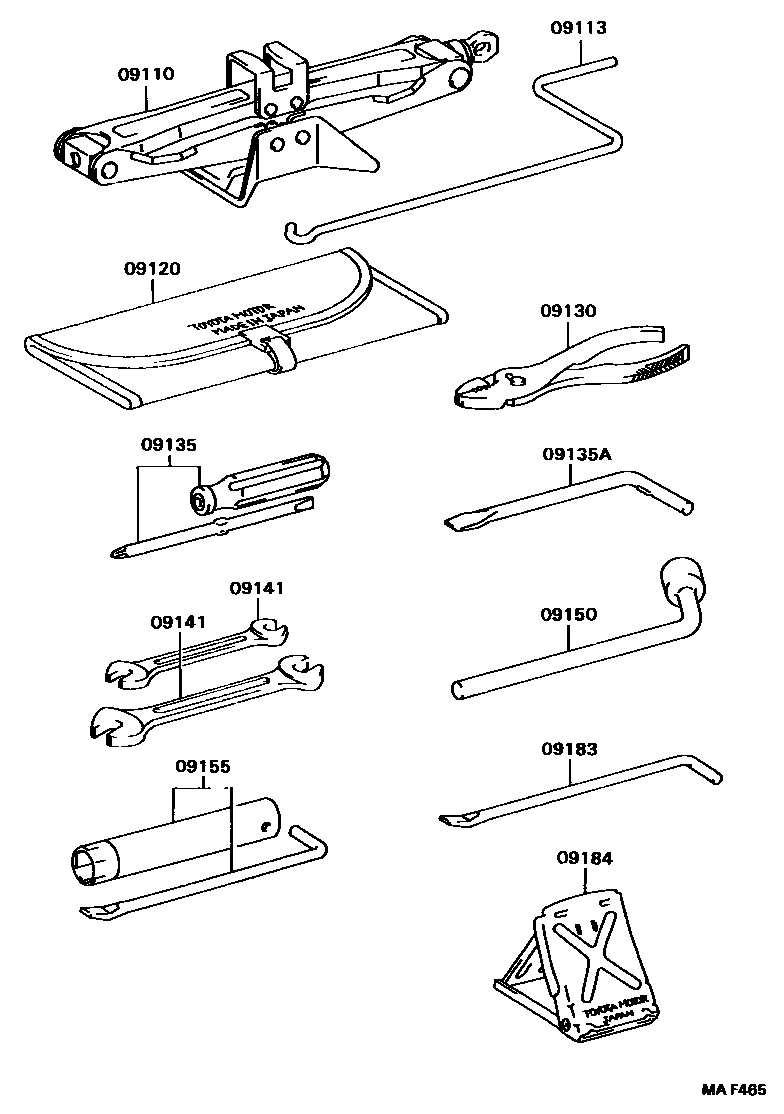

STANDARD TOOL

09110JACK ASSY

main09111-20110iAT190,CT190,ST191..JPP199203-199607

sub09111-02020

09113HANDLE, JACK

main09113-20030iAT190,CT190,ST191..JPP199203-199607

sub09113-20050

09120BAG, TOOL

main09120-10030iAT190,CT190,ST191..JPP199203-199402

main09120-16030iAT190,CT190,ST191..JPP199402-199607

09130PLIERS

main99913-11500iAT190,CT190,ST191..JPP199203-199607

09135DRIVER, SCREW

main99915-10700iAT190,CT190,ST191..JPP199203-199607

09135ABIT, SCREW DRIVER

main09135-00012iST191..JPP..GL;AT190,CT190..JPP199203-199704

09141SPANNER

main99914-10810iAT190,CT190,ST191..JPP199203-199607

8 X 10

main99914-11214iAT190,ST191..JPP199203-199607

12 X 14

09150WRENCH, HUB NUT BOX

main09150-26010iAT190,CT190,ST191..JPP199203-199212

main09150-40010iAT190,CT190,ST191..JPP199402-199607

09155WRENCH, SPARK PLUG

main09155-74010iAT190,ST191..JPP199402-199607

main09155-74020iAT190..JPP199203-199402

09183WRENCH, WHEEL CAP

main09183-00010iAT190,CT190,ST191..JPP199203-199402

09184STOPPER, WHEEL

main09184-00010iAT190,ST191..JPP199203-199607

11 parts on this diagram · 1 diagram in section
