MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-20220-03iAT17#,CT17#,ST171198712-199211

GRAY,TRIM1#

main87810-20220-04iST171..GEN;AT17#,CT17#;ST171..SED..GCC198712-198911

BLUE,TRIM8#

main87810-20220-06iAT171,CT170,ST171..(LB,SED)..(EXS,GL,GX,XL)199001-199208

SABLE,TRIM4#

main87810-20220-24iAT17#,CT17#,ST171..SED,WG198911-199001

DARK BLUE,TRIM8#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iAT17#,CT17#,ST171198712-199211

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-26iAT171,CT170,ST171..(LB,SED)..(EXS,GL,GX,XL)199001-199208

SABLE,TRIM4#

main87834-20080-34iST171..GEN;AT17#,CT17#;ST171..SED..GCC198712-198911

DEEP BLUE,TRIM8#

main87834-20080-53iAT17#,CT17#,ST171198712-199208

SHADOW GRAY,TRIM1#

main87834-20080-54iAT17#,CT17#,ST171..SED,WG198911-199001

LIGHT BLUE,TRIM8#

main87834-20080-S3iAT177,CT177,ST171199208-199211

LIGHT GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-1A280iAT17#,ST171..RHD198712-199211

main87931-1A290iST171..GCC;AT17#,CT17#,ST171..LHD..XL198712-199211

main87931-1A310iAT171,ST171..LHD..(EXS,GL,GT); AT171,ST171..RHD..GL198712-199208

DOOR MIRROR 2-ELECT

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-1A360iAT171,ST171..RHD..GL..CBR; ST171..EFI198712-199208

DOOR MIRROR

main87961-1A370iAT17#,CT17#,ST171..LHD198712-199211

main87961-1A390iAT171,ST171..LHD..(EXS,GL,GT); AT171,ST171..RHD..GL198712-199208

DOOR MIRROR 2-ELECT

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-2B020iAT17#,ST171..RHD198712-199211

DOOR MIRROR

main87910-2B030iAT17#,ST171..RHD198712-199211

DOOR MIRROR REMOTE

main87910-2B050iAT171,ST171..RHD..GL198712-199008

DOOR MIRROR 2-ELECT

main87910-2B060iAT17#,CT17#,ST171..LHD..GEN198712-199211

DOOR MIRROR

main87910-2B070iAT17#,CT17#,ST171..LHD198712-199211

DOOR MIRROR 1-REMOTE

main87910-2B090iAT171,ST171..LHD..(EXS,GL,GT)198712-199208

DOOR MIRROR 2-ELECT

main87910-2B220-01iAT171,ST171..RHD..GL199107-199208

DOOR MIRROR 2-ELECT,BLACK,XXXX,175 ,182 ,6H8 ,8G5

main87910-2B220-03iAT171,ST171..RHD..GL198911-199011

DOOR MIRROR 2-ELECT,SILVER METALLIC,24P

main87910-2B220-04iAT171,ST171..RHD..GL..CBR198712-198911

DOOR MIRROR 2-ELECT,LIGHT BLUE-METARIC,28H ,8E8

main87910-2B220-05iAT171,ST171..RHD..GL..CBR198712-198911

DOOR MIRROR 2-ELECT,MEDIUM BEIGE-METARIC,4H6

main87910-2B220-07iAT171,ST171..RHD..GL198911-199208

DOOR MIRROR 2-ELECT,GRAYISH GREEN M,6K6

main87910-2B220-08iAT171,ST171..RHD..GL..CBR198712-198911

DOOR MIRROR 2-ELECT,SUPER RED,040

main87910-2B220-12iAT171,ST171..RHD..GL..CBR198712-198911

DOOR MIRROR 2-ELECT,RED MICA,3H4

main87910-2B220-14iAT171,ST171..RHD..GL198911-199208

DOOR MIRROR 2-ELECT,LIGHT BLUE MICA M,8G2

main87910-2B220-22iAT171,ST171..RHD..GL..CBR198712-198911

DOOR MIRROR 2-ELECT,SUPER RED,3E5

main87910-2B220-32iAT171,ST171..RHD..GL198911-199208

DOOR MIRROR 2-ELECT,SUPER RED 3,3J6

87918KNOB, CONTROL OUTER MIRROR

main87918-12020iAT17#,CT17#,ST171; AT17#,CT17#,ST171..GEN198712-199211

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-2B080iAT17#,ST171..RHD..CBR198712-199211

DOOR MIRROR

main87940-2B090iAT17#,ST171..RHD198712-199211

DOOR MIRROR 1-REMOTE

main87940-2B110iAT171,ST171..RHD..GL199008-199208

main87940-2B120iAT17#,CT17#,ST171..LHD198712-199211

DOOR MIRROR

main87940-2B130iAT17#,CT17#,ST171..LHD..GEN198712-199211

DOOR MIRROR REMOTE

main87940-2B150iAT171,ST171..LHD..(EXS,GL,GT)198712-199208

DOOR MIRROR 2-ELECT

main87940-2B290-01iAT171,ST171..RHD..GL199107-199208

DOOR MIRROR 2-ELECT,BLACK,XXXX,175 ,182 ,6H8 ,8G5

main87940-2B290-03iAT171,ST171..RHD..GL198911-199011

DOOR MIRROR 2-ELECT,SILVER METALLIC,24P

main87940-2B290-04iAT171,ST171..RHD..GL..CBR198712-198911

DOOR MIRROR 2-ELECT,LIGHT BLUE-METARIC,28H ,8E8

main87940-2B290-05iAT171,ST171..RHD..GL..CBR198712-198911

DOOR MIRROR 2-ELECT,MEDIUM BEIGE-METARIC,4H6

main87940-2B290-07iAT171,ST171..RHD..GL198911-199208

DOOR MIRROR 2-ELECT,GRAYISH GREEN M,6K6

main87940-2B290-08iAT171,ST171..RHD..GL..CBR198712-198911

DOOR MIRROR 2-ELECT,SUPER WHITE,040

main87940-2B290-12iAT171,ST171..RHD..GL..CBR198712-198911

DOOR MIRROR 2-ELECT,RED MICA,3H4

main87940-2B290-14iAT171,ST171..RHD..GL198911-199208

DOOR MIRROR 2-ELECT,LIGHT BLUE MICA M,8G2

main87940-2B290-22iAT171,ST171..RHD..GL..CBR198712-198911

DOOR MIRROR 2-ELECT,SUPER RED,3E5

main87940-2B290-32iAT171,ST171..RHD..GL198911-199208

DOOR MIRROR 2-ELECT,SUPER RED 3,3J6

9014950044

main90149-50044

9015940098

main90159-40098

9331915016

main93319-15016

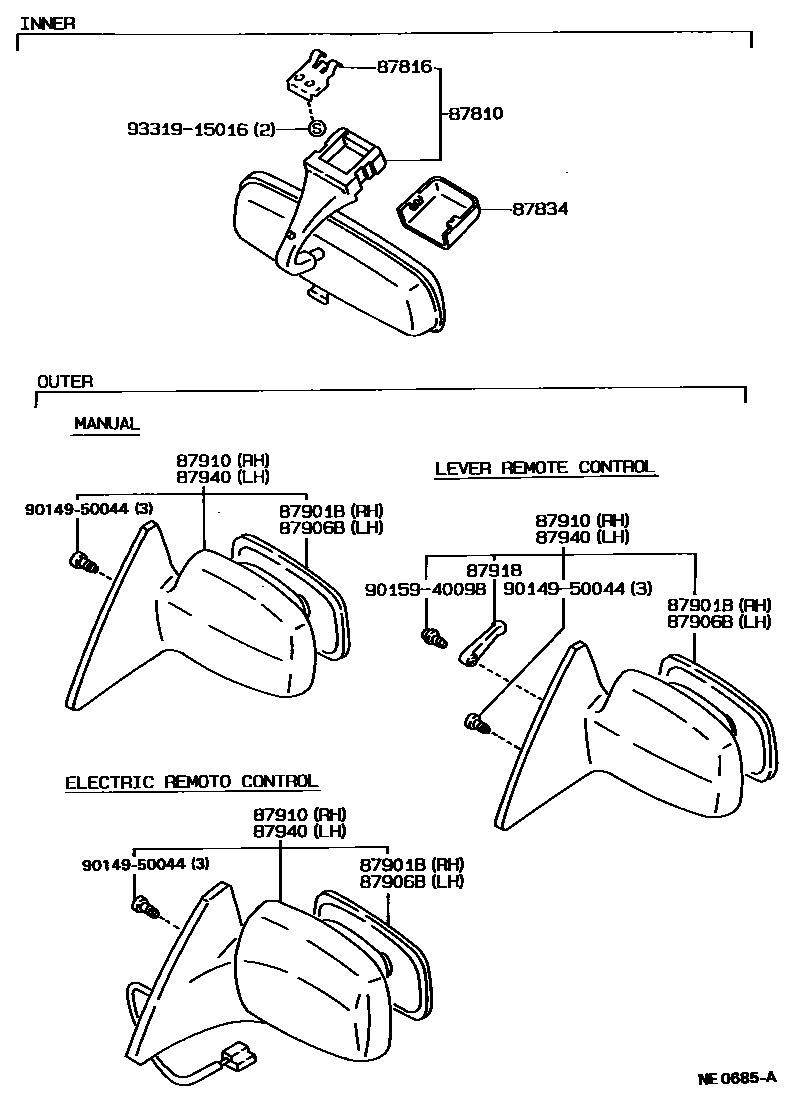

11 parts on this diagram · 1 diagram in section
