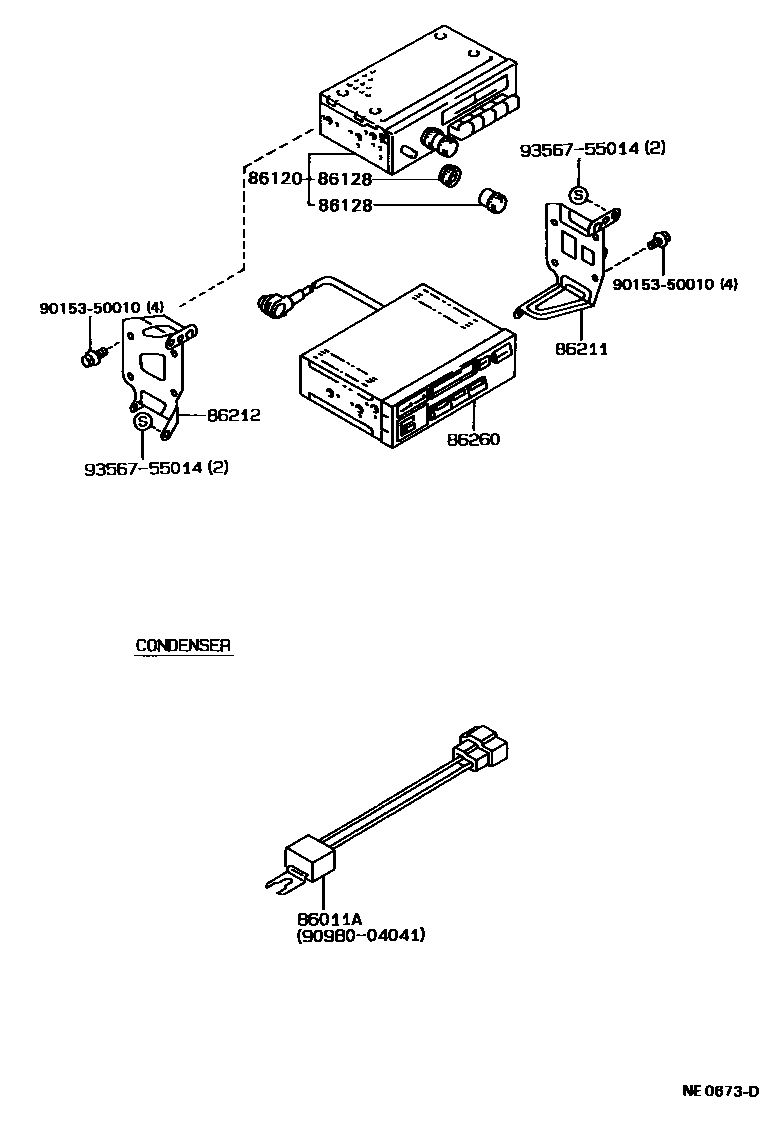

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04041iST171..LHD..5F..XL198901-198911

86120RECEIVER ASSY, RADIO

main86120-16460iAT17#,CT17#;ST171..LB,SED198712-199211

MATSUSHITA,ID=5108,MW/SW 5PB 2SP

main86120-16530iAT17#,CT17#,ST171198712-199211

MATSUSHITA,ID=5010,AM 5 BUTTON 1DIN

main86120-22780iAT171,CT170,ST171..LB,SED198712-199208

main86120-32270iAT171,CT17#;ST171..LB,SED198911-199008

main86120-32280iAT17#,CT17#,ST171198712-199211

MATSUSHITA,AM/FM 2-AMP 2SP

86128KNOB, RADIO RECEIVER

main86128-20010iAT171,CT170,ST171..LB,SED; AT177,CT177,ST171..WG198712-198911

PWR/VOL

main86128-20030iAT171,CT170,ST171..LB,SED; AT177,CT177,ST171..WG198712-198911

TONE

main86128-20050iAT171,CT170,ST171..LB,SED; AT177,CT177198712-198911

TUNE

main86128-22270iAT17#,CT17#;ST171..LB,SED198911-199211

TUNE

main86128-22770iST171..WG198810-198911

RADIO=AM/FM MPX,TUNE

main86128-22790iAT171,CT170,ST171..LB,SED198712-198911

AM/FM MPX,W/4SP,PWR/VOL

main86128-22810iAT171,CT170,ST171..LB,SED198712-198911

AM/FM MPX,W/4SP,TONE

86211BRACKET, RADIO, NO.1

main86211-20230iAT17#,ST171..RHD198712-199211

main86211-20240iAT17#,CT17#,ST171..LHD198712-199211

86212BRACKET, RADIO, NO.2

main86212-20220iAT17#,ST171..RHD198712-199211

main86212-20230iAT17#,CT17#,ST171..LHD198712-199211

86260TAPE PLAYER ASSY

main86260-17011iAT171,CT170,ST171..LB,SED; AT177,CT177,ST171..WG198712-198904

W(2 SPEAKER)

main86260-17012iAT177,CT177,ST171..WG198904-199211

main86260-22160iAT171,CT170,ST171..LB,SED198911-199208

W(4 SPEAKER)

9015350010

main90153-50010

9098004041

main90980-04041

9356755014

main93567-55014

9 parts on this diagram · 1 diagram in section
