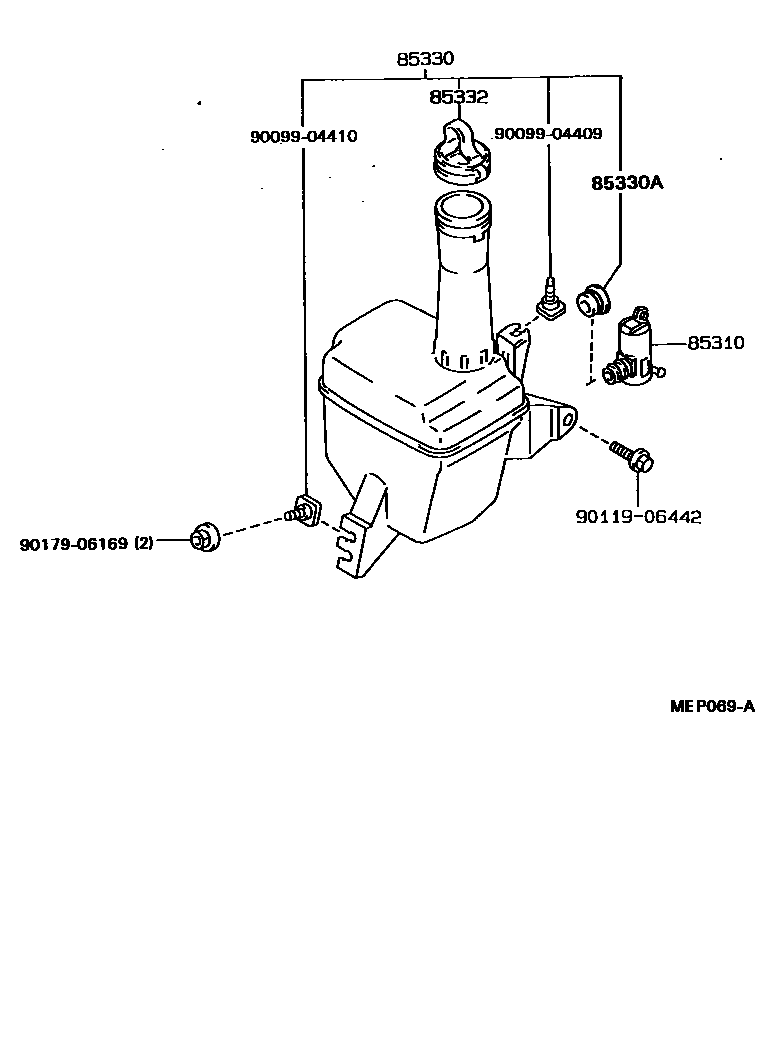

WINDSHIELD WASHER

0001 1 0002 1

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iAT17#,CT17#,ST171198712-199211

85330JAR ASSY, WINDSHIELD WASHER

main85331-20630iAT17#,CT17#,ST171..SED,WG198712-198811

main85331-20631iAT17#,CT17#,ST171..SED,WG198811-199211

main85331-20640iAT177,CT177,ST171..WG; ST171..LB198712-198811

W(REAR WIPER)

main85331-20641iST171..LB198811-199208

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAT177,CT177,ST171..LB,WG198911-199211

85332CAP, WINDSHIELD WASHER JAR

main85332-32161iAT17#,CT17#,ST171198811-199211

9009904409

main90099-04409

9009904410

main90099-04410

9011906442

main90119-06442

9017906169

main90179-06169

8 parts on this diagram · 2 diagrams in section
