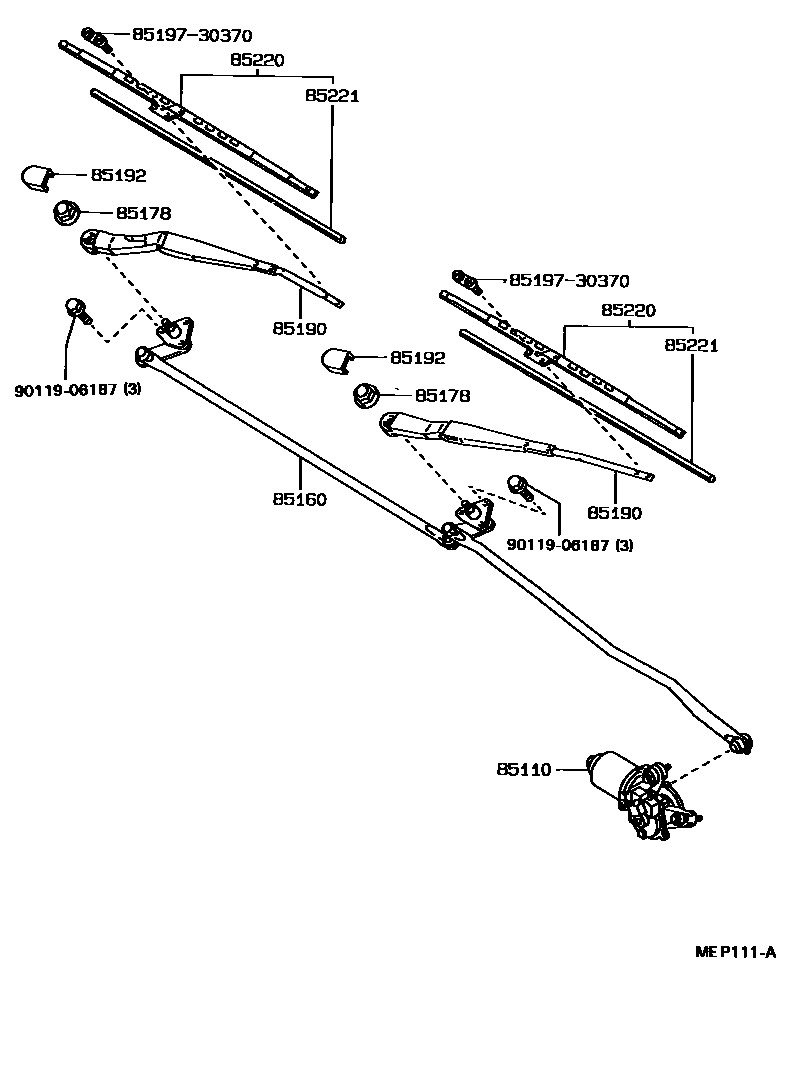

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20480iAT17#,ST171..RHD198712-198903

main85110-20481iAT17#,ST171..RHD198903-199101

main85110-20482iAT17#,ST171..RHD199101-199211

main85110-20520iAT17#,CT17#,ST171..LHD198712-198903

main85110-20521iAT17#,CT17#,ST171..LHD198903-199101

main85110-20522iAT17#,CT17#,ST171..LHD199101-199211

85160LINK ASSY, WINDSHIELD WIPER

main85150-20640iAT17#,ST171..RHD198911-199101

main85150-20641iAT17#,ST171..RHD199101-199211

main85150-20710iAT17#,CT17#,ST171..LHD198911-199101

main85150-20711iAT17#,CT17#,ST171..LHD199101-199211

main85160-20350iAT17#,ST171..RHD198712-198911

main85160-20380iAT17#,CT17#,ST171..LHD198712-198911

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113×2iAT17#,CT17#,ST171198712-199211

85190ARM ASSY, WINDSHIELD WIPER

main85190-20610iAT17#,ST171..RHD198712-198911

RH

main85190-20611iAT17#,ST171..RHD198911-199211

RH

main85190-20640iAT17#,CT17#,ST171..LHD198712-199211

LH

main85210-20210iAT17#,ST171..RHD198712-198911

LH

main85210-20211iAT17#,ST171..RHD198911-199211

LH

main85210-20220iAT17#,CT17#,ST171..LHD198712-199211

RH

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2iAT17#,CT17#,ST171198712-199211

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16750iAT17#,ST171..RHD198712-198911

LH

main85220-16760iAT17#,CT17#,ST171..LHD198712-198810

RH

main85220-1A050iAT17#,CT17#,ST171..LHD198810-199211

RH

main85220-1A121iAT17#,ST171..RHD198911-199211

LH

main85220-32690iAT17#,ST171..RHD198712-198911

RH

main85220-32710iAT17#,CT17#,ST171..LHD198712-198810

LH

main85220-3A050iAT17#,CT17#,ST171..LHD198810-199211

LH

main85220-3A211iAT17#,ST171..RHD198911-199211

RH

85221BLADE, WINDSHIELD WIPER

main85213-17040iAT17#,ST171..RHD199003-199211

RH

main85221-12200iAT17#,ST171..RHD198911-199003

RH

main85221-12240iAT17#,ST171..RHD198911-199003

LH

main85221-20130iAT17#,CT17#,ST171198712-198911

RH

main85221-20140iAT17#,CT17#,ST171198712-198911

LH

main85221-20240iAT17#,CT17#,ST171..LHD198911-199211

LH

main85221-22220iAT17#,CT17#,ST171..LHD198911-199211

RH

main85223-22700iAT17#,ST171..RHD199003-199211

LH

8519730370

main85197-30370

9011906187

main90119-06187

9 parts on this diagram · 2 diagrams in section
