METER

0001 1 0002 1 0003 1W(TACHOMETER) 0004 1W(TACHOMETER) 0005 1W(DIGITAL SPEEDOMETER) 0006 1 0007 1

83100BBULB, COMBINATION METER, NO.1

main83109-12030×3iAT17#,CT17#,ST171..LHD..(GX,XL)198712-199211

12V 3.4W,BLUE CAP

main83109-20010×2iST171..EFI198802-199208

14V 1.4W,BLUE CAP

main83109-20030×3iST171..EFI198712-198911

12V 1.4W,BLUE CAP

main90981-11018×18iAT171..LHD..4F; AT171..LHD..GL; ST171..EXS,GT; ST171..GX; ST171..LHD..XL198911-199203

12V 1.2W W/O SOCKET

main99132-12034×14iAT17#,ST171..LHD..(GX,XL); AT17#,ST171..RHD..XL; CT17#198911-199211

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×11iAT17#,ST171..LHD..XL..GEN; AT171,ST171..(GX,XL)..GCC; CT17#198911-199211

12V 3.4W BULB

main83101-14040×4iAT171..LHD..4F; AT171..LHD..GL; ST171..EXS,GT; ST171..GX; ST171..LHD..XL198911-199203

12V 1.4W BULB

main83101-20040×17iAT171..GCC; ST171..EXS,GT; ST171..GX; ST171..LHD..XL198911-199203

12V 3.4W BULB

83110SPEEDOMETER ASSY

main83110-20841iAT17#,ST171..RHD..XL198911-199211

MPH/KM

main83110-2B530iAT17#,ST171..RHD..XL198712-198911

main83110-2B531iAT17#,ST171..RHD..XL198911-199211

main83110-2B720iAT17#,ST171..RHD..CBR198712-198911

MPH/KM,W(TACHOMETER)

main83110-2B721iAT17#,ST171..RHD..CBR198911-199211

MPH/KM,W(TACHOMETER)

main83110-2B730iAT17#,ST171..RHD..XL; AT171,ST171..RHD..GL198712-198911

KM,W(TACHOMETER)

main83110-2B731iAT171,ST171..RHD..GL198911-199208

main83110-2B740iAT17#,ST171..LHD..XL..GEN198712-198911

main83110-2B741iAT17#,ST171..LHD..XL..GEN198911-199211

main83110-2B750iAT171..GCC198712-198911

main83110-2B751iAT171,ST171..(GX,XL)..GCC198911-199203

main83110-2B760iAT17#,ST171..LHD..XL..GEN198712-198911

MPH/KM

main83110-2B761iAT17#,ST171..LHD..XL..GEN198911-199211

MPH/KM

main83110-2B770iAT17#,ST171..LHD..XL..GEN; AT171,ST171..LHD..GL..GEN198712-198911

KM,W(TACHOMETER)

main83110-2B771iAT171,ST171..LHD..GL198911-199208

main83110-2B780iAT171..LHD..4F; CT17#198712-198911

KM,W(TACHOMETER); MIDDLE EAST SPEC & KM,W(TACHOMETER)

main83110-2B781iCT17#198911-199211

KM,W(TACHOMETER)

main83110-2B790iAT17#,ST171..LHD..GEN198712-198911

MPH/KM,W(TACHOMETER)

main83110-2B791iAT17#,ST171..LHD..GEN198911-199211

MPH/KM,W(TACHOMETER)

main83110-2B800iST171..GCC198712-198911

main83110-2B801iAT171,ST171..(GX,XL)..GCC; ST171..EXS,GT198911-199203

KM,W(TACHOMETER)

main83110-2B840iAT17#,ST171..RHD..XL; CT17#198712-198911

MPH/KM

main83110-2B841iCT17#198911-199211

main83110-2B850iCT17#198712-198911

MPH/KM

main83110-2B851iCT17#198911-199211

MPH/KM

main83110-2B860iAT171..GCC198712-198911

KM,W(TACHOMETER)

main83110-2B870iCT17#198712-198911

MPH/KM,W(TACHOMETER)

main83110-2B871iCT17#198911-199211

MPH/KM,W(TACHOMETER)

main83110-2D270iAT171..RHD..5F..GL198902-198911

INDONESIA SPEC

main83110-2D271iAT171..RHD..5F..GL198911-199208

INDONESIA SPEC

83128KNOB, TRIP COUNTER

main83128-20710iAT171..LHD..4F;ST171..LHD..XL198712-199203

83132CASE, COMBINATION METER

main83132-2B400iAT17#,ST171..RHD..XL198712-198911

main83132-2B420iAT17#,ST171..RHD..XL; AT171,ST171..RHD..GL198712-198908

W(TACHOMETER)

main83132-2B421iAT171,ST171..RHD..GL198908-199208

main83132-2B440iAT17#,CT17#,ST171..LHD..XL..GEN; AT171,ST171..LHD..GL; AT171..GCC198712-198908

W(TACHOMETER)

main83132-2B441iAT171,ST171..LHD..(EXS,GL,GT)198908-199208

main83132-2B520iAT17#,ST171..RHD..XL198911-199211

main83132-2H070iAT171..GCC198712-198911

main83132-2H090iAT17#,ST171..LHD..XL..GEN198712-199211

main83132-2H110iCT17#198712-199211

main83132-2H190iST171..EFI198712-199208

W(DIGITAL METER)

main83132-2H550iAT171,ST171..(GX,XL)..GCC198911-199203

83134COVER, COMBINATION METER, NO.1

main83134-2B360iAT17#,ST171..RHD..XL198712-199211

main83134-2B400iAT17#,ST171..RHD..XL198712-199211

W(TACHOMETER)

main83134-2B420iAT171..LHD..4F;ST171..LHD..XL198712-199203

W(TACHOMETER)

83145LENS, METER, NO.1

main83145-2B460×2iAT171..LHD..4F;ST171..LHD..XL198712-199203

W(TACHOMETER),NO.1

main83145-2B480iAT171..LHD..4F;ST171..LHD..XL198712-199203

W(TACHOMETER),NO.2

main83145-2B500iAT17#,ST171..RHD..XL198712-198911

NO.3

main83145-2B520iAT17#,ST171..RHD..XL198712-198911

NO.4

main83145-2B820iAT17#,ST171..RHD..XL198712-198911

MPH/KM,NO.4

main83145-2B840iAT17#,ST171..RHD..XL; AT171,ST171..RHD..GL198712-198911

NO.4; W(TACHOMETER),NO.4

main83145-2B860iAT17#,ST171..RHD..XL; AT171,ST171..RHD..GL..CBR198712-198911

NO.3; W(TACHOMETER),NO.3

main83145-2B920iAT17#..RHD198712-198911

MPH/KM,W(TACHOMETER),NO.3

main83145-2B940iAT17#,ST171..RHD..CBR198712-198911

MPH/KM,W(TACHOMETER),NO.4

main83145-2B960iST171..EFI; ST171..RHD..CBR198712-198911

MPH/KM,W(TACHOMETER),NO.3; NO.3

main83145-2B980iAT171..LHD..4F;ST171..LHD..XL; ST171..LHD..GL..GEN;AT17#,CT17#..LHD..(3FC,5F)..GEN198712-198911

NO.3; W(TACHOMETER),NO.3

main83145-2D120iAT17#,ST171..RHD..XL198911-199211

NO.4

main83145-2D140iAT17#,ST171..RHD..XL198911-199211

MPH/KM,NO.4

main83145-2D180iAT171,ST171..RHD..GL198911-199208

NO.4

main83145-2D300iAT17#,CT17#..LHD..(3FC,5F);ST171..LHD..(EXS,GL,GT,GX)198911-199211

NO.3

main83145-2D340iAT17#,ST171..RHD..XL198911-199211

NO.3

main83145-2D360iAT17#..RHD..XL; ST171..RHD..XL198911-199211

W(TACHOMETER),NO.3

main83145-2D380iCT17#198911-199211

NO.4

main83145-2D400iAT17#..LHD..(3FC,5F);ST171..LHD..(EXS,GL,GT,GX)198911-199211

NO.4

main83146-2B020iAT171..LHD..4F;ST171..LHD..XL; ST171..LHD..GL;AT17#,CT17#..LHD..(3FC,5F)198712-198911

NO.4; W(TACHOMETER),NO.4

main83146-2B060iAT171,ST171..GCC198712-198911

NO.3

main83146-2B260iST171..RHD..CBR198911-199211

MPH/KM,W(TACHOMETER),NO.3

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-20390iAT17#,CT17#,ST171..LHD..XL..GEN198712-198911

main83243-20391iAT17#,CT17#,ST171..LHD..XL..GEN198911-199211

W/O(TACHOMETER)

main83243-20410iAT171..GCC; AT171..LHD..4F;ST171..LHD..XL198712-198911

MIDDLE EAST SPEC

main83243-20411iAT171,ST171..(GX,XL)..GCC198911-199203

main83243-20490iAT17#,CT17#,ST171..LHD..XL..GEN198911-199211

main83243-20510iAT171..LHD..4F;ST171..LHD..XL198911-199203

MIDDLE EAST SPEC

main83243-2B240iAT17#,ST171..RHD..XL198712-198911

main83243-2B340iAT17#,ST171..RHD..XL; AT171,ST171..RHD..GL198712-198911

W(TACHOMETER)

main83243-2B360iAT17#,ST171..LHD..XL..GEN; AT171,ST171..LHD..GL; AT171..GCC198712-198911

W(TACHOMETER & KM SPEEDOMETER); W(TACHOMETER)

main83243-2B380iCT17#198712-198911

W(TACHOMETER)

main83243-2B440iAT17#,ST171..RHD..XL198911-199211

main83243-2B560iAT171,ST171..RHD..GL198911-199208

main83243-2B660iAT171,ST171..(GX,XL)..GCC; ST171..EXS,GT198911-199203

W(TACHOMETER & KM SPEEDOMETER)

main83243-2B720iAT171,ST171..LHD..GL198911-199208

main83243-2B740iAT17#,ST171..RHD..CBR198911-199211

W(TACHOMETER & MPH/KM SPEEDOMETER)

main83243-2B780iAT17#,ST171..RHD..XL198911-199211

W/O(TACHOMETER)

83247PLATE, METER CIRCUIT

main83247-21050iAT171,ST171..(GX,XL)..GCC198911-199203

main83247-2B070iAT171..GCC198712-198911

main83247-2B090iAT17#,ST171..LHD..XL..GEN198712-199211

main83247-2B110iCT17#198712-199211

main83247-2B190iST171..EFI198712-199208

W(DIGITAL METER),NO.1

main83247-2B460iAT17#,ST171..RHD..XL198712-198911

main83247-2B670iST171..EFI198712-199208

W(DIGITAL METER),NO.2

main83247-2B680iAT17#,ST171..RHD..CBR198712-198911

MPH/KM,W(TACHOMETER)

main83247-2B720iAT17#,ST171..RHD..XL; AT171,ST171..RHD..GL198712-198911

KM,W(TACHOMETER)

main83247-2B770iAT171..LHD..4F;ST171..LHD..XL198712-199203

MIDDLE EAST SPEC

main83247-2B780iAT171..GCC; ST171..GCC198712-198911

KM,W(TACHOMETER)

main83247-2B800iAT171..LHD..4F;ST171..LHD..XL198712-198911

MIDDLE EAST SPEC & W(TACHOMETER)

main83247-2B820iAT17#,ST171..LHD..XL..GEN; AT171,ST171..LHD..GL..GEN198712-198911

W(TACHOMETER)

main83247-2B840iCT17#198712-198911

W(TACHOMETER)

main83247-2D220iAT17#,ST171..RHD..XL198911-199211

main83247-2D520iAT17#,ST171..RHD..CBR198911-199211

MPH/KM,W(TACHOMETER)

main83247-2D560iAT171,ST171..RHD..GL198911-199208

main83247-2D620iAT171,ST171..(GX,XL)..GCC; ST171..EXS,GT198911-199203

KM,W(TACHOMETER)

main83247-2D640iAT171..LHD..4F;ST171..LHD..XL198911-199203

MIDDLE EAST SPEC & W(TACHOMETER)

main83247-2D660iAT17#,ST171..LHD..XL..GEN198911-199211

W(TACHOMETER)

main83247-2D680iCT17#198911-199211

W(TACHOMETER)

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120100CASE, COMBINATION METER MIRROR, NO.1

main83161-20100

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

8316120720CASE, COMBINATION METER MIRROR, NO.1

main83161-20720

9356755016

main93567-55016

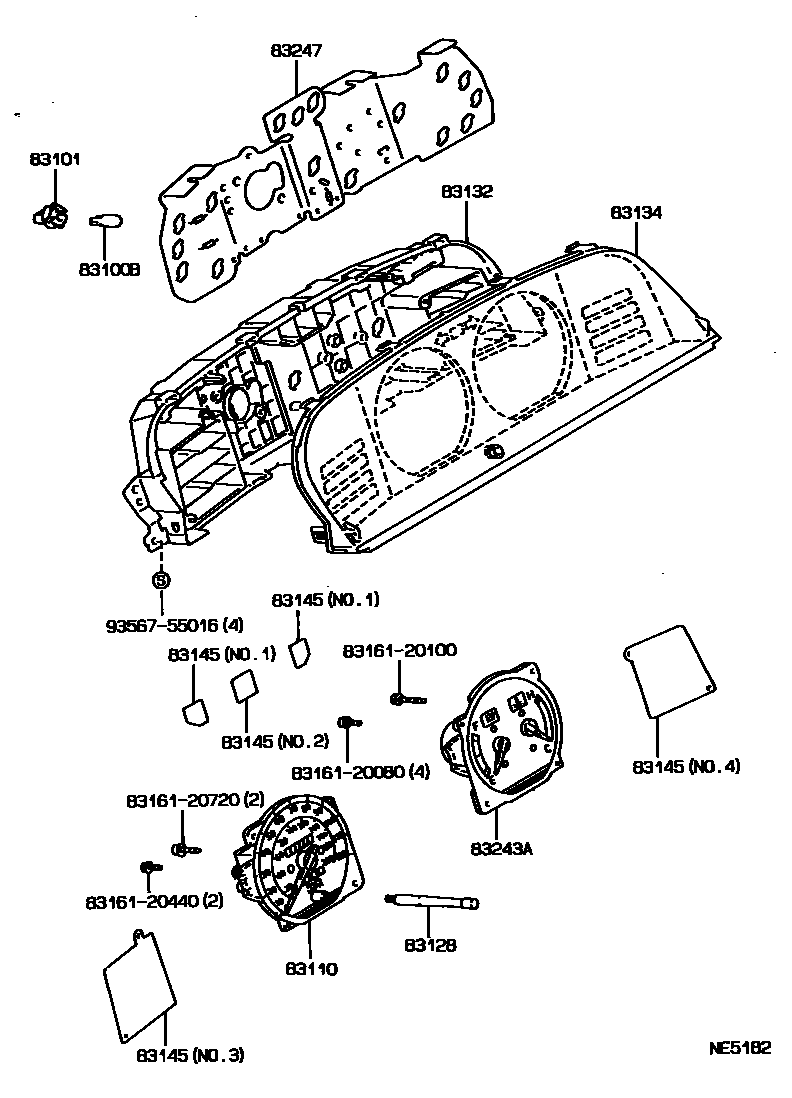

14 parts on this diagram · 7 diagrams in section
