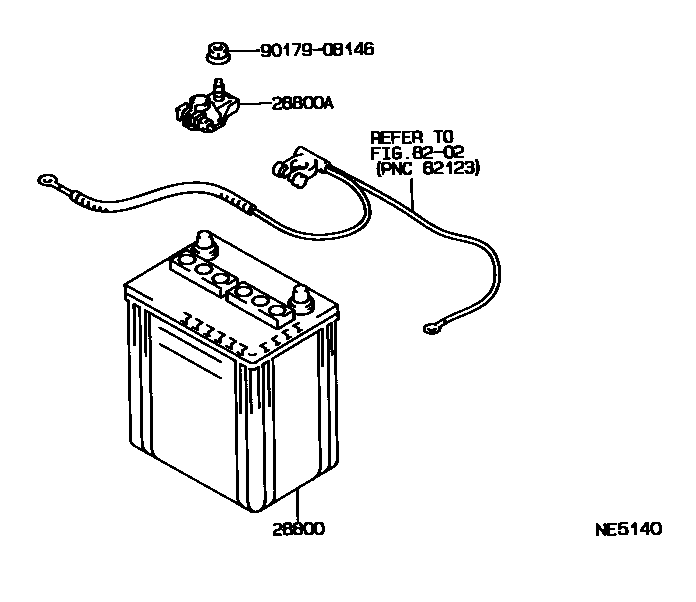

BATTERY & BATTERY CABLE

28800BATTERY

main28800-15050i4AF,3SF#..AT17#,ST171..GEN198712-198808

55D23L,GS

main28800-15060i4AF,3SF#..AT17#,ST171..GEN198712-198808

55D23L,YUASA

main28800-15070i4AF,3SF#..AT17#,ST171..GEN198712-198808

55D23L,SINKOBE

main28800-15080i4AF,3SF#..AT17#,ST171..GEN198712-198808

55D23L,MATSUSHITA

main28800-15090i4AF,3SF#..AT17#,ST171..GEN198712-198808

55D23L,FURUKAWA

main28800-31021i4AF,3SF#..AT17#,ST171198810-199211

32C24L

main28800-31031i4AF,3SF#..AT17#,ST171198712-198810

32C24L

main28800-31080i3SFE..ST171..SED;4AF,3SF..AT17#,ST171198712-199211

34B19L(S)

main28800-41110i3SFE..ST171..SED;4AF,3SF..AT17#,ST171..GEN198712-199211

55D26L

main28800-42030i4AF,3SF#..AT17#,ST171..GEN198808-199211

55D23L

main28800-54200i2C..CT17#198712-198808

80D26L

main28800-64130i2C..CT17#198808-199211

80D26L

main28800-70011i4AF,3SFE..AT171,ST171..RHD..SED..(4FC,5F)..GL198804-198808

34B19L

main28800-74060i3SFE..ST171..SED;4AF..AT171..RHD..5F..GL198808-199208

34B19L

28800ATERMINAL, BATTERY POSITIVE

main90982-05028i4AF,3SFE..AT171,ST171..RHD..SED..(4FC,5F)..GL198806-198911

W(34B19L-MF BATTERY)

main90982-05035i3SFE..ST171..SED;4AF,3SF..AT17#,ST171..GEN198911-199105

W(55D23L-MF OR 55D26L-MF BATTERY)

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

4 parts on this diagram · 1 diagram in section
