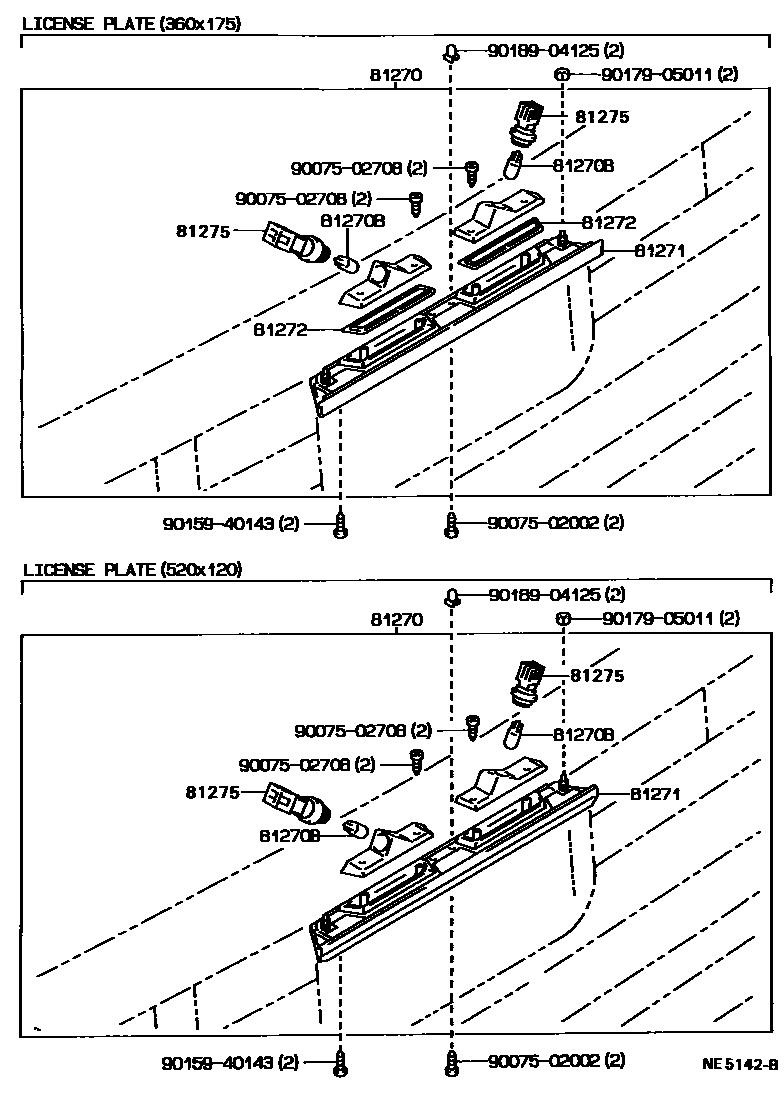

REAR LICENSE PLATE LAMP

0001 1 0003 1GEN=(EXTERIOR PACKAGE) 0004 1

81270LAMP ASSY, LICENSE PLATE

main81270-20380iAT171,CT170,ST171..SED198712-198911

main81270-20390iAT171,CT170,ST171..SED..GEN198712-198911

LICENSE PLATE(520X120)

main81270-20400iST171..LB..GL..CBR198712-199208

main81270-20410iST171..LB..GEN..CBR198712-199208

LICENSE PLATE(520X120)

main81270-20470iAT171,CT170,ST171..(LB,SED)..GEN..(CBR,DSL); ST171..EFI;AT171,ST171..GCC198911-199208

EXTERIOR PACKAGE

main81270-95501iAT177,CT177,ST171..WG198712-199211

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iAT17#,CT17#,ST171198712-199211

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-20380iAT171,CT170,ST171..SED..GEN..(CBR,DSL)198911-199208

main81271-20390iAT171,CT170,ST171..SED..GEN..(CBR,DSL)198911-199208

LICENSE PLATE(520X120)

main81271-20400iST171..LB..GL..CBR198712-199208

main81271-20410iST171..LB..GEN..CBR198712-199208

LICENSE PLATE(520X120)

main81271-20460×2iAT171,CT170,ST171..(LB,SED)..GEN..(CBR,DSL); ST171..EFI;AT171,ST171..GCC198911-199208

EXTERIOR PACKAGE

main81271-91C01×2iAT177,CT177,ST171..WG198712-199211

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20460×2iAT171,CT170,ST171..(LB,SED)..GEN..(CBR,DSL); ST171..EFI;AT171,ST171..GCC198911-199208

EXTERIOR PACKAGE

main81276-20380iAT171,CT170,ST171..(LB,SED)..GEN..(CBR,DSL)198911-199208

RH

main81277-20380iAT171,CT170,ST171..SED198712-198911

LH

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-20470iAT171,CT170,ST171..(LB,SED)..GEN..(CBR,DSL); ST171..EFI;AT171,ST171..GCC198911-199208

EXTERIOR PACKAGE

main90075-99011×2iAT171,CT170,ST171..LB,SED198712-198911

9007502002

main90075-02002

9007502708

main90075-02708

9015940143

main90159-40143

9017905011

main90179-05011

9018904125

main90189-04125

10 parts on this diagram · 3 diagrams in section
