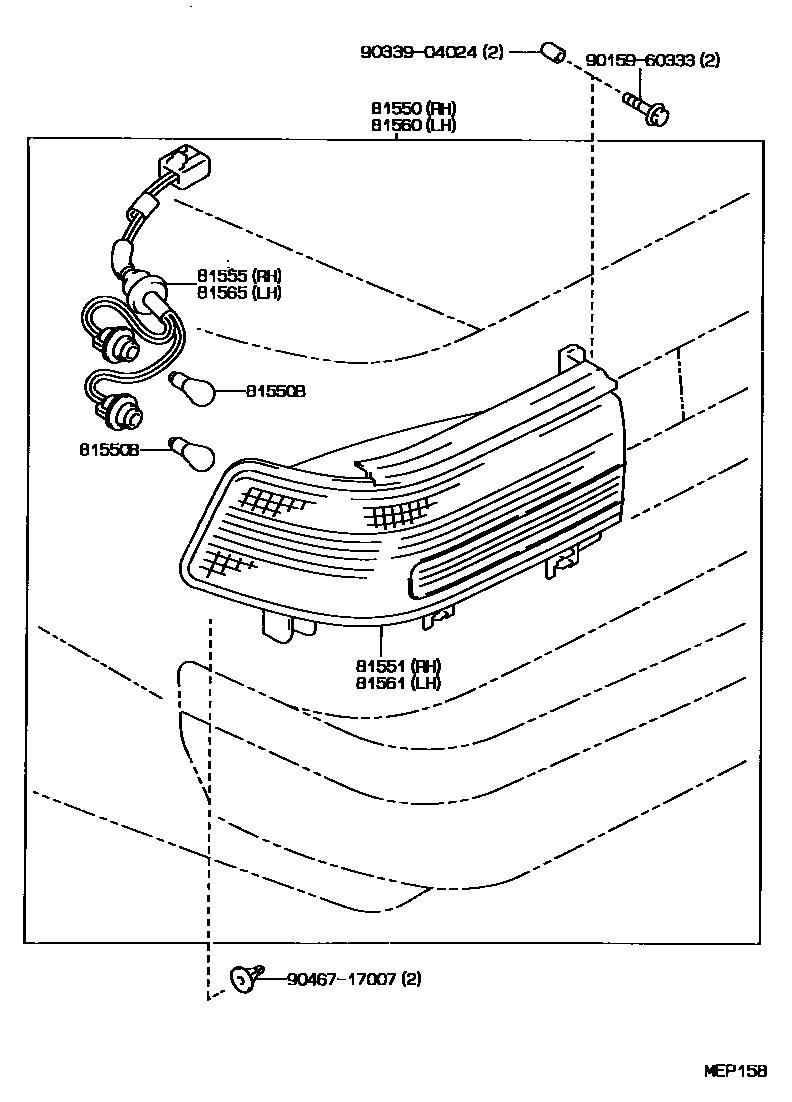

REAR COMBINATION LAMP

0001 1 0002 1 0004 1GEN=(EXTERIOR PACKAGE) 0005 1 0006 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-20840iAT171,ST171..SED..GL198712-199208

W(SIDE PROTECTION MOULDING-BRIGHT)

main81550-20850iAT171,CT170,ST171..SED..XL..GEN198712-199208

main81550-20850iST171..SED..GCC198712-198907

W(SIDE PROTECTION MOULDING)

main81550-20850iST171..SED..GCC198907-198911

W(SIDE PROTECTION MOULDING-BRIGHT) OR W(SIDE PROTECTION MOULDING)

main81550-20870iST171..LB198712-199208

main81550-2B120iAT171,CT170,ST171..SED..GEN..(CBR,DSL)198911-199208

EXTERIOR PACKAGE

main81550-2B130iST171..GT;ST171..LB..EFI198911-199203

main81550-2B130iST171..LB..GEN..CBR198911-199208

EXTERIOR PACKAGE

main81550-95503iAT177,CT177,ST171..WG198712-199211

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iAT171,CT170,ST171..LB,SED198712-199211

12V 21W

main99132-21210iAT17#,CT17#,ST171198712-199211

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-20840iAT171,ST171..SED..GL198712-199208

W(SIDE PROTECTION MOULDING-BRIGHT)

main81551-20850iAT171,CT170,ST171..SED..XL..GEN198712-199208

main81551-20850iST171..SED..GCC198907-198911

W(SIDE PROTECTION MOULDING-BRIGHT) OR W(SIDE PROTECTION MOULDING)

main81551-20850iST171..SED..GCC198712-198907

W(SIDE PROTECTION MOULDING)

main81551-20870iST171..LB198712-199208

main81551-2B120iAT171,CT170,ST171..SED..GEN..(CBR,DSL)198911-199208

EXTERIOR PACKAGE

main81551-2B130iST171..GT;ST171..LB..EFI198911-199203

main81551-2B130iST171..LB..GEN..CBR198911-199208

EXTERIOR PACKAGE

main81551-95503iAT177,CT177,ST171..WG198712-199211

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-20840iAT171,CT170,ST171..SED198712-199208

main81555-20870iST171..LB198712-199208

main81555-95503iAT177,CT177,ST171..WG198712-199211

81560LAMP ASSY, REAR COMBINATION, LH

main81560-20770iAT171,ST171..SED..GL..CBR198712-199208

W(SIDE PROTECTION MOULDING-BRIGHT)

main81560-20780iST171..SED..GCC198712-198907

W(SIDE PROTECTION MOULDING)

main81560-20780iAT171,CT170,ST171..SED..XL198712-199208

main81560-20780iST171..SED..GCC198907-198911

W(SIDE PROTECTION MOULDING-BRIGHT) OR W(SIDE PROTECTION MOULDING)

main81560-20800iST171..LB..GEN..CBR198712-199208

main81560-20860iST171..SED..EFI;AT171,ST171..SED..GCC198911-199208

EXTERIOR PACKAGE

main81560-20870iST171..GT;ST171..LB..EFI198911-199203

main81560-20870iST171..LB..GEN..CBR198911-199208

EXTERIOR PACKAGE

main81560-95502iAT177,CT177,ST171..WG198712-199211

81561LENS, REAR COMBINATION LAMP, LH

main81561-20770iAT171,ST171..SED..GL198712-199208

W(SIDE PROTECTION MOULDING-BRIGHT)

main81561-20780iAT171,CT170,ST171..SED..XL..GEN198712-199208

main81561-20780iST171..SED..GCC198712-198911

W(SIDE PROTECTION MOULDING)

main81561-20800iST171..LB198712-199208

main81561-20860iAT171,CT170,ST171..SED..GEN..(CBR,DSL)198911-199208

EXTERIOR PACKAGE

main81561-20870iST171..LB..GEN..CBR198911-199208

EXTERIOR PACKAGE

main81561-20870iST171..GT;ST171..LB..EFI198911-199203

main81561-95502iAT177,CT177,ST171..WG198712-199211

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-20840iAT171,CT170,ST171..SED198712-199208

main81555-20870iST171..LB198712-199208

main81555-95503iAT177,CT177,ST171..WG198712-199211

9015960333

main90159-60333

9033904024

main90339-04024

9046717007

main90467-17007

10 parts on this diagram · 5 diagrams in section
