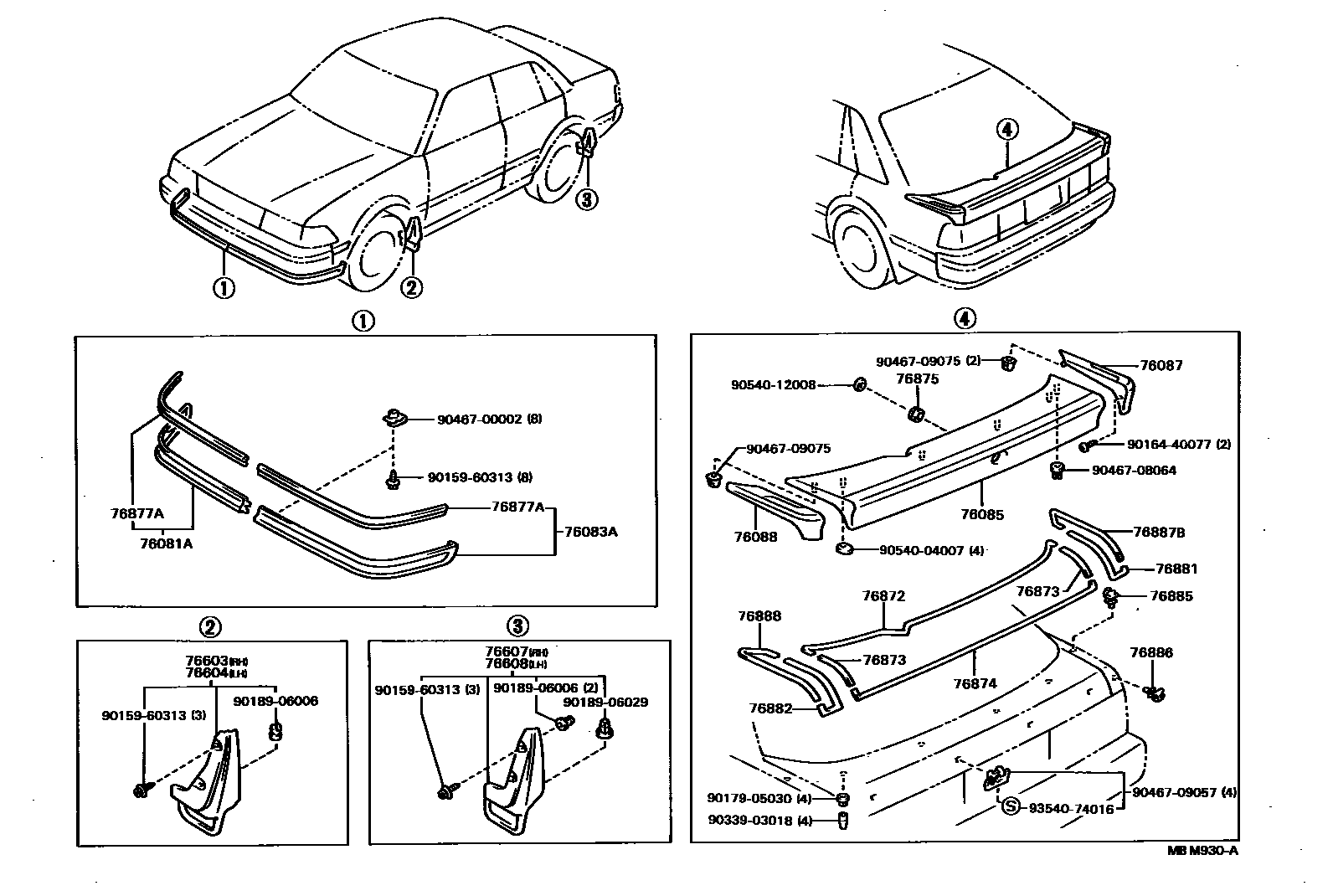

MUDGUARD & SPOILER
76081ASPOILER SUB-ASSY, FRONT RH
76083ASPOILER SUB-ASSY, FRONT LH
76085SPOILER SUB-ASSY, REAR
76087SPOILER SUB-ASSY, REAR NO.1
76088SPOILER SUB-ASSY, REAR NO.2
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
RH
76874PROTECTOR, REAR SPOILER, NO.3
76875PROTECTOR, REAR SPOILER, NO.4
76877APROTECTOR, FRONT SPOILER
76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76885RETAINER, REAR SPOILER, NO.5
76886RETAINER, REAR SPOILER, NO.6
76887BPROTECTOR, REAR SPOILER SIDE, NO.2
76888PROTECTOR, REAR SPOILER SIDE, NO.3
9015960313
main90159-60313
9016440077
main90164-40077
9017905030
main90179-05030
9018906006
main90189-06006
9018906029
main90189-06029
9033903018
main90339-03018
9046700002
main90467-00002
9046708064
main90467-08064
9046709057
main90467-09057
9046709075
main90467-09075
9054004007
main90540-04007
9054012008
main90540-12008
9354074016
main93540-74016
33 parts on this diagram · 2 diagrams in section
