SIDE MOULDING

0001 1 0002 1

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-20280iAT171,CT170,ST171..SED198712-199208

main75551-20310iST171..LB198712-199208

main75551-95505iAT177,CT177,ST171..WG198712-199211

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-20280iAT171,CT170,ST171..SED198712-199208

main75552-20310iST171..LB198712-199208

main75552-95505iAT177,CT177,ST171..WG198712-199211

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-20130iAT171,CT170,ST171..SED198712-199208

main75553-20140iST171..LB198712-199208

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-20110iAT171,CT170,ST171..SED198712-199208

main75554-20120iST171..LB198712-199208

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-20030iST171..SED..GL..GCC;AT171,CT170,ST171..SED..(GX,XL)198712-199208

main75555-20050iST171..LB..GCC198712-198911

main75555-95500iAT177,CT177,ST171..WG198712-199211

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-20030iST171..SED..GL..GCC;AT171,CT170,ST171..SED..(GX,XL)198712-199208

main75556-20050iST171..LB..GCC198712-198911

main75556-95500iAT177,CT177,ST171..WG198712-199211

75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH

main75557-20050iAT171,CT170,ST171..SED198712-199208

main75557-20060iST171..LB198712-199208

75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH

main75558-20060iAT171,CT170,ST171..SED198712-199208

main75558-20070iST171..LB198712-199208

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-20040×2iAT17#,CT17#,ST171198712-199211

BROWN

main75561-20050iAT17#,CT17#,ST171198712-199211

BLUE

main75561-20060iAT17#,CT17#,ST171198712-199211

GREEN

main75561-20070iAT17#,CT17#,ST171198712-199211

GRAY

main75561-20080iAT17#,CT17#,ST171198712-199211

RED

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75562-20020×18iAT171,CT170,ST171..LB,SED198712-199208

NATURAL

main75562-20030iAT17#,CT17#,ST171198712-199211

BLACK

main75562-20040iAT17#,CT17#,ST171198712-199211

YELLOW

main75562-20050iAT17#,CT17#,ST171198712-199211

VIOLET

main75562-20060iAT17#,CT17#,ST171198712-199211

ORANGE

75611CMOULDING, FRONT FENDER, OUTSIDE RH

main75611-20451iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN; ST171..WG;AT171..GCC;AT171,ST171..EXS,GL,GT,GX198911-199211

W(PLATING MOULDING)

main75611-20461iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN198911-199211

LARGE TYPE

main75611-20520iAT17#,CT17#,ST171..XL; AT171,ST171..GL198712-198911

W(PLATING MOULDING)

main75611-20530iST171..GCC;AT17#,CT17#,ST171..XL198712-198911

LARGE TYPE

75612CMOULDING, FRONT FENDER, OUTSIDE LH

main75612-20421iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN; ST171..WG;AT171..GCC;AT171,ST171..EXS,GL,GT,GX198911-199211

W(PLATING MOULDING)

main75612-20431iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN198911-199211

LARGE TYPE

main75612-20490iAT17#,CT17#,ST171..XL; AT171,ST171..GL198712-198911

W(PLATING MOULDING)

main75612-20500iST171..GCC;AT17#,CT17#,ST171..XL198712-198911

LARGE TYPE

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-20151iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN; ST171..WG;AT171..GCC;AT171,ST171..EXS,GL,GT,GX198911-199211

W(PLATING MOULDING)

main75623-20161iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN198911-199211

LARGE TYPE

main75623-20240iAT17#,CT17#,ST171..XL; AT171,ST171..GL198712-198911

W(PLATING MOULDING)

main75623-20250iST171..GCC;AT17#,CT17#,ST171..XL198712-198911

LARGE TYPE

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-20151iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN; ST171..WG;AT171..GCC;AT171,ST171..EXS,GL,GT,GX198911-199211

W(PLATING MOULDING)

main75624-20161iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN198911-199211

LARGE TYPE

main75624-20240iAT17#,CT17#,ST171..XL; AT171,ST171..GL198712-198911

W(PLATING MOULDING)

main75624-20250iST171..GCC;AT17#,CT17#,ST171..XL198712-198911

LARGE TYPE

75651MOULDING, QUARTER, OUTSIDE RH

main75651-20251iAT171,CT170,ST171..SED..XL..GEN; AT171..GCC;AT171,ST171..EXS,GL,GT,GX198911-199208

W(PLATING MOULDING)

main75651-20261iAT171,CT170,ST171..SED..XL..GEN198911-199208

LARGE TYPE

main75651-20360iAT171,CT170,ST171..SED..XL; AT171,ST171..GL198712-198911

W(PLATING MOULDING)

main75651-20370iST171..GCC;AT171,CT170,ST171..SED..XL198712-198911

LARGE TYPE

main75651-95506iAT177,CT177,ST171..WG198712-198911

W(PLATING MOULDING)

main75651-95507iAT177,CT177,ST171..WG198712-198911

LARGE TYPE

main75651-95508iAT177; CT177; ST171..WG198911-199211

W(PLATING MOULDING)

main75651-95509iAT177; CT177198911-199211

LARGE TYPE

75652MOULDING, QUARTER, OUTSIDE LH

main75652-20161iAT171,CT170,ST171..SED..XL..GEN; AT171..GCC;AT171,ST171..EXS,GL,GT,GX198911-199208

W(PLATING MOULDING)

main75652-20231iAT171,CT170,ST171..SED..XL..GEN198911-199208

LARGE TYPE

main75652-20330iAT171,CT170,ST171..SED..XL; AT171,ST171..GL198712-198911

W(PLATING MOULDING)

main75652-20340iST171..GCC;AT171,CT170,ST171..SED..XL198712-198911

LARGE TYPE

main75652-95506iAT177,CT177,ST171..WG198712-198911

W(PLATING MOULDING)

main75652-95507iAT177,CT177,ST171..WG198712-198911

LARGE TYPE

main75652-95508iAT177; CT177; ST171..WG198911-199211

W(PLATING MOULDING)

main75652-95509iAT177; CT177198911-199211

LARGE TYPE

75711BMOULDING, FRONT DOOR BELT, RH

main75711-20230iAT17#,CT17#,ST171198712-199211

75712BMOULDING, FRONT DOOR BELT, LH

main75712-20160iAT17#,CT17#,ST171198712-199211

75721AMOULDING, REAR DOOR BELT, RH

main75721-20180iAT17#,CT17#,ST171..SED,WG198712-199211

main75721-20200iST171..LB198712-199208

75722AMOULDING, REAR DOOR BELT, LH

main75722-20180iAT17#,CT17#,ST171..SED,WG198712-199211

main75722-20200iST171..LB198712-199208

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-20391iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN; ST171..WG;AT171..GCC;AT171,ST171..EXS,GL,GT,GX198911-199211

W(PLATING MOULDING)

main75731-20401iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN198911-199211

LARGE TYPE

main75731-20480iAT17#,CT17#,ST171..XL; AT171,ST171..GL198712-198911

W(PLATING MOULDING)

main75731-20490iST171..GCC;AT17#,CT17#,ST171..XL198712-198911

LARGE TYPE

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-20391iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN; ST171..WG;AT171..GCC;AT171,ST171..EXS,GL,GT,GX198911-199211

W(PLATING MOULDING)

main75732-20401iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN198911-199211

LARGE TYPE

main75732-20480iAT17#,CT17#,ST171..XL; AT171,ST171..GL198712-198911

W(PLATING MOULDING)

main75732-20490iST171..GCC;AT17#,CT17#,ST171..XL198712-198911

LARGE TYPE

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-20511iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN; ST171..WG;AT171..GCC;AT171,ST171..EXS,GL,GT,GX198911-199211

W(PLATING MOULDING)

main75741-20521iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN198911-199211

LARGE TYPE

main75741-20580iAT17#,CT17#,ST171..XL; AT171,ST171..GL198712-198911

W(PLATING MOULDING)

main75741-20590iST171..GCC;AT17#,CT17#,ST171..XL198712-198911

LARGE TYPE

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-20491iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN; ST171..WG;AT171..GCC;AT171,ST171..EXS,GL,GT,GX198911-199211

W(PLATING MOULDING)

main75742-20501iAT177; ST171..SED..XL;AT171,CT17#..XL..GEN198911-199211

LARGE TYPE

main75742-20560iAT17#,CT17#,ST171..XL; AT171,ST171..GL198712-198911

W(PLATING MOULDING)

main75742-20570iST171..GCC;AT17#,CT17#,ST171..XL198712-198911

LARGE TYPE

75851MOULDING, ROCKER PANEL, RH

main75850-29215iAT17#,CT17#,ST171198712-198805

main75850-29216iAT17#,CT17#,ST171198805-199008

main75850-29217iAT17#,CT17#,ST171199008-199211

75852MOULDING, ROCKER PANEL, LH

main75850-29215iAT17#,CT17#,ST171198712-198805

main75850-29216iAT17#,CT17#,ST171198805-199008

main75850-29217iAT17#,CT17#,ST171199008-199211

75867ACLIP, ROCKER PANEL MOULDING

main75867-20030×4iAT17#,CT17#,ST171198712-199211

9016840087

main90168-40087

9018904130

main90189-04130

9018905075

main90189-05075

9018905084

main90189-05084

9353074516

main93530-74516

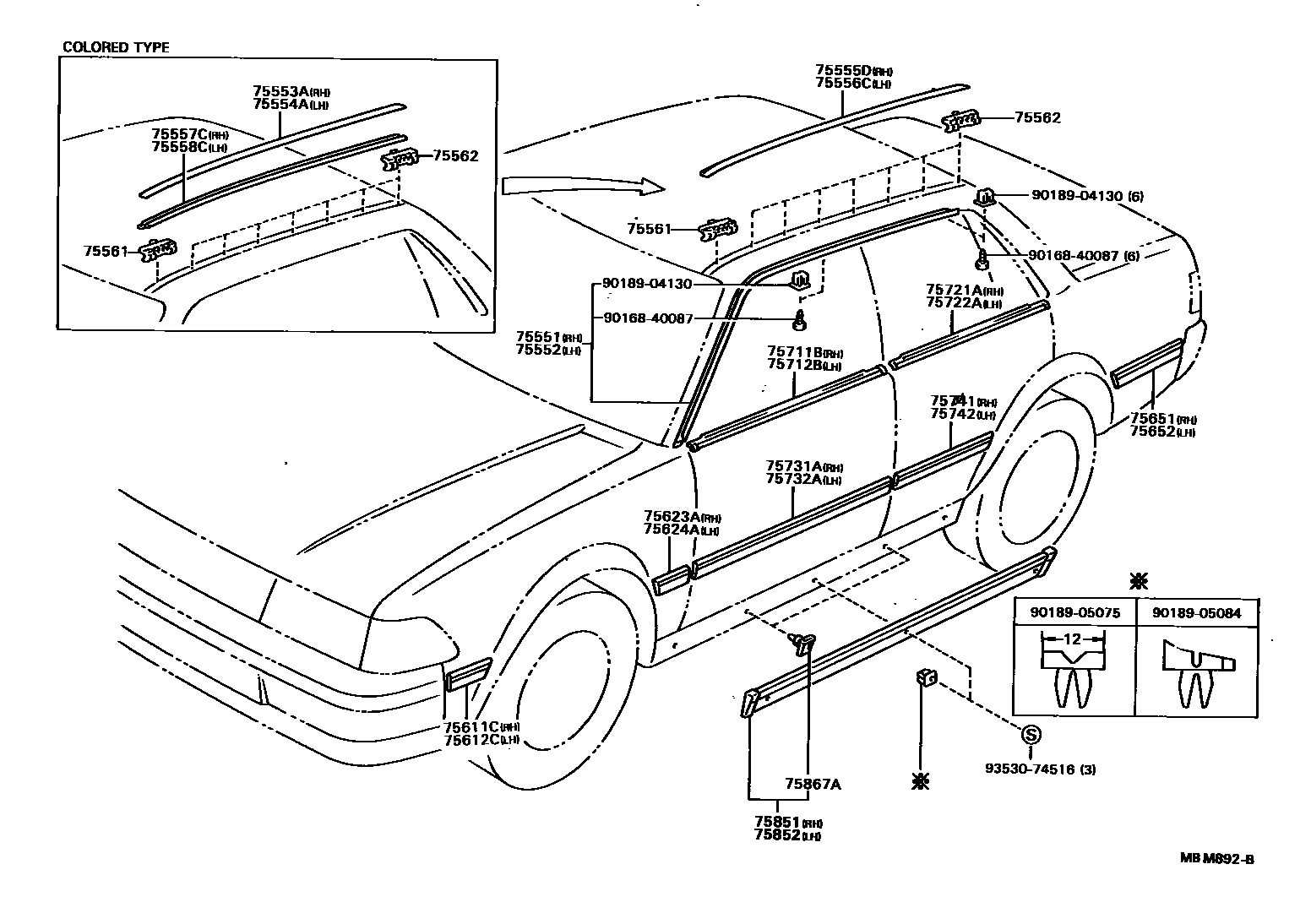

32 parts on this diagram · 2 diagrams in section
