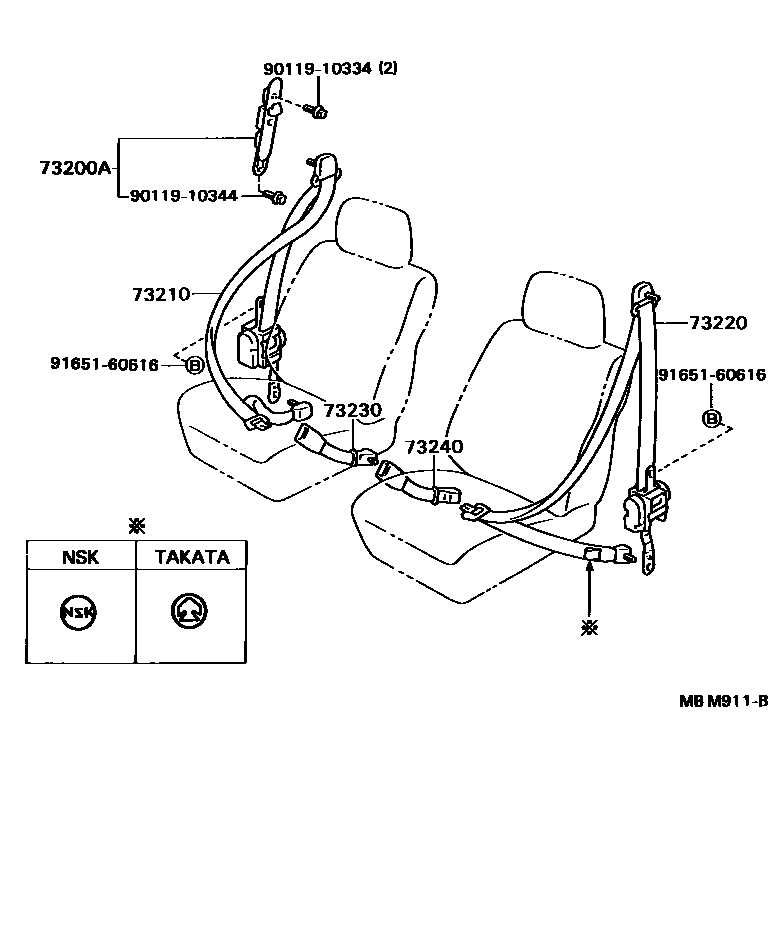

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-20030-03×2iST171..SED..EFI198911-199208

GRAY,TRIM1#

main73200-20030-04×2iST171..SED..EFI198911-199208

DARK BLUE,TRIM8#

main73200-20030-06×2iST171..SED..EFI198911-199208

SABLE,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-20430-03iST171..SED..EFI198911-199208

SINGAPORE SPEC & MALAYSIA SPEC,GRAY,TRIM1#,NSK

main73210-20430-06iST171..SED..EFI198911-199208

SINGAPORE SPEC & MALAYSIA SPEC,SABLE,TRIM4#,NSK

main73210-20430-14iST171..SED..EFI198911-199208

SINGAPORE SPEC & MALAYSIA SPEC,DARK BLUE,TRIM8#,NSK

main73210-20440-03iAT177,CT17#;ST171..SED..EFI;ST171..LHD..GL..GEN;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL198712-198911

GRAY,TRIM1#,NSK-WARNER

main73210-20440-04iAT177,CT17#;ST171..SED..EFI;ST171..LHD..GL..GEN;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL198712-198911

BLUE,TRIM8#,NSK-WARNER

main73210-20440-06iAT171,CT170..LHD..(3FC,5F)..XL..GEN; AT171,ST171..GL..CBR; AT171,ST171..RHD..SED..XL; ST171..SED..EFI199011-199208

NSK,SABLE,SABLE,TRIM4#; SABLE,TRIM4#,NSK

main73210-20440-14iAT171,CT170..LHD..(3FC,5F)..XL..GEN; AT171,ST171..RHD..SED..XL; ST171..SED..EFI199011-199208

DARK BLUE,TRIM8#,NSK; NSK,DARK BLUE,DARK BLUE,TRIM8#

main73210-20470-03iAT171,ST171..GCC; AT171..LHD..4F;ST171..LHD..XL; AT177,CT17#;ST171..SED..EFI;ST171..LHD..GL..GEN;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL198712-198911

GRAY,TRIM1#; GRAY,TRIM1#,TAKATA; MIDDLE EAST SPEC,GRAY,TRIM1#

main73210-20470-04iAT171,ST171..SED..GCC; AT171..LHD..4F;ST171..LHD..XL; AT177,CT17#;ST171..SED..EFI;ST171..LHD..GL..GEN;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL198712-198911

BLUE,TRIM8#; BLUE,TRIM8#,TAKATA; MIDDLE EAST SPEC,BLUE,TRIM8#

main73210-20470-06iAT171,ST171..SED..GCC; AT171..LHD..4F;ST171..LHD..XL; ST171..SED..EFI;ST171..LHD..GL..GEN;AT171,CT170..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR198712-198911

MIDDLE EAST SPEC,SABLE,TRIM4#; SABLE,TRIM4#; SABLE,TRIM4#,TAKATA

main73210-20580-03iST171..SED..EFI198911-199208

SINGAPORE SPEC & MALAYSIA SPEC,GRAY,TRIM1#,TAKATA

main73210-20580-04iST171..SED..EFI198911-199208

SINGAPORE SPEC & MALAYSIA SPEC,DARK BLUE,TRIM8#,TAKATA

main73210-20580-06iST171..SED..EFI198911-199208

SINGAPORE SPEC & MALAYSIA SPEC,SABLE,TRIM4#,TAKATA

main73210-20590-03iAT171,ST171..GCC; AT177,CT17#;ST171..LHD..GL;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL;ST171..SED..EFI198911-199211

GRAY,TRIM1#; GRAY,TRIM1#,TAKATA

main73210-20590-04iAT171,ST171..SED..GCC; AT177,CT17#;ST171..LHD..GL;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL;ST171..SED..EFI198911-199211

DARK BLUE,TRIM8#; DARK BLUE,TRIM8#,TAKATA

main73210-20590-06iAT171,ST171..SED..GCC; AT171..LHD..4F;ST171..LHD..XL;ST171..SED..EFI; ST171..LHD..GL;AT171,ST171..RHD..(LB,SED)..CBR;AT171,CT170..LHD..(3FC,5F)..GEN198911-199208

SABLE,TRIM4#; SABLE,TRIM4#,TAKATA

main73210-95509-03iST171..WG198911-199211

GRAY,TRIM1#

main73210-95509-04iST171..WG198911-199211

DARK BLUE,TRIM8#

main73210-95510-03iST171..WG198810-198911

GRAY,TRIM1#

main73210-95510-04iST171..WG198810-198911

BLUE,TRIM8#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-20290-03iST171..SED..EFI198911-199208

SINGAPORE SPEC & MALAYSIA SPEC,GRAY,TRIM1#,NSK

main73220-20290-06iST171..SED..EFI198911-199208

SINGAPORE SPEC & MALAYSIA SPEC,SABLE,TRIM4#,NSK

main73220-20290-14iST171..SED..EFI198911-199208

SINGAPORE SPEC & MALAYSIA SPEC,DARK BLUE,TRIM8#,NSK

main73220-20300-03iAT177,CT17#;ST171..LHD..GL;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL;ST171..SED..EFI198911-199211

GRAY,TRIM1#,NSK

main73220-20300-04iAT177,CT17#;ST171..SED..EFI;ST171..LHD..GL..GEN;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL198712-198911

BLUE,TRIM8#,NSK-WARNER

main73220-20300-06iAT171..LHD..4F;ST171..LHD..XL; ST171..SED..EFI;ST171..LHD..GL..GEN;AT171,CT170..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR198712-198911

SABLE,TRIM4#,NSK-WARNER

main73220-20300-14iAT177,CT17#;ST171..LHD..GL;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL;ST171..SED..EFI198911-199211

DARK BLUE,TRIM8#,NSK

main73220-20330-03iAT171,ST171..GCC; AT171..LHD..4F;ST171..LHD..XL; AT177,CT17#;ST171..SED..EFI;ST171..LHD..GL..GEN;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL198712-198911

GRAY,TRIM1#; GRAY,TRIM1#,TAKATA; MIDDLE EAST SPEC,GRAY,TRIM1#

main73220-20330-04iAT171,ST171..SED..GCC; AT171..LHD..4F;ST171..LHD..XL; AT177,CT17#;ST171..SED..EFI;ST171..LHD..GL..GEN;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL198712-198911

BLUE,TRIM8#; BLUE,TRIM8#,TAKATA; MIDDLE EAST SPEC,BLUE,TRIM8#

main73220-20330-06iAT171,ST171..SED..GCC; AT171..LHD..4F;ST171..LHD..XL; ST171..SED..EFI;ST171..LHD..GL..GEN;AT171,CT170..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR198712-198911

MIDDLE EAST SPEC,SABLE,TRIM4#; SABLE,TRIM4#; SABLE,TRIM4#,TAKATA

main73220-20430-03iST171..SED..EFI198911-199208

SINGAPORE SPEC & MALAYSIA SPEC,GRAY,TRIM1#,TAKATA

main73220-20430-04iST171..SED..EFI198911-199208

SINGAPORE SPEC & MALAYSIA SPEC,DARK BLUE,TRIM8#,TAKATA

main73220-20430-06iST171..SED..EFI198911-199208

SINGAPORE SPEC & MALAYSIA SPEC,SABLE,TRIM4#,TAKATA

main73220-20440-03iAT171,ST171..GCC; AT177,CT17#;ST171..LHD..GL;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL;ST171..SED..EFI198911-199211

GRAY,TRIM1#; GRAY,TRIM1#,TAKATA

main73220-20440-04iAT171,ST171..SED..GCC; AT177,CT17#;ST171..LHD..GL;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL;ST171..SED..EFI198911-199211

DARK BLUE,TRIM8#; DARK BLUE,TRIM8#,TAKATA

main73220-20440-06iAT171,ST171..SED..GCC; AT171..LHD..4F;ST171..LHD..XL;ST171..SED..EFI; ST171..LHD..GL;AT171,ST171..RHD..(LB,SED)..CBR;AT171,CT170..LHD..(3FC,5F)..GEN198911-199208

SABLE,TRIM4#; SABLE,TRIM4#,TAKATA

main73220-95505-03iST171..WG198911-199211

GRAY,TRIM1#

main73220-95505-04iST171..WG198911-199211

DARK BLUE,TRIM8#

main73220-95506-03iST171..WG198810-198911

GRAY,TRIM1#

main73220-95506-04iST171..WG198810-198911

BLUE,TRIM8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-20440-03iAT177,CT17#;ST171..SED..EFI;ST171..LHD..GL..GEN;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL198712-198911

GRAY,TRIM1#,NSK-WARNER

main73230-20440-04iAT177,CT17#;ST171..SED..EFI;ST171..LHD..GL..GEN;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL198712-198911

BLUE,TRIM8#,NSK-WARNER

main73230-20440-06iAT171..LHD..4F;ST171..LHD..XL;ST171..SED..EFI; ST171..LHD..GL;AT171,ST171..RHD..(LB,SED)..CBR;AT171,CT170..LHD..(3FC,5F)..GEN198911-199208

SABLE,TRIM4#,NSK

main73230-20440-14iAT177,CT17#;ST171..LHD..GL;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL;ST171..SED..EFI198911-199211

DARK BLUE,TRIM8#,NSK

main73230-20450-03iAT177,CT17#;ST171..SED..EFI;ST171..LHD..GL..GEN;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL198712-198911

GRAY,TRIM1#,TAKATA

main73230-20450-04iAT171,ST171..SED..GCC; AT171..LHD..4F;ST171..LHD..XL; AT177,CT17#;ST171..SED..EFI;ST171..LHD..GL..GEN;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL198712-198911

BLUE,TRIM8#; BLUE,TRIM8#,TAKATA; MIDDLE EAST SPEC,BLUE,TRIM8#

main73230-20450-06iAT171..LHD..4F;ST171..LHD..XL; ST171..SED..EFI;ST171..LHD..GL..GEN;AT171,CT170..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR198712-198911

SABLE,TRIM4#,TAKATA

main73230-20450-14iAT171,ST171..SED..GCC; ST171..WG;AT171..LHD..4F;ST171..LHD..XL;ST171..SED..EFI198911-199211

DARK BLUE,TRIM8#; DARK BLUE,TRIM8#,TAKATA

main73230-95501-03iST171..WG198810-198911

GRAY,TRIM1#

main73230-95501-04iST171..WG198810-198911

BLUE,TRIM8#

main73230-95501-14iST171..WG198911-199211

DARK BLUE,TRIM8#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-20440-03iAT177,CT17#;ST171..SED..EFI;ST171..LHD..GL..GEN;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL198712-198911

GRAY,TRIM1#,NSK-WARNER

main73230-20440-04iAT177,CT17#;ST171..SED..EFI;ST171..LHD..GL..GEN;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL198712-198911

BLUE,TRIM8#,NSK-WARNER

main73230-20440-06iAT171..LHD..4F;ST171..LHD..XL;ST171..SED..EFI; ST171..LHD..GL;AT171,ST171..RHD..(LB,SED)..CBR;AT171,CT170..LHD..(3FC,5F)..GEN198911-199208

SABLE,TRIM4#,NSK

main73230-20440-14iAT177,CT17#;ST171..LHD..GL;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL;ST171..SED..EFI198911-199211

DARK BLUE,TRIM8#,NSK

main73230-20450-03iAT177,CT17#;ST171..LHD..GL;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL;ST171..SED..EFI198911-199211

GRAY,TRIM1#,TAKATA

main73230-20450-04iAT177,CT17#;ST171..SED..EFI;ST171..LHD..GL..GEN;AT171..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;AT171..LHD..4F;ST171..LHD..XL198712-198911

BLUE,TRIM8#,TAKATA

main73230-20450-06iAT171..LHD..4F;ST171..LHD..XL; ST171..SED..EFI;ST171..LHD..GL..GEN;AT171,CT170..LHD..(3FC,5F)..GEN;AT171,ST171..RHD..(LB,SED)..CBR198712-198911

SABLE,TRIM4#,TAKATA

main73230-20450-14iST171..WG;AT171..LHD..4F;ST171..LHD..XL;ST171..SED..EFI198911-199211

DARK BLUE,TRIM8#,TAKATA

main73230-95501-03iST171..WG199011-199211

GRAY,TRIM1#

main73230-95501-04iST171..WG198810-198911

BLUE,TRIM8#

main73230-95501-14iST171..WG198911-199211

DARK BLUE,TRIM8#

main73240-20150-03iAT171,ST171..GCC; AT171..LHD..4F;ST171..LHD..XL198712-199203

GRAY,TRIM1#; MIDDLE EAST SPEC,GRAY,TRIM1#

main73240-20150-04iAT171,ST171..SED..GCC; AT171..LHD..4F;ST171..LHD..XL198712-198911

BLUE,TRIM8#; MIDDLE EAST SPEC,BLUE,TRIM8#

main73240-20150-06iAT171,ST171..SED..GCC; AT171..LHD..4F;ST171..LHD..XL198712-199203

MIDDLE EAST SPEC,SABLE,TRIM4#; SABLE,TRIM4#

main73240-20150-14iAT171,ST171..SED..GCC; AT171..LHD..4F;ST171..LHD..XL198911-199203

DARK BLUE,TRIM8#; MIDDLE EAST SPEC,DARK BLUE,TRIM8#

9011910334

main90119-10334

9011910344

main90119-10344

9165160616

main91651-60616

8 parts on this diagram · 2 diagrams in section
