FRONT SEAT & SEAT TRACK

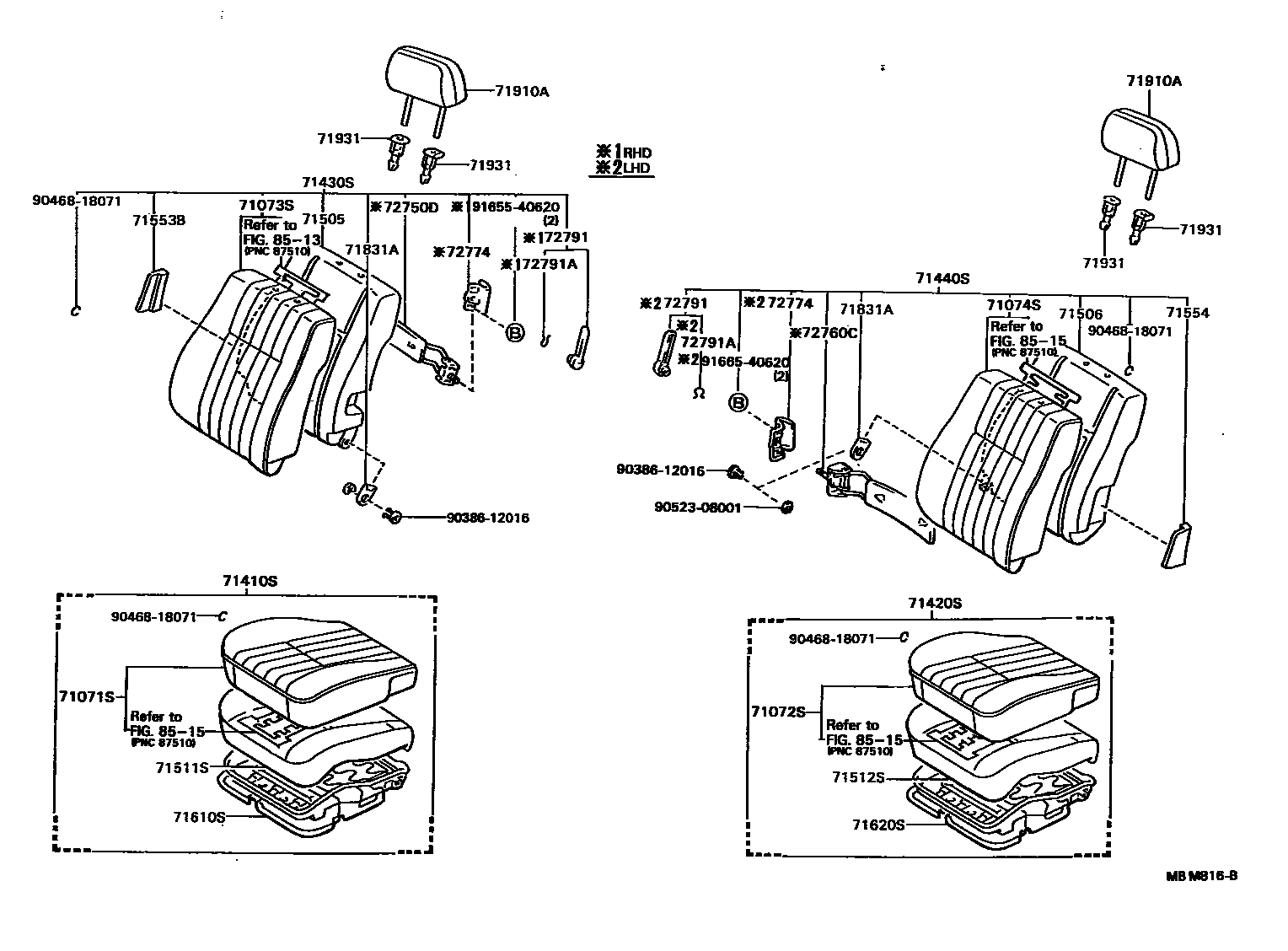

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-2D070-03i198712-198911
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71071-2D070-04i198712-198911
BLUE,TRIM8#; W(FABRIC SEAT),BLUE,TRIM8#
main71071-2D070-06i198903-198911
XL PACKAGE,SABLE,TRIM4#
main71071-2D071-03i198911-199011
GARY,TRIM1#; W(FABRIC SEAT),GARY,TRIM1#
main71071-2D071-04i198911-199011
DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#
main71071-2D071-06i198911-199011
SABLE,TRIM4#
main71071-2D072-03i199011-199211
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71071-2D072-04i199011-199211
DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#
main71071-2D072-06i199011-199208
SABLE,TRIM4#
main71071-2D080-03i198712-198911
W(FABRIC SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#; W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71071-2D080-04i198712-198911
W(FABRIC SEAT & VERTICAL ADJUSTER),BLUE,TRIM8#; W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71071-2D080-06i198712-198911
W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71071-2D081-03i198911-199011
W(FABRIC SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#; W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71071-2D081-04i198911-199011
W(FABRIC SEAT & VERTICAL ADJUSTER),DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#; W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71071-2D081-06i198911-199011
W(FABRIC SEAT),SABLE,TRIM4#
main71071-2D082-03i199011-199211
W(FABRIC SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#; W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71071-2D082-04i199011-199211
W(FABRIC SEAT & VERTICAL ADJUSTER),DARK BLUE,TRIM8#; W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71071-2D082-06i199011-199208
W(FABRIC SEAT),SABLE,TRIM4#
main71071-2D090-03i198712-198911
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71071-2D090-04i198712-198911
BLUE,TRIM8#; W(FABRIC SEAT),BLUE,TRIM8#
main71071-2D090-06i198712-198911
SABLE,TRIM4#; W(FABRIC SEAT),SABLE,TRIM4#
main71071-2D091-03i198911-199208
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71071-2D091-04i198911-199208
DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#
main71071-2D091-06i198911-199208
SABLE,TRIM4#; W(FABRIC SEAT),SABLE,TRIM4#
main71071-2D140-03i198712-198911
GRAY,TRIM1#
main71071-2D141-03i198911-199208
GARY,TRIM1#
main71071-2D160-03i198712-198911
GRAY,TRIM1#; W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71071-2D160-04i198712-198911
BLUE,TRIM8#; W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71071-2D190-03i198712-198911
W(FABRIC SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#; W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71071-2D190-04i198712-198911
W(FABRIC SEAT & VERTICAL ADJUSTER),BLUE,TRIM8#; W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71071-2D190-06i198712-198911
W(FABRIC SEAT & VERTICAL ADJUSTER),SABLE,TRIM4#; W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71071-2D200-03i198712-198911
W(LUXURY SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71071-2D200-04i198712-198911
W(LUXURY SEAT & VERTICAL ADJUSTER),BLUE,TRIM8#
main71071-2D200-06i198712-198911
W(LUXURY SEAT & VERTICAL ADJUSTER),SABLE,TRIM4#
main71071-2D201i199202-199208
W(LUXURY SEAT & VERTICAL ADJUSTER)
main71071-2D201-03i198911-199202
W(LUXURY SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71071-2D201-04i198911-199202
W(LUXURY SEAT & VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71071-2D201-06i198911-199202
W(LUXURY SEAT & VERTICAL ADJUSTER),SABLE,TRIM4#
main71071-2D210-03i198712-198911
W(SPORT SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#; W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71071-2D211-03i198911-199208
W(SPORT SEAT & VERTICAL ADJUSTER),GARY,TRIM1#; W(VERTICAL ADJUSTER),GARY,TRIM1#
main71071-2D860-03i198911-199208
W(FABRIC SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#; W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71071-2D860-04i198911-199208
W(FABRIC SEAT & VERTICAL ADJUSTER),DARK BLUE,TRIM8#; W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71071-2D860-06i198911-199208
W(FABRIC SEAT & VERTICAL ADJUSTER),SABLE,TRIM4#; W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71071-95501-03i198712-198911
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71071-95501-04i198712-198911
W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71071-95504-03i198911-199211
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71071-95504-04i198911-199211
W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71071-95508-03i198911-199211
GRAY,TRIM1#
main71071-95508-04i198911-199211
DARK BLUE,TRIM8#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-2B370-03i198712-198911
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71072-2B370-04i198712-198911
BLUE,TRIM8#; W(FABRIC SEAT),BLUE,TRIM8#
main71072-2B370-06i198712-198911
SABLE,TRIM4#
main71072-2B371-03i198911-199011
GARY,TRIM1#; W(FABRIC SEAT),GARY,TRIM1#
main71072-2B371-04i198911-199011
DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#
main71072-2B371-06i198911-199011
SABLE,TRIM4#
main71072-2B372-03i199011-199211
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71072-2B372-04i199011-199211
DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#
main71072-2B372-06i199011-199208
SABLE,TRIM4#
main71072-2B390-03i198712-198911
W(FABRIC SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#; W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71072-2B390-04i198903-198911
XL PACKAGE & W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71072-2B390-06i198903-198911
XL PACKAGE & W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71072-2B391-03i198911-199011
W(FABRIC SEAT & VERTICAL ADJUSTER),GARY,TRIM1#; W(VERTICAL ADJUSTER),GARY,TRIM1#
main71072-2B391-04i198911-199011
W(FABRIC SEAT & VERTICAL ADJUSTER),DARK BLUE,TRIM8#; W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71072-2B391-06i198911-199011
W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71072-2B392-03i199011-199203
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71072-2B392-04i199011-199211
W(FABRIC SEAT & VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71072-2B392-06i199011-199203
W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71072-2B400-03i198712-198911
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71072-2B400-04i198712-198911
W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71072-2B400-06i198712-198911
W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71072-2B401-03i198911-199208
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71072-2B401-04i198911-199208
W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71072-2B401-06i198911-199208
W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71072-2B440-03i198712-198911
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71072-2B460-03i198712-198911
GRAY,TRIM1#; W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71072-2B460-04i198712-198911
BLUE,TRIM8#; W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71072-2B490-03i198712-198911
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71072-2B490-04i198712-198911
BLUE,TRIM8#; W(FABRIC SEAT),BLUE,TRIM8#
main71072-2B490-06i198712-198911
SABLE,TRIM4#; W(FABRIC SEAT),SABLE,TRIM4#
main71072-2B501-03i198911-199208
W(FABRIC SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71072-2B501-04i198911-199208
W(FABRIC SEAT & VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71072-2B501-06i198911-199208
W(FABRIC SEAT & VERTICAL ADJUSTER),SABLE,TRIM4#
main71072-2B510-03i198712-198911
GRAY,TRIM1#; W(SPORT SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71072-2B511-03i198911-199208
GARY,TRIM1#; W(SPORT SEAT & VERTICAL ADJUSTER),GARY,TRIM1#
main71072-2B670-03i198911-199208
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71072-2B670-04i198911-199208
DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#
main71072-2B670-06i198911-199208
SABLE,TRIM4#; W(FABRIC SEAT),SABLE,TRIM4#
main71072-2D390-03i198911-199203
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71072-95501-03i198712-198911
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71072-95501-04i198712-198911
W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71072-95502-03i198911-199211
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71072-95502-04i198911-199211
W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71072-95505-03i198911-199211
GRAY,TRIM1#
main71072-95505-04i198911-199211
DARK BLUE,TRIM8#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-2D030-03i198903-198911
XL PACKAGE,GRAY,TRIM1#
main71073-2D030-04i198712-198911
BLUE,TRIM8#; W(FABRIC SEAT),BLUE,TRIM8#
main71073-2D030-06i198712-198911
SABLE,TRIM4#
main71073-2D031-03i198911-199011
GARY,TRIM1#; W(FABRIC SEAT),GARY,TRIM1#
main71073-2D031-04i198911-199011
DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#
main71073-2D031-06i198911-199011
SABLE,TRIM4#
main71073-2D032-03i199011-199208
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71073-2D032-04i199011-199208
DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#
main71073-2D032-06i199011-199208
SABLE,TRIM4#
main71073-2D070-03i198712-198911
W(LUMBAR SUPPORT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71073-2D070-04i198712-198911
W(LUMBAR SUPPORT & VERTICAL ADJUSTER),BLUE,TRIM8#
main71073-2D100-03i198712-198911
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71073-2D100-04i198712-198911
BLUE,TRIM8#; W(FABRIC SEAT),BLUE,TRIM8#
main71073-2D100-06i198712-198911
SABLE,TRIM4#; W(FABRIC SEAT),SABLE,TRIM4#
main71073-2D110-03i198712-198911
W(LUXURY SEAT),GRAY,TRIM1#
main71073-2D110-04i198712-198911
W(LUXURY SEAT),BLUE,TRIM8#
main71073-2D110-06i198712-198911
W(LUXURY SEAT),SABLE,TRIM4#
main71073-2D111-03i198911-199208
W(LUXURY SEAT),GRAY,TRIM1#
main71073-2D111-04i198911-199208
W(LUXURY SEAT),DARK BLUE,TRIM8#
main71073-2D111-06i198911-199208
W(LUXURY SEAT),SABLE,TRIM4#
main71073-2D120-03i198712-198911
GRAY,TRIM1#; W(SPORTS SEAT),GRAY,TRIM1#
main71073-2D121-03i198911-199208
GRAY,TRIM1#; W(LUXURY SEAT),GRAY,TRIM1#
main71073-2D211-03i198911-199208
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71073-2D211-04i198911-199208
DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#
main71073-2D211-06i198911-199208
SABLE,TRIM4#; W(FABRIC SEAT),SABLE,TRIM4#
main71073-95506-03i198911-199211
GRAY,TRIM1#
main71073-95506-04i198911-199211
DARK BLUE,TRIM8#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-2B600-03i198712-198911
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71074-2B600-04i198903-198911
XL PACKAGE,BLUE,TRIM8#
main71074-2B600-06i198712-198911
SABLE,TRIM4#
main71074-2B601-03i198911-199011
GARY,TRIM1#; W(FABRIC SEAT),GARY,TRIM1#
main71074-2B601-04i198911-199011
DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#
main71074-2B601-06i198911-199011
SABLE,TRIM4#
main71074-2B602-03i199011-199211
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71074-2B602-04i199011-199211
DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#
main71074-2B602-06i199011-199211
SABLE,TRIM4#
main71074-2B640-03i198712-198911
W(LUMBAR SUPPORT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71074-2B640-04i198712-198911
W(LUMBAR SUPPORT & VERTICAL ADJUSTER),BLUE,TRIM8#
main71074-2B670-03i198712-198911
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71074-2B670-04i198712-198911
BLUE,TRIM8#; W(FABRIC SEAT),BLUE,TRIM8#
main71074-2B670-06i198712-198911
SABLE,TRIM4#; W(FABRIC SEAT),SABLE,TRIM4#
main71074-2B680-03i198712-198911
W(LUXURY SEAT),GRAY,TRIM1#
main71074-2B680-04i198712-198911
W(LUXURY SEAT & VERTICAL ADJUSTER),BLUE,TRIM8#
main71074-2B680-06i198712-198911
W(LUXURY SEAT & VERTICAL ADJUSTER),SABLE,TRIM4#
main71074-2B681-03i198911-199208
W(LUXURY SEAT),GRAY,TRIM1#
main71074-2B681-04i198911-199208
W(LUXURY SEAT),DARK BLUE,TRIM8#
main71074-2B681-06i198911-199208
W(LUXURY SEAT),SABLE,TRIM4#
main71074-2B690-03i198712-198911
GRAY,TRIM1#; W(SPORT SEAT),GRAY,TRIM1#
main71074-2B691-03i198911-199208
GARY,TRIM1#; W(SPORT SEAT),GARY,TRIM1#
main71074-2B781-03i198911-199208
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71074-2B781-04i198911-199208
DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#
main71074-2B781-06i198911-199208
SABLE,TRIM4#; W(FABRIC SEAT),SABLE,TRIM4#
main71074-95506-03i198911-199211
GRAY,TRIM1#
main71074-95506-04i198911-199211
DARK BLUE,TRIM8#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-2D160-03i198712-198911
***,GRAY,TRIM1#; ***,W(FABRIC SEAT),GRAY,TRIM1#
main71410-2D160-04i198712-198911
***,BLUE,TRIM8#; ***,W(FABRIC SEAT),BLUE,TRIM8#
main71410-2D160-06i198712-198911
***,SABLE,TRIM4#
main71410-2D161-03i198911-199011
***,GARY,TRIM1#; ***,W(FABRIC SEAT),GARY,TRIM1#
main71410-2D161-04i198911-199011
***,DARK BLUE,TRIM8#; ***,W(FABRIC SEAT),DARK BLUE,TRIM8#
main71410-2D161-06i198911-199011
***,SABLE,TRIM4#
main71410-2D162-03i199011-199211
***,GRAY,TRIM1#; ***,W(FABRIC SEAT),GRAY,TRIM1#
main71410-2D162-04i199011-199211
***,DARK BLUE,TRIM8#; ***,W(FABRIC SEAT),DARK BLUE,TRIM8#
main71410-2D162-06i199011-199208
***,SABLE,TRIM4#
main71410-2D170-03i198712-198911
***,W(FABRIC SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#; ***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71410-2D170-04i198712-198911
***,W(FABRIC SEAT & VERTICAL ADJUSTER),BLUE,TRIM8#; ***,W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71410-2D170-06i198712-198911
***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71410-2D171-03i198911-199011
***,W(FABRIC SEAT & VERTICAL ADJUSTER),GARY,TRIM1#; ***,W(FABRIC SEAT),GARY,TRIM1#; ***,W(VERTICAL ADJUSTER),GARY,TRIM1#
main71410-2D171-04i198911-199011
***,W(FABRIC SEAT & VERTICAL ADJUSTER),DARK BLUE,TRIM8#; ***,W(FABRIC SEAT),DARK BLUE,TRIM8#; ***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71410-2D171-06i198911-199011
***,W(FABRIC SEAT),SABLE,TRIM4#
main71410-2D172-03i199011-199211
***,W(FABRIC SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#; ***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71410-2D172-04i199011-199211
***,W(FABRIC SEAT & VERTICAL ADJUSTER),DARK BLUE,TRIM8#; ***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71410-2D172-06i199011-199208
***,W(FABRIC SEAT),SABLE,TRIM4#
main71410-2D180-03i198712-198911
***,GRAY,TRIM1#; ***,W(FABRIC SEAT),GRAY,TRIM1#
main71410-2D180-04i198712-198911
***,BLUE,TRIM8#; ***,W(FABRIC SEAT),BLUE,TRIM8#
main71410-2D180-06i198712-198911
***,SABLE,TRIM4#; ***,W(FABRIC SEAT),SABLE,TRIM4#
main71410-2D181-03i198911-199208
***,GRAY,TRIM1#; ***,W(FABRIC SEAT),GRAY,TRIM1#
main71410-2D181-04i198911-199208
***,DARK BLUE,TRIM8#; ***,W(FABRIC SEAT),DARK BLUE,TRIM8#
main71410-2D181-06i198911-199208
***,SABLE,TRIM4#; ***,W(FABRIC SEAT),SABLE,TRIM4#
main71410-2D290-03i198712-198911
***,GRAY,TRIM1#; ***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71410-2D290-04i198712-198911
***,BLUE,TRIM8#; ***,W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71410-2D540-03i198712-198911
***,W(SPORT SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#; ***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71410-2D541-03i198911-199208
***,W(SPORT SEAT & VERTICAL ADJUSTER),GARY,TRIM1#; ***,W(VERTICAL ADJUSTER),GARY,TRIM1#
main71410-2D570-03i198712-198911
***,GRAY,TRIM1#
main71410-2D571-03i198911-199208
***,GARY,TRIM1#
main71410-2D590-03i198712-198911
***,W(FABRIC SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#; ***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71410-2D591-03i198911-199208
***,W(FABRIC SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#; ***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71410-2D591-04i198911-199208
***,W(FABRIC SEAT & VERTICAL ADJUSTER),DARK BLUE,TRIM8#; ***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71410-2D591-06i198911-199208
***,W(FABRIC SEAT & VERTICAL ADJUSTER),SABLE,TRIM4#; ***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71410-2D600-03i198712-198911
***,W(LUXURY SEAT),GRAY,TRIM1#
main71410-2D600-04i198712-198911
***,W(LUXURY SEAT & VERTICAL ADJUSTER),BLUE,TRIM8#
main71410-2D600-06i198712-198911
***,W(LUXURY SEAT & VERTICAL ADJUSTER),SABLE,TRIM4#
main71410-2D601-03i198911-199208
***,W(LUXURY SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71410-2D601-04i198911-199208
***,W(LUXURY SEAT & VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71410-2D601-06i198911-199208
***,W(LUXURY SEAT & VERTICAL ADJUSTER),SABLE,TRIM4#
main71410-95504-03i198712-198911
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71410-95504-04i198712-198911
***,W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71410-95507-03i198911-199211
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71410-95507-04i198911-199211
***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71410-95511-03i198911-199211
***,GRAY,TRIM1#
main71410-95511-04i198911-199211
***,DARK BLUE,TRIM8#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-2B490-03i198903-198911
***,XL PACKAGE,GRAY,TRIM1#
main71420-2B490-04i198712-198911
***,BLUE,TRIM8#; ***,W(FABRIC SEAT),BLUE,TRIM8#
main71420-2B490-06i198903-198911
***,XL PACKAGE,SABLE,TRIM4#
main71420-2B491-03i198911-199011
***,GARY,TRIM1#; ***,W(FABRIC SEAT),GARY,TRIM1#
main71420-2B491-04i198911-199011
***,DARK BLUE,TRIM8#; ***,W(FABRIC SEAT),DARK BLUE,TRIM8#
main71420-2B491-06i198911-199011
***,SABLE,TRIM4#
main71420-2B492-03i199011-199211
***,GRAY,TRIM1#; ***,W(FABRIC SEAT),GRAY,TRIM1#
main71420-2B492-04i199011-199211
***,DARK BLUE,TRIM8#; ***,W(FABRIC SEAT),DARK BLUE,TRIM8#
main71420-2B492-06i199011-199208
***,SABLE,TRIM4#
main71420-2B510-03i198712-198911
***,W(FABRIC SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#; ***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71420-2B510-04i198903-198911
***,XL PACKAGE & W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71420-2B510-06i198903-198911
***,XL PACKAGE & W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71420-2B511-03i198911-199011
***,W(FABRIC SEAT & VERTICAL ADJUSTER),GARY,TRIM1#; ***,W(VERTICAL ADJUSTER),GARY,TRIM1#
main71420-2B511-04i198911-199011
***,W(FABRIC SEAT & VERTICAL ADJUSTER),DARK BLUE,TRIM8#; ***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71420-2B511-06i198911-199011
***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71420-2B512-03i199011-199211
***,W(FABRIC SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71420-2B512-04i199011-199211
***,W(FABRIC SEAT & VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71420-2B512-06i199011-199203
***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71420-2B520-03i198712-198911
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71420-2B520-04i198712-198911
***,W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71420-2B520-06i198712-198911
***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71420-2B521-03i198911-199208
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71420-2B521-04i198911-199208
***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71420-2B521-06i198911-199208
***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71420-2B610-03i198712-198911
***,GRAY,TRIM1#; ***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71420-2B610-04i198712-198911
***,BLUE,TRIM8#; ***,W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71420-2D020-03i198712-198911
***,GRAY,TRIM1#; ***,W(FABRIC SEAT),GRAY,TRIM1#
main71420-2D020-04i198712-198911
***,BLUE,TRIM8#; ***,W(FABRIC SEAT),BLUE,TRIM8#
main71420-2D020-06i198712-198911
***,SABLE,TRIM4#; ***,W(FABRIC SEAT),SABLE,TRIM4#
main71420-2D030-03i198712-198911
***,W(LUXURY SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71420-2D030-04i198712-198911
***,W(LUXURY SEAT & VERTICAL ADJUSTER),BLUE,TRIM8#
main71420-2D030-06i198712-198911
***,W(LUXURY SEAT & VERTICAL ADJUSTER),SABLE,TRIM4#
main71420-2D031-03i198911-199208
***,W(LUXURY SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71420-2D031-04i198911-199208
***,W(LUXURY SEAT & VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71420-2D031-06i198911-199208
***,W(LUXURY SEAT & VERTICAL ADJUSTER),SABLE,TRIM4#
main71420-2D040-03i198712-198911
***,GRAY,TRIM1#; ***,W(SPORT SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71420-2D041-03i198911-199208
***,GARY,TRIM1#; ***,W(SPORT SEAT & VERTICAL ADJUSTER),GARY,TRIM1#
main71420-2D090-03i198712-198911
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71420-2G050-03i198911-199208
***,GRAY,TRIM1#; ***,W(FABRIC SEAT),GRAY,TRIM1#
main71420-2G050-04i198911-199208
***,DARK BLUE,TRIM8#; ***,W(FABRIC SEAT),DARK BLUE,TRIM8#
main71420-2G050-06i198911-199208
***,SABLE,TRIM4#; ***,W(FABRIC SEAT),SABLE,TRIM4#
main71420-2G100-03i198911-199203
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71420-95505-03i198712-198911
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71420-95505-04i198712-198911
***,W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71420-95506-03i198911-199211
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71420-95506-04i198911-199211
***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71420-95509-03i198911-199211
***,GRAY,TRIM1#
main71420-95509-04i198911-199211
***,DARK BLUE,TRIM8#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-2D170-03i198712-198911
***,GRAY,TRIM1#; ***,W(FABRIC SEAT),GRAY,TRIM1#
main71430-2D170-04i198712-198911
***,BLUE,TRIM8#; ***,W(FABRIC SEAT),BLUE,TRIM8#
main71430-2D170-06i198712-198911
***,SABLE,TRIM4#
main71430-2D171-03i198911-199011
***,GARY,TRIM1#; ***,W(FABRIC SEAT),GARY,TRIM1#
main71430-2D171-04i198911-199011
***,DARK BLUE,TRIM8#; ***,W(FABRIC SEAT),DARK BLUE,TRIM8#
main71430-2D171-06i198911-199011
***,SABLE,TRIM4#
main71430-2D172-03i199011-199211
***,GRAY,TRIM1#; ***,W(FABRIC SEAT),GRAY,TRIM1#
main71430-2D172-04i199011-199211
***,DARK BLUE,TRIM8#; ***,W(FABRIC SEAT),DARK BLUE,TRIM8#
main71430-2D172-06i199011-199208
***,SABLE,TRIM4#
main71430-2D180-03i198712-198911
***,W(FABRIC SEAT & LUMBAR SUPPORT & VERTICAL ADJUSTER),GRAY,TRIM1#; ***,W(FABRIC SEAT),GRAY,TRIM1#
main71430-2D180-04i198712-198911
***,W(FABRIC SEAT & LUMBAR SUPPORT & VERTICAL ADJUSTER),BLUE,TRIM8#; ***,W(FABRIC SEAT),BLUE,TRIM8#
main71430-2D180-06i198712-198911
***,W(FABRIC SEAT),SABLE,TRIM4#
main71430-2D210-03i198712-198911
***,GRAY,TRIM1#
main71430-2D211-03i198911-199208
***,GARY,TRIM1#
main71430-2D240-03i198712-198911
***,GRAY,TRIM1#; ***,W(LUMBAR SUPPORT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71430-2D240-04i198712-198911
***,BLUE,TRIM8#; ***,W(LUMBAR SUPPORT & VERTICAL ADJUSTER),BLUE,TRIM8#
main71430-2D271-03i198911-199208
***,GRAY,TRIM1#; ***,W(LOW BACK SEAT),GRAY,TRIM1#
main71430-2D271-04i198911-199208
***,DARK BLUE,TRIM8#; ***,W(LOW BACK SEAT),DARK BLUE,TRIM8#
main71430-2D271-06i198911-199208
***,SABLE,TRIM4#; ***,W(LOW BACK SEAT),SABLE,TRIM4#
main71430-2D280-03i198712-198911
***,W(LUXURY SEAT),GRAY,TRIM1#
main71430-2D280-04i198712-198911
***,W(LUXURY SEAT),BLUE,TRIM8#
main71430-2D280-06i198712-198911
***,W(LUXURY SEAT),SABLE,TRIM4#
main71430-2D281-03i198911-199208
***,W(LUXURY SEAT),GRAY,TRIM1#
main71430-2D281-04i198911-199208
***,W(LUXURY SEAT),DARK BLUE,TRIM8#
main71430-2D281-06i198911-199208
***,W(LUXURY SEAT),SABLE,TRIM4#
main71430-2D310-03i198712-198911
***,W(SPORT SEAT),GRAY,TRIM1#; ***,W(VERTICAL ADJUSTER),GRAY,GRAY,TRIM1#
main71430-2D311-03i198911-199208
***,W(LOW BACK SEAT & VERTICAL ADJUSTER),GARY,TRIM1#; ***,W(SPORT SEAT),GARY,TRIM1#
main71430-2D570-03i198712-198911
***,W(LOW BACK SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71430-2D570-04i198712-198911
***,W(LOW BACK SEAT & VERTICAL ADJUSTER),BLUE,TRIM8#
main71430-2D570-06i198712-198911
***,W(LOW BACK SEAT & VERTICAL ADJUSTER),SABLE,TRIM4#
main71430-2D571-03i198911-199208
***,W(LOW BACK SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#; ***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71430-2D571-04i198911-199208
***,W(LOW BACK SEAT & VERTICAL ADJUSTER),DARK BLUE,TRIM8#; ***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71430-2D571-06i198911-199208
***,W(LOW BACK SEAT & VERTICAL ADJUSTER),SABLE,TRIM4#; ***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71430-2D580-03i198712-198911
***,GRAY,TRIM1#; ***,W(LOW BACK SEAT),GRAY,TRIM1#
main71430-2D580-04i198712-198911
***,BLUE,TRIM8#; ***,W(LOW BACK SEAT),BLUE,TRIM8#
main71430-2D580-06i198712-198911
***,SABLE,TRIM4#; ***,W(LOW BACK SEAT),SABLE,TRIM4#
main71430-95508-03i198712-198911
***,W(LUMBAR SUPPORT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71430-95508-04i198712-198911
***,W(LUMBAR SUPPORT & VERTICAL ADJUSTER),BLUE,TRIM8#
main71430-95512-03i198911-199211
***,GRAY,TRIM1#
main71430-95512-04i198911-199211
***,DARK BLUE,TRIM8#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-2B790-03i198712-198911
***,GRAY,TRIM1#; ***,W(FABRIC SEAT),GRAY,TRIM1#
main71440-2B790-04i198712-198911
***,BLUE,TRIM8#; ***,W(FABRIC SEAT),BLUE,TRIM8#
main71440-2B790-06i198712-198911
***,SABLE,TRIM4#
main71440-2B791-03i198911-199011
***,GARY,TRIM1#; ***,W(FABRIC SEAT),GARY,TRIM1#
main71440-2B791-04i198911-199011
***,DARK BLUE,TRIM8#; ***,W(FABRIC SEAT),DARK BLUE,TRIM8#
main71440-2B791-06i198911-199011
***,SABLE,TRIM4#
main71440-2B792-03i199011-199211
***,GRAY,TRIM1#; ***,W(FABRIC SEAT),GRAY,TRIM1#
main71440-2B792-04i199011-199211
***,DARK BLUE,TRIM8#; ***,W(FABRIC SEAT),DARK BLUE,TRIM8#
main71440-2B792-06i199011-199208
***,SABLE,TRIM4#
main71440-2B810-03i198712-198911
***,W(FABRIC SEAT & LUMBAR SUPPORT & VERTICAL ADJUSTER),GRAY,TRIM1#; ***,W(FABRIC SEAT),GRAY,TRIM1#; ***,W(LUMBAR SUPPORT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71440-2B810-04i198712-198911
***,W(FABRIC SEAT & LUMBAR SUPPORT & VERTICAL ADJUSTER),BLUE,TRIM8#; ***,W(FABRIC SEAT),BLUE,TRIM8#; ***,W(LUMBAR SUPPORT & VERTICAL ADJUSTER),BLUE,TRIM8#
main71440-2B810-06i198712-198911
***,W(FABRIC SEAT),SABLE,TRIM4#; ***,W(LUMBAR SUPPORT & VERTICAL ADJUSTER),SABLE,TRIM4#
main71440-2B850-03i198712-198911
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71440-2B851-03i198911-199203
***,W(VERTICAL ADJUSTER),GARY,TRIM1#
main71440-2B890-03i198712-198911
***,GRAY,TRIM1#; ***,W(LUMBAR SUPPORT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71440-2B890-04i198712-198911
***,BLUE,TRIM8#; ***,W(LUMBAR SUPPORT & VERTICAL ADJUSTER),BLUE,TRIM8#
main71440-2D031-03i198911-199208
***,GRAY,TRIM1#; ***,W(FABRIC SEAT),GRAY,TRIM1#
main71440-2D031-04i198911-199208
***,DARK BLUE,TRIM8#; ***,W(FABRIC SEAT),DARK BLUE,TRIM8#
main71440-2D031-06i198911-199208
***,SABLE,TRIM4#; ***,W(FABRIC SEAT),SABLE,TRIM4#
main71440-2D040-03i198712-198911
***,W(LUXURY SEAT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71440-2D040-04i198712-198911
***,W(LUXURY SEAT & VERTICAL ADJUSTER),BLUE,TRIM8#
main71440-2D040-06i198712-198911
***,W(LUXURY SEAT & VERTICAL ADJUSTER),SABLE,TRIM4#
main71440-2D041-03i198911-199208
***,W(LUXURY SEAT),GRAY,TRIM1#
main71440-2D041-04i198911-199208
***,W(LUXURY SEAT),DARK BLUE,TRIM8#
main71440-2D041-06i198911-199208
***,W(LUXURY SEAT),SABLE,TRIM4#
main71440-2D050-03i198712-198911
***,GRAY,TRIM1#; ***,W(SPORT SEAT),GRAY,TRIM1#
main71440-2D051-03i198911-199208
***,GARY,TRIM1#; ***,W(SPORT SEAT),GARY,TRIM1#
main71440-2D290-03i198712-198911
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71440-2D290-04i198712-198911
***,W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71440-2D290-06i198712-198911
***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71440-2D291-03i198911-199208
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71440-2D291-04i198911-199208
***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71440-2D291-06i198911-199208
***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71440-2D300-03i198712-198911
***,GRAY,TRIM1#; ***,W(FABRIC SEAT),GRAY,TRIM1#
main71440-2D300-04i198712-198911
***,BLUE,TRIM8#; ***,W(FABRIC SEAT),BLUE,TRIM8#
main71440-2D300-06i198712-198911
***,SABLE,TRIM4#; ***,W(FABRIC SEAT),SABLE,TRIM4#
main71440-95506-03i198712-198911
***,W(LUMBAR SUPPORT & VERTICAL ADJUSTER),GRAY,TRIM1#
main71440-95506-04i198712-198911
***,W(LUMBAR SUPPORT & VERTICAL ADJUSTER),BLUE,TRIM8#
main71440-95512-03i198911-199211
***,GRAY,TRIM1#
main71440-95512-04i198911-199211
***,DARK BLUE,TRIM8#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-20060i198712-199208
W(FABRIC SEAT)
main71505-20070i198712-198911
W(LUMBER SUPPORT & VERTICAL ADJUSTER)
main71505-20080i198712-199208
W(LUXURY SEAT & VERTICAL ADJUSTER)
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71506-20040i198712-199211
main71506-20050i198712-198911
W(LUMBER SUPPORT & VERTICAL ADJUSTER)
main71506-20060i198712-199208
W(VERTICAL ADJUSTER)
main71506-20100i198712-198911
W(VERTICAL ADJUSTER)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-20490i198712-199211
main71511-20500i198712-199208
W(LUXURY SEAT & VERTICAL ADJUSTER)
main71511-20520i198712-198911
W(SPORT SEAT & VERTICAL ADJUSTER)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-20490i198712-199208
W(FABRIC SEAT)
main71511-20500i198712-199208
W(LUXURY SEAT & VERTICAL ADJUSTER)
main71511-20520i198712-199208
71553BPAD, FRONT SEATBACK, B
main71553-20150i198712-198911
71554PAD, FRONT SEATBACK, C
main71554-20130i198712-199211
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-20420i198712-198911
main71610-20430i198712-198911
W(VERTICAL ADJUSTER)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-20230×2i198712-198911
main71620-20260i198712-198911
W(VERTICAL ADJUSTER)
71831ACOVER, FRONT SEAT HINGE
main71831-10010i198712-198802
main71831-12010×2i198911-199011
71910AHEADREST ASSY, FRONT SEAT
main71910-2B040-03×2i198712-198911
W(LUXURY SEAT),GRAY,TRIM1#
main71910-2B040-04×2i198712-198911
W(LUXURY SEAT),BLUE,TRIM8#
main71910-2B040-06×2i198712-198911
W(LUXURY SEAT),SABLE,TRIM4#
main71910-2B041-03×2i198911-199208
W(LUXURY SEAT),GRAY,TRIM1#
main71910-2B041-04×2i198911-199208
W(LUXURY SEAT),DARK BLUE,TRIM8#
main71910-2B041-06×2i198911-199208
W(LUXURY SEAT),SABLE,TRIM4#
main71910-2B050-03×2i198712-198911
GRAY,TRIM1#; W(SPORT SEAT),GRAY,TRIM1#
main71910-2B051-03×2i198911-199208
GARY,TRIM1#; W(SPORT SEAT),GARY,TRIM1#
main71910-2B060-03×2i198712-198911
GRAY,TRIM1#
main71910-2B060-04×2i198712-198911
BLUE,TRIM8#
main71910-2B060-06×2i198712-198911
SABLE,TRIM4#
main71910-2B061-03×2i198911-199208
GRAY,TRIM1#
main71910-2B061-04×2i198911-199208
DARK BLUE,TRIM8#
main71910-2B061-06×2i198911-199208
SABLE,TRIM4#
main71910-2B070-03×2i198712-198911
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71910-2B070-04×2i198712-198911
BLUE,TRIM8#; W(FABRIC SEAT),BLUE,TRIM8#
main71910-2B070-06×2i198903-198911
XL PACKAGE,SABLE,TRIM4#
main71910-2B071-03×2i198911-199011
GRAY,TRIM1#; W(FABRIC SEAT),GRAY,TRIM1#
main71910-2B071-04×2i198911-199011
DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#
main71910-2B071-06×2i198911-199011
SABLE,TRIM4#
main71910-2B072-03×2i199011-199211
W(FABRIC SEAT),GRAY,TRIM1#
main71910-2B072-04×2i199011-199211
W(FABRIC SEAT),DARK BLUE,TRIM8#
main71910-2B072-06×2i199011-199208
SABLE,TRIM4#
main71910-2B080-03×2i198810-198911
GRAY,TRIM1#
main71910-2B080-04×2i198810-198911
BLUE,TRIM8#
main71910-2B081-03×2i198911-199011
GRAY,TRIM1#
main71910-2B081-04×2i198911-199011
DARK BLUE,TRIM8#
main71910-2B082-03×2i199011-199211
GRAY,TRIM1#
main71910-2B082-04×2i199011-199211
DARK BLUE,TRIM8#
main71910-2B100-03×2i198712-198911
W(FABRIC SEAT),GRAY,TRIM1#
main71910-2B100-04×2i198712-198911
W(FABRIC SEAT),BLUE,TRIM8#
main71910-2B100-06×2i198712-198911
W(FABRIC SEAT),SABLE,TRIM4#
main71910-2B101-03×2i198911-199208
W(FABRIC SEAT),GRAY,TRIM1#
main71910-2B101-04×2i198911-199208
W(FABRIC SEAT),DARK BLUE,TRIM8#
main71910-2B101-06×2i198911-199208
W(FABRIC SEAT),SABLE,TRIM4#
main71910-2B110-03×2i198911-199211
GRAY,TRIM1#
main71910-2B110-04i198712-198911
W(LUMBAR SUPPORT & VERTICAL ADJUSTER),BLUE,TRIM8#
main71910-2B110-14×2i198911-199211
DARK BLUE,TRIM8#
71931SUPPORT, FRONT SEAT HEADREST
main71930-12050-03×2i198712-198911
W(LOCK),SHADOW GRAY,TRIM1#
main71930-12050-04i198712-198911
W(LOCK),DARK BLUE,TRIM8#
main71930-12050-06×2i198712-199208
W(LOCK),SABLE,TRIM4#
main71930-12050-14×2i198911-199211
W(LOCK),DARK BLUE,TRIM8#
main71931-12010-03i198712-198911
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-12010-04×2i198712-198911
W/O(LOCK),DARK BLUE,TRIM8#
main71931-12010-06×2i198712-199208
W/O(LOCK),SABLE,TRIM4#
main71931-12010-14×2i198911-199211
W/O(LOCK),DARK BLUE,TRIM8#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-20030i198712-198802
main72750-20090i198712-198911
72760CADJUSTER ASSY, NO.3 SEAT RECLINING, LH
main72760-20070i198903-198911
72774PROTECTOR, LUMBAR SUPPORT SPRING
main72774-12020i198911-199208
main72774-20030i198712-198802
72791LEVER, LUMBAR SUPPORT
main72791-20030-03i198903-198911
SHADOW GRAY,TRIM1#
main72791-20030-14i198903-198911
DARK BLUE,TRIM8#
main72791-20030-16i198911-199208
SABLE,TRIM4#
main72791-20030-24i198911-199202
DARK BLUE,TRIM8#
main72791-20030-W3i199202-199208
DK.BLUE,TRIM8#
72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
main90520-01274i198903-198911
8513SEAT MOTOR & SEAT HEATER
→ Go to FIG 85-13
8515POWER STEERING MOTOR
→ Go to FIG 85-15
9038612016
main90386-12016
9046818071
main90468-18071
9052308001
main90523-08001
9165540620
main91655-40620
9166540620
main91665-40620

31 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
