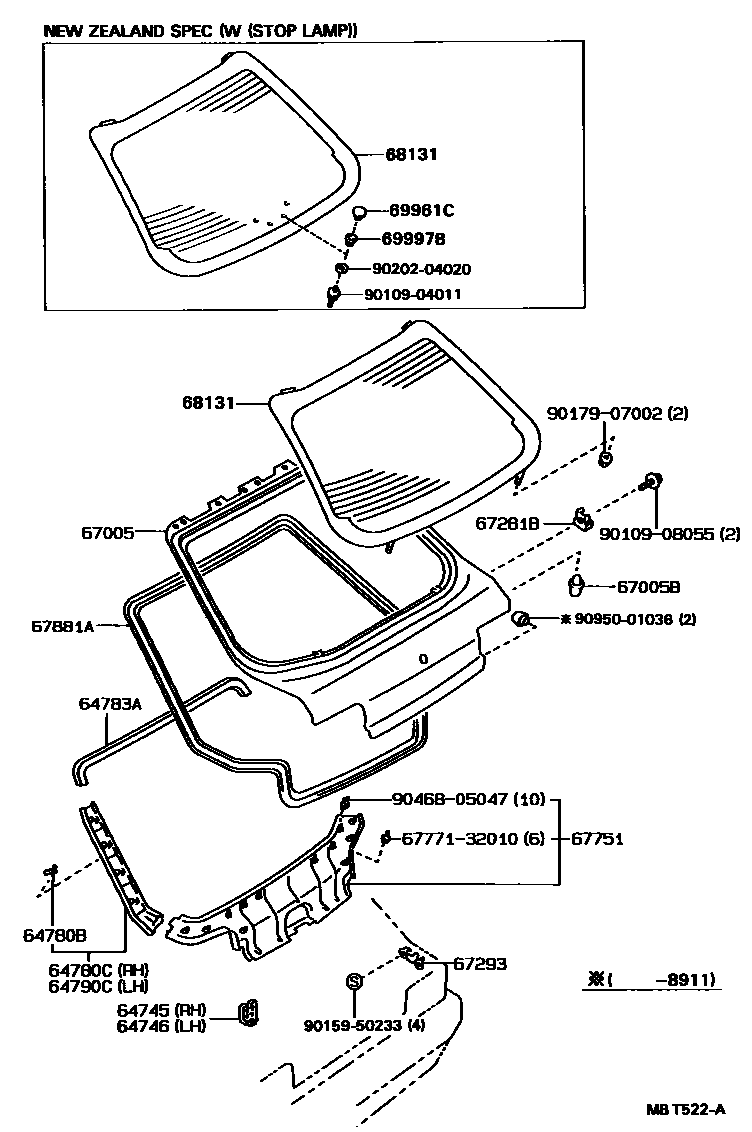

BACK DOOR PANEL & GLASS
64745COVER, REAR COMBINATION LAMP SERVICE, RH
64746COVER, REAR COMBINATION LAMP SERVICE, LH
64780BCLIP(FOR BACK DOOR TRIM PANEL)
64780CPANEL ASSY, BACK DOOR TRIM, RH
64783ATRIM, BACK WINDOW PANEL, UPPER
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
DARK BLUE,TRIM8#
64790CPANEL ASSY, BACK DOOR TRIM, LH
67005PANEL SUB-ASSY, BACK DOOR
W(REAR WIPER)
NEW ZEALAND SPEC
NEW ZEALAND SPEC & W(REAR WIPER)
W(REAR SPOILER)
W(REAR SPOILER)
NEW ZEALAND SPEC & W(REAR SPOILER) OR W(REAR SPOILER & LICENSE PLATE(520 X 120))
W(REAR SPOILER & LICENSE PLATE(520 X 120))
NEW ZEALAND SPEC OR W(LICENSE PLATE(520 X 120))
W(LICENSE PLATE (520 X 120))
EXTERIOR PACKAGE
W(REAR SPOILER)
EXTERIOR PACKAGE & W(REAR SPOILER)
sub67005-21400
NEW ZEALAND SPEC
W(REAR WIPER)
NEW ZEALAND SPEC & W(REAR WIPER)
67005BCUSHION(FOR BACK DOOR PANEL)
67281BSTOPPER, BACK DOOR, LOWER
67293CUSHION, BACK DOOR LOWER STOPPER
67751BOARD, BACK DOOR TRIM
GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*EHTT,T=3.5,W(WINDOW DEFOGGER)
*EHTT,T=4.0,W(WINDOW DEFOGGER)
*EHTT,T=4.0
*EHTT,T=4.0,NEW ZEALAND SPEC & W(WINDOW DEFOGGER)
*EHT,T=4.0,NEW ZEALAND SPEC & W(WINDOW DEFOGGER)
sub68131-20470
*TT,T=3.5
69961CRETAINER, FRONT DOOR GLASS
NEW ZEALAND SPEC & W(WINDOW DEFOGGER)
69997BSPACER, FRONT DOOR GLASS GUIDE
NEW ZEALAND SPEC & W(WINDOW DEFOGGER)
6777132010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32010
9010904011
main90109-04011
9010908055
main90109-08055
9015950233
main90159-50233
9017907002
main90179-07002
9020204020
main90202-04020
9046805047
main90468-05047
9095001036
main90950-01036
23 parts on this diagram · 2 diagrams in section
