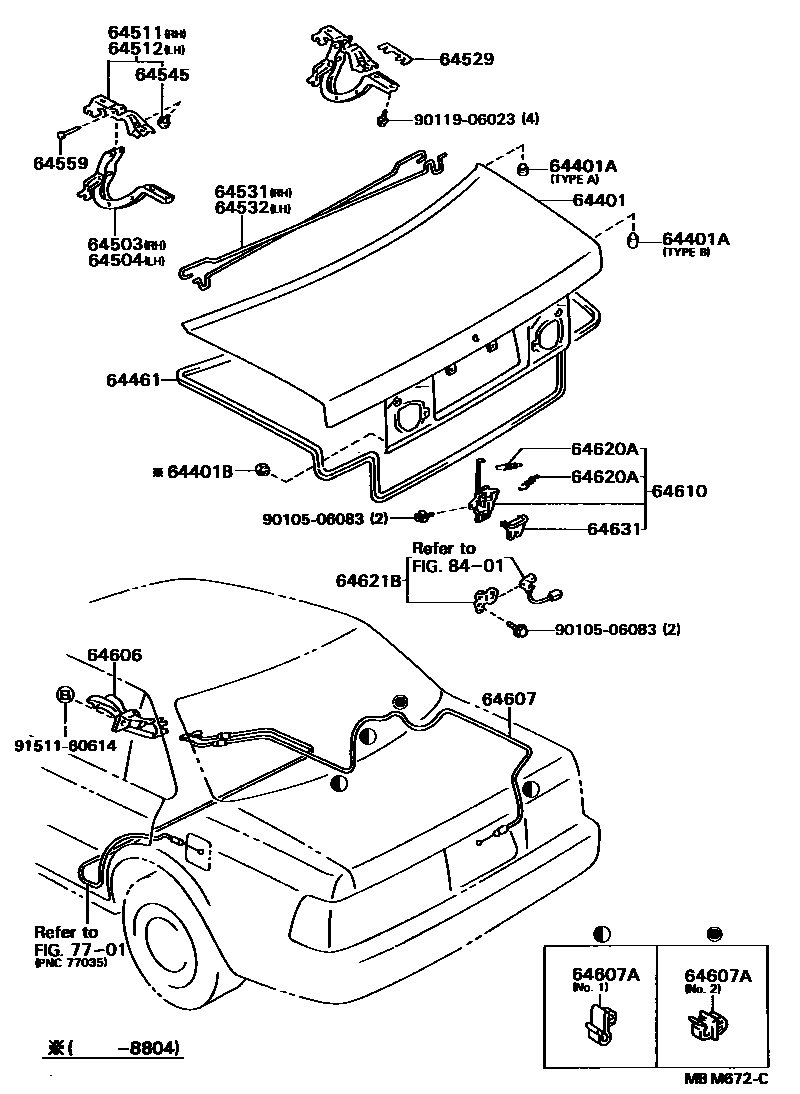

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-2B330iAT171,CT170,ST171..SED..GEN..(CBR,DSL)198911-199208

main64401-2B340iAT171,CT170,ST171..SED..GEN198712-198911

W(LICENSE PLATE(520 X 120))

main64401-2B450iAT171,CT170,ST171..SED..GEN..(CBR,DSL); ST171..SED..EFI;AT171,ST171..SED..GCC198911-199208

EXTERIOR PACKAGE

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076×2iAT171,CT170,ST171..SED198712-199208

TYPE A

main90541-09043×2iAT171,CT170,ST171..SED198712-199208

TYPE B

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90950-01036×2iAT171,CT170,ST171..SED198712-198804

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20290iAT171,CT170,ST171..SED198712-199208

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-20030iAT171,CT170,ST171..SED198712-199208

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-20030iAT171,CT170,ST171..SED198712-199208

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-20130iAT171,CT170,ST171..SED198712-199208

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-20130iAT171,CT170,ST171..SED198712-199208

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010iAT171,CT170,ST171..SED198712-199208

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-20210iAT171,CT170,ST171..SED198712-198911

main64531-20330iAT171,CT170,ST171..SED..GEN..(CBR,DSL); ST171..SED..EFI;AT171,ST171..SED..GCC198911-199208

EXTERIOR PACKAGE

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-20210iAT171,CT170,ST171..SED198712-198911

main64532-20330iAT171,CT170,ST171..SED..GEN..(CBR,DSL); ST171..SED..EFI;AT171,ST171..SED..GCC198911-199208

EXTERIOR PACKAGE

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007×2iAT171,CT170,ST171..SED198712-199208

64559PIN, LUGGAGE DOOR HINGE

main64559-20040×2iAT171,CT170,ST171..SED198712-199208

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20080iAT171,ST171..RHD..SED198712-199208

main64606-20090iAT171,CT170..LHD;ST171..LHD..SED..GL;ST171..LHD..(EXS,GT,GX,XL)198712-199208

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20390iAT171,CT170,ST171..SED198712-199208

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iAT171,CT170,ST171..SED198712-199208

NO.1

main90467-08043iAT171,CT170,ST171..SED198712-199208

NO.2

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20150iAT171,CT170,ST171..SED..(GX,XL)198712-199208

main64610-20160iAT171,CT170,ST171..SED..(GX,XL); AT171,ST171..SED..(EXS,GL)198712-199208

W(CANCEL)

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-05001iAT171,CT170,ST171..SED..(GX,XL); AT171,ST171..SED..(EXS,GL)198712-199208

W(CANCEL),YELLOW; YELLOW

main90506-05002iAT171,CT170,ST171..SED..(GX,XL); AT171,ST171..SED..(EXS,GL)198712-199208

W(CANCEL),WHITE; WHITE

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-20050iAT171,ST171..SED..GL198712-198911

main64621-12060iAT171,CT170,ST171..SED..XL198712-198911

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-20010iAT171,CT170,ST171..SED198712-199208

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506083

main90105-06083

9011906023

main90119-06023

9151160614

main91511-60614

25 parts on this diagram · 2 diagrams in section
