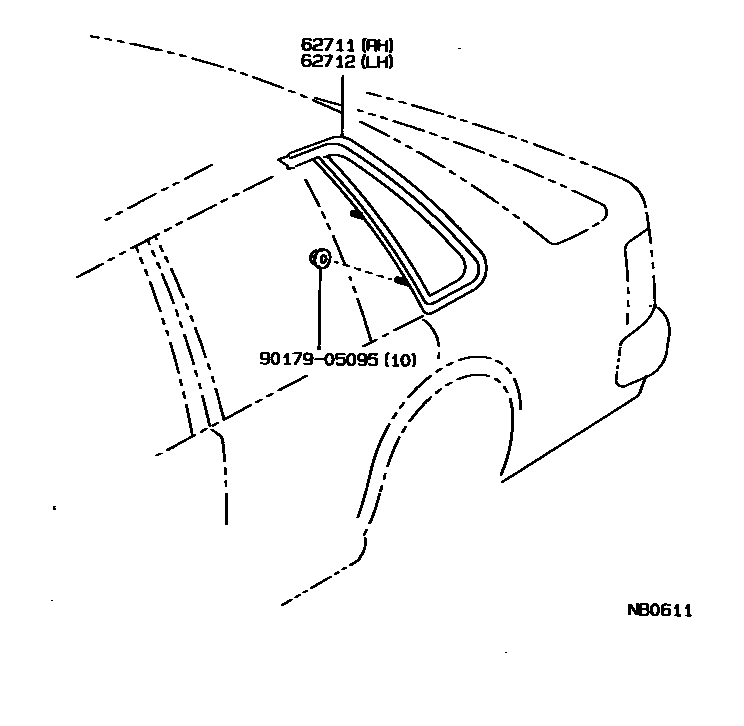

QUARTER WINDOW

0001 1 0002 1

62711GLASS, QUARTER WINDOW, RH

main62710-20110iST171..LB..CBR; ST171..LB..EFI198712-199001

*TT,T=3.1

main62710-20120iST171..LB..EFI; ST171..LB..GEN..CBR198712-199001

*TEM,T=3.1

main62711-95501iAT177..RHD..3FC198712-198911

*TEM,T=3.1

main62711-95502iAT177,CT177198712-199211

*TT,T=3.1

62712GLASS, QUARTER WINDOW, LH

main62712-95501iAT177..RHD..3FC198712-198911

*TEM,T=3.1

main62712-95502iAT177,CT177198712-199211

*TT,T=3.1

main62720-20110iST171..LB..CBR; ST171..LB..EFI198712-199001

*TT,T=3.1

main62720-20120iST171..LB..EFI; ST171..LB..GEN..CBR198712-199001

*TEM,T=3.1

9017905095

main90179-05095

3 parts on this diagram · 2 diagrams in section
