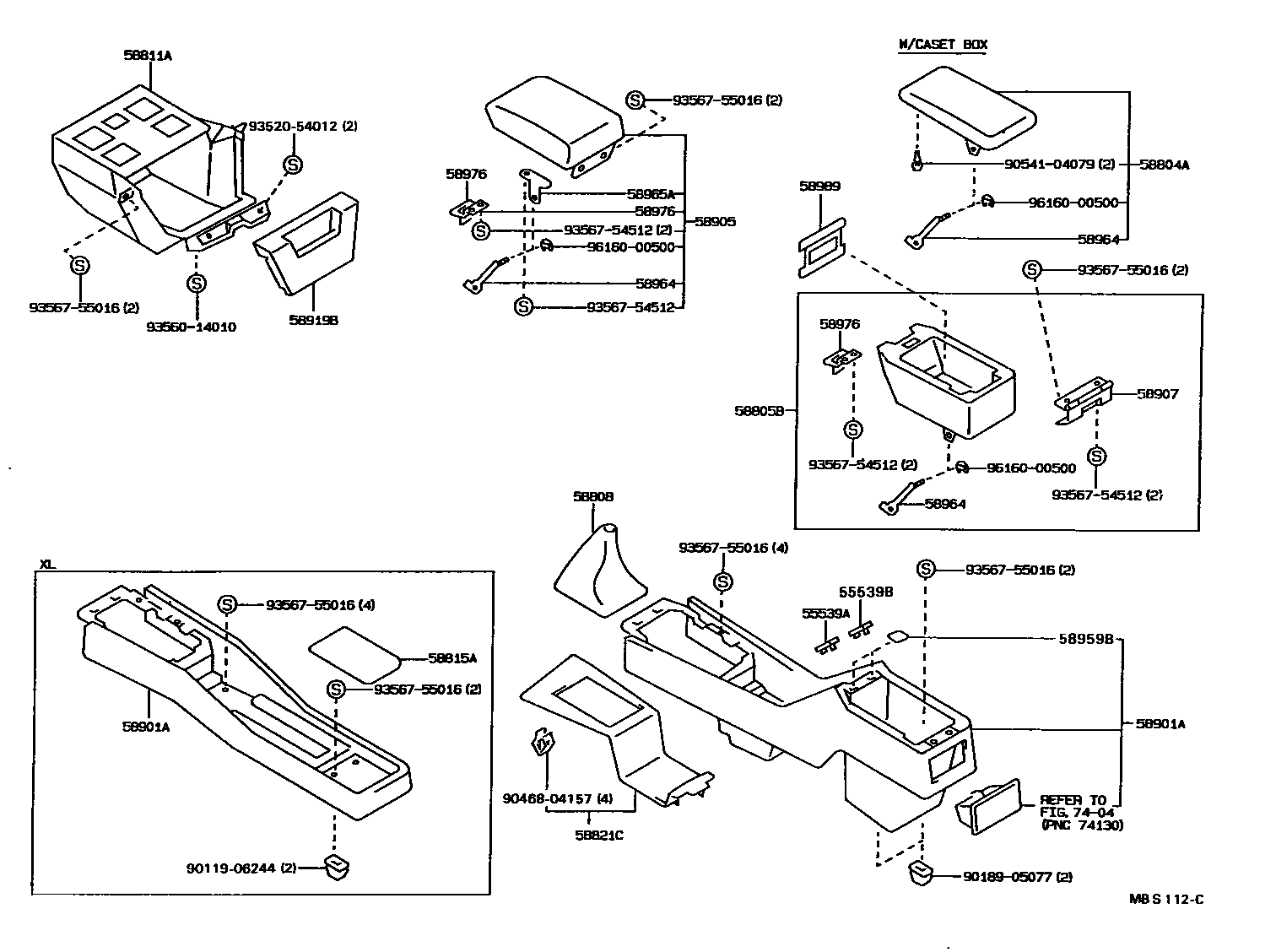

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-20050-03iST171..WG;AT171,ST171..EXS,GL,GT198712-199211

GRAY,TRIM1#

sub55539-20050

main55539-20050-04iST171..WG;ST171..SED..GCC;AT171,ST171..GL..GEN198712-198911

BLUE,TRIM8#

sub55539-20050

main55539-20050-06iAT171,ST171..GL..GEN;ST171..SED..(EXS,GL)..GCC198712-199208

SABLE,TRIM4#

sub55539-20050

main55539-20050-14iST171..WG;AT171,ST171..EXS,GL198911-199208

DARK BLUE,TRIM8#

sub55539-20050

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-20050-03iST171..WG;AT171,ST171..EXS,GL,GT198712-199211

GRAY,TRIM1#

sub55539-20050

main55539-20050-04iST171..WG;ST171..SED..GCC;AT171,ST171..GL..GEN198712-198911

BLUE,TRIM8#

sub55539-20050

main55539-20050-06iAT171,ST171..GL..GEN;ST171..SED..(EXS,GL)..GCC198712-199208

SABLE,TRIM4#

sub55539-20050

main55539-20050-14iST171..WG;AT171,ST171..EXS,GL198911-199208

DARK BLUE,TRIM8#

sub55539-20050

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-20020-03iAT171,ST171..EXS,GL,GT198712-199208

GRAY,TRIM1#

main58804-20020-04iST171..SED..GCC;AT171,ST171..GL..GEN198712-198911

BLUE,TRIM8#

main58804-20020-06iST171..SED..GCC;AT171,ST171..GL..GEN198712-199208

SABLE,TRIM4#

main58804-20020-14iAT171,ST171..SED..(EXS,GL)198911-199208

DARK BLUE,TRIM8#

58805BPANEL SUB-ASSY, CONSOLE, LOWER

main58805-20010-03iAT171,ST171..EXS,GL,GT198712-199208

GRAY,TRIM1#

main58805-20010-04iST171..SED..GCC;AT171,ST171..GL..GEN198712-198911

BLUE,TRIM8#

main58805-20010-06iAT171,ST171..EXS,GL198712-199208

SABLE,TRIM4#

main58805-20010-14iAT171..GL;ST171..ATM..(EXS,GL)198911-199208

DARK BLUE,TRIM8#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20060-03iAT17#,CT17#,ST171..MTM198712-199211

GRAY,TRIM1#

main58808-20060-04iST171..5F..GEN;AT17#,CT17#..MTM;ST171..SED..5F..GCC198712-198911

BLUE,TRIM8#

main58808-20060-06iAT171,CT170,ST171..(LB,SED)..MTM..(EXS,GL,GX,XL)198712-199208

SABLE,TRIM4#

main58808-20060-14iAT17#,CT17#,ST171..MTM..(EXS,GL,GX,XL)198911-199211

DARK BLUE,TRIM8#

58811ABOX, CONSOLE, FRONT

main58802-20010iAT17#,ST171..GEN198712-199211

W(COOL BOX)

main58811-20260iAT17#,CT17#,ST171198712-199211

58815ACARPET, CONSOLE BOX

main58815-20010iAT17#,CT17#,ST171..XL198712-198806

sub58815-20011

main58815-20011-03iAT17#,CT17#..XL;ST171..SED..(GX,XL)198806-199211

GRAY,TRIM1#

main58815-20011-03iST171..SED..GCC198903-198911

XL PACKAGE,GRAY,TRIM1#

main58815-20011-04iST171..SED..GCC198903-198911

XL PACKAGE,BLUE,TRIM8#

main58815-20011-04iST171..SED..XL;AT17#,CT17#..XL198806-198911

BLUE,TRIM8#

main58815-20011-06iST171..SED..GCC198903-198911

XL PACKAGE,SABLE,TRIM4#

main58815-20011-06iAT171,CT170,ST171..SED..(GX,XL)198806-199208

SABLE,TRIM4#

main58815-20011-14iAT17#,CT17#..XL;ST171..SED..(GX,XL)198911-199211

DARK BLUE,TRIM8#

58821CPANEL, CONSOLE, UPPER

main58821-20100-03iAT17#,ST171..RHD198712-199211

GRAY,TRIM1#

sub58821-20100

main58821-20100-04iAT17#,ST171..RHD198712-198911

BLUE,TRIM8#

sub58821-20100

main58821-20100-06iAT171,ST171..RHD..(LB,SED)198712-199208

SABLE,TRIM4#

sub58821-20100

main58821-20100-14iAT17#,ST171..RHD198911-199211

DARK BLUE,TRIM8#

sub58821-20100

main58821-20110-03iAT17#,CT17#,ST171..LHD198712-199211

GRAY,TRIM1#

sub58821-20110

main58821-20110-04iAT17#,CT17#,ST171..LHD..(SED,WG)198712-198911

BLUE,TRIM8#

sub58821-20110

main58821-20110-06iAT171,CT170,ST171..LHD..SED198712-199208

SABLE,TRIM4#

sub58821-20110

main58821-20110-14iAT17#,CT17#,ST171..LHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

sub58821-20110

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-20100-03iST171..WG;AT171,ST171..EXS,GL,GT198712-199211

GRAY,TRIM1#

main58901-20100-04iST171..WG;ST171..SED..GCC;AT171,ST171..GL..GEN198712-198911

BLUE,TRIM8#

main58901-20100-06iAT171,ST171..GL..GEN;ST171..SED..(EXS,GL)..GCC198712-199208

SABLE,TRIM4#

main58901-20100-14iST171..WG;AT171,ST171..EXS,GL198911-199211

DARK BLUE,TRIM8#

main58911-20090-03iST171..SED..GCC198903-198911

XL PACKAGE,GRAY,TRIM1#

sub58911-20090

main58911-20090-03iAT17#,CT17#..XL;ST171..SED..(GX,XL)198712-199211

GRAY,TRIM1#

sub58911-20090

main58911-20090-04iST171..SED..XL;AT17#,CT17#..XL198712-198911

BLUE,TRIM8#

sub58911-20090

main58911-20090-04iST171..SED..GCC198903-198911

XL PACKAGE,BLUE,TRIM8#

sub58911-20090

main58911-20090-06iAT171,CT170,ST171..SED..(GX,XL)198712-199208

SABLE,TRIM4#

sub58911-20090

main58911-20090-06iST171..SED..GCC198903-198911

XL PACKAGE,SABLE,TRIM4#

sub58911-20090

main58911-20090-14iAT17#,CT17#..XL;ST171..SED..(GX,XL)198911-199211

DARK BLUE,TRIM8#

sub58911-20090

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20080-03iST171..WG;AT171,ST171..EXS,GL,GT198712-199211

GRAY,TRIM1#

main58905-20080-04iST171..WG;ST171..SED..GCC;AT171,ST171..GL..GEN198712-198911

BLUE,TRIM8#

main58905-20080-06iST171..SED..GCC;AT171,ST171..GL..GEN198712-199208

SABLE,TRIM4#

main58905-20080-14iST171..WG;AT171,ST171..EXS,GL198911-199208

DARK BLUE,TRIM8#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-89101iAT171,ST171..EXS,GL,GT198712-199208

58919BPLATE, CONSOLE BOX

main58919-20020-03iAT17#,ST171..RHD198712-199211

GRAY,TRIM1#

sub58919-20020

main58919-20020-04iAT17#,ST171..RHD198712-198911

BLUE,TRIM8#

sub58919-20020

main58919-20020-06iAT171,ST171..RHD..(LB,SED)198712-199208

SABLE,TRIM4#

sub58919-20020

main58919-20020-14iAT17#,ST171..RHD198911-199211

DARK BLUE,TRIM8#

sub58919-20020

main58919-20030-03iAT17#,CT17#,ST171..LHD198712-199211

GRAY,TRIM1#

sub58919-20030

main58919-20030-04iAT17#,CT17#,ST171..LHD..(SED,WG)198712-198911

BLUE,TRIM8#

sub58919-20030

main58919-20030-06iAT171,CT170,ST171..LHD..SED198712-199208

SABLE,TRIM4#

sub58919-20030

main58919-20030-14iAT17#,CT17#,ST171..LHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

sub58919-20030

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010iST171..WG;AT171,ST171..EXS,GL,GT198712-199211

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20020iST171..WG;AT171,ST171..EXS,GL,GT198806-199211

main58964-20020iAT171,ST171..EXS,GL,GT198806-199208

W(CASSET BOX)

main58964-30060iAT171,ST171..GL198712-198806

W(CASSET BOX)

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iST171..WG;AT171,ST171..EXS,GL,GT198712-199211

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iST171..WG;AT171,ST171..EXS,GL,GT198712-199211

58989PANEL, CONSOLE COMPARTMENT DOOR

main58989-20030iAT171,ST171..EXS,GL,GT198712-199208

7404

9011906244

main90119-06244

9018905077

main90189-05077

9046804157

main90468-04157

9054104079

main90541-04079

9352054012

main93520-54012

9356014010

main93560-14010

9356754512

main93567-54512

9356755016

main93567-55016

9616000500

main96160-00500

27 parts on this diagram · 1 diagram in section
