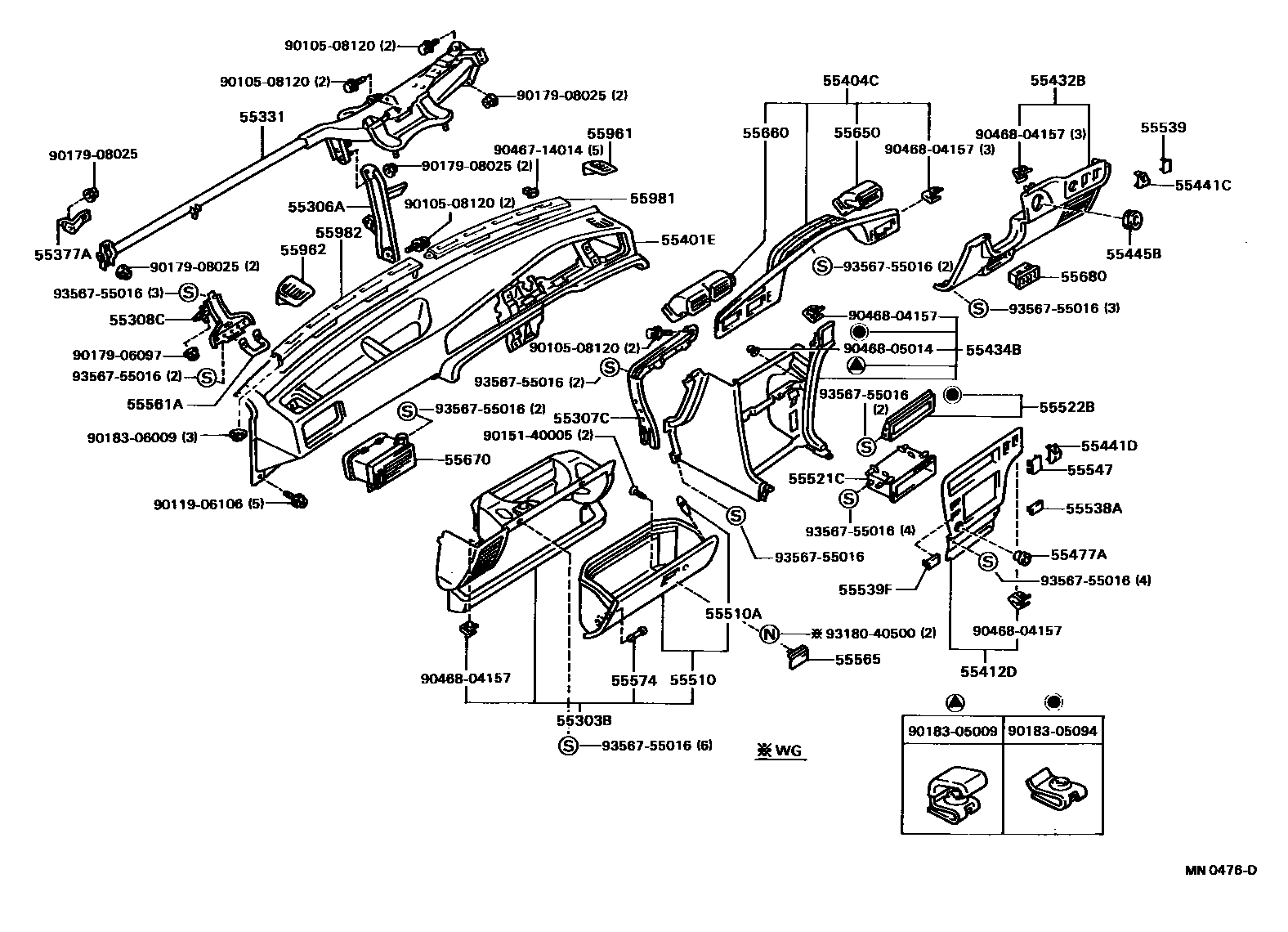

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-20070-03iAT17#,ST171..RHD198712-199211

GRAY,TRIM1#

sub55303-20070

main55303-20070-04iAT17#,ST171..RHD198712-198911

BLUE,TRIM8#

sub55303-20070

main55303-20070-06iAT171,ST171..RHD..SED198712-199208

SABLE,TRIM4#

sub55303-20070

main55303-20070-14iAT17#,ST171..RHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

sub55303-20070

main55303-20080-03iAT17#,CT17#,ST171..LHD198712-199211

GRAY,TRIM1#

main55303-20080-04iAT17#,CT17#,ST171..LHD..(SED,WG)198712-198911

BLUE,TRIM8#

main55303-20080-06iAT171,ST171..LHD..(EXS,GL)198712-199208

SABLE,TRIM4#

main55303-20080-14iAT17#,CT17#,ST171..LHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-20140iAT17#,ST171..RHD198712-199211

main55306-20150iAT17#,CT17#,ST171..LHD198712-199211

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-20120iAT17#,ST171..RHD198712-198809

sub55307-20121

sub55434-20111

main55307-20121iAT17#,ST171..RHD198809-199211

main55307-20130iAT17#,CT17#,ST171..LHD198712-199211

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-20130iAT17#,CT17#,ST171198712-199211

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20090iAT17#,ST171..RHD198712-199211

main55330-20100iAT17#,CT17#,ST171..LHD198712-199211

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-20010iAT17#,CT17#,ST171..LHD198712-199211

main55377-20030iAT17#,ST171..RHD198712-199211

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-20510-03iAT17#,ST171..RHD198712-199211

GRAY,TRIM1#

sub55401-20510

main55401-20510-04iAT17#,ST171..RHD198712-198911

BLUE,TRIM8#

sub55401-20510

main55401-20510-06iAT171,ST171..RHD..SED198712-199208

SABLE,TRIM4#

sub55401-20510

main55401-20510-14iAT17#,ST171..RHD198911-199211

DARK BLUE,TRIM8#

sub55401-20510

main55401-20530-03iAT17#,CT17#,ST171..LHD198712-198802

GRAY,TRIM1#

sub55401-20531

main55401-20530-04iAT17#,CT17#,ST171..LHD..(SED,WG)198712-198802

BLUE,TRIM8#

sub55401-20531

main55401-20530-06iAT171,CT170,ST171..LHD..SED198712-198802

SABLE,TRIM4#

sub55401-20531

main55401-20531-03iAT17#,CT17#,ST171..LHD198802-199211

GRAY,TRIM1#

sub55401-20531

main55401-20531-04iAT17#,CT17#,ST171..LHD..(SED,WG)198802-198911

BLUE,TRIM8#

sub55401-20531

main55401-20531-06iAT171,CT170,ST171..LHD..SED198802-199208

SABLE,TRIM4#

sub55401-20531

main55401-20531-14iAT17#,CT17#,ST171..LHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

sub55401-20531

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-20230iAT17#,ST171..RHD198712-199211

main55404-20240iAT17#,CT17#,ST171..LHD198712-199211

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-20320iAT17#,ST171..RHD198712-199211

main55412-20340iAT17#,CT17#,ST171..LHD198712-198911

main55412-20420iAT17#,CT17#,ST171..LHD198911-199211

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-20180-03iAT17#,ST171..RHD198712-198808

GRAY,TRIM1#

main55432-20180-04iAT17#,ST171..RHD198712-198808

BLUE,TRIM8#

main55432-20180-06iAT171,ST171..RHD198712-198808

SABLE,TRIM4#

main55432-20200-03iAT17#,CT17#,ST171..LHD198712-198911

GRAY,TRIM1#

main55432-20200-04iAT17#,CT17#,ST171..LHD..(SED,WG)198712-198911

BLUE,TRIM8#

main55432-20200-06iAT171,CT170,ST171..LHD..SED198712-198911

SABLE,TRIM4#

main55432-20240-03iAT17#,ST171..RHD198808-199211

GRAY,TRIM1#

sub55432-20240

main55432-20240-04iAT17#,ST171..RHD198808-198911

BLUE,TRIM8#

sub55432-20240

main55432-20240-06iAT171,ST171..RHD..(LB,SED)198808-199208

SABLE,TRIM4#

sub55432-20240

main55432-20240-14iAT17#,ST171..RHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

sub55432-20240

main55432-20250-03iAT17#,CT17#,ST171..LHD198911-199211

GRAY,TRIM1#

sub55432-20250

main55432-20250-04iAT17#,CT17#,ST171..LHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

sub55432-20250

main55432-20250-06iAT171,CT170,ST171..LHD..SED198911-199208

SABLE,TRIM4#

sub55432-20250

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-20110-03iAT17#,ST171..RHD198712-198809

GRAY,TRIM1#

sub55434-20111

sub55307-20121

main55434-20110-04iAT17#,ST171..RHD198712-198809

BLUE,TRIM8#

sub55434-20111

sub55307-20121

main55434-20110-06iAT171,ST171..RHD198712-198809

SABLE,TRIM4#

sub55434-20111

sub55307-20121

main55434-20111-03iAT17#..RHD;ST171..RHD..(LB,SED)198809-199211

GRAY,TRIM1#

sub55434-20111

main55434-20111-04iAT17#,ST171..RHD198809-198911

BLUE,TRIM8#

sub55434-20111

main55434-20111-06iAT171,ST171..RHD..SED198809-199208

SABLE,TRIM4#

sub55434-20111

main55434-20111-14iAT17#,ST171..RHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

sub55434-20111

main55434-20120-03iAT17#,CT17#,ST171..LHD198712-199211

GRAY,TRIM1#

sub55434-20120

main55434-20120-04iAT17#,CT17#,ST171..LHD..(SED,WG)198712-198911

BLUE,TRIM8#

sub55434-20120

main55434-20120-06iAT171,CT170,ST171..LHD..SED198712-199208

SABLE,TRIM4#

sub55434-20120

main55434-20120-14iAT17#,CT17#,ST171..LHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

sub55434-20120

55441CBOX, INSTRUMENT PANEL COIN

main55441-20140-11iAT177,ST171..RHD..WG198911-199211

BLACK,TRIM1#,4#,8#

sub55441-20140

main55441-20140-11iAT17#,CT17#,ST171198712-198911

BLACK,TRIM1#

sub55441-20140

main55441-20140-11iAT177,ST171..RHD..WG198911-199211

BLACK,TRIM1#,8#

sub55441-20140

main55441-20140-26iAT171,CT170;ST171..SED..GCC;ST171..(LB,SED)..GEN198712-198911

SABLE,TRIM4#

sub55441-20140

main55441-20140-34iST171..GEN;AT17#,CT17#;ST171..SED..GCC198712-198911

DARK BLUE,TRIM8#

sub55441-20140

55441DBOX, INSTRUMENT PANEL COIN

main55441-20140-11iST171..GT198911-199211

BLACK,TRIM1#,4#,8#

sub55441-20140

main55441-20140-11iAT17#,CT17#,ST171198712-199211

BLACK,TRIM1#

sub55441-20140

main55441-20140-11iAT171,CT170,ST171..(LB,SED)..(EXS,GL,GX,XL)198911-199211

BLACK,TRIM1#,8#

sub55441-20140

main55441-20140-26iAT171,CT170;ST171..SED..GCC;ST171..(LB,SED)..GEN198712-198911

SABLE,TRIM4#

sub55441-20140

main55441-20140-34iST171..GEN;AT17#,CT17#;ST171..SED..GCC198712-198911

DARK BLUE,TRIM8#

sub55441-20140

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-20150iAT17#,CT17#,ST171198712-199211

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-20070iAT17#,CT17#,ST171198712-199211

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-20120-03iAT177..RHD;AT171,ST171..RHD..GL198712-199211

GRAY,TRIM1#

sub55550-20120

main55550-20120-04iAT17#,ST171..RHD198712-198911

BLUE,TRIM8#

sub55550-20120

main55550-20120-06iAT171,ST171..RHD..(LB,SED)198712-199208

SABLE,TRIM4#

sub55550-20120

main55550-20120-14iAT17#,ST171..RHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

sub55550-20120

main55550-20130-03iAT17#,CT17#,ST171..LHD198712-199211

GRAY,TRIM1#

main55550-20130-04iAT17#,CT17#,ST171..LHD..(SED,WG)198712-198911

BLUE,TRIM8#

main55550-20130-06iAT171,CT170,ST171..LHD..SED198712-199208

SABLE,TRIM4#

main55550-20130-14iAT17#,CT17#,ST171..LHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iAT17#,CT17#,ST171198712-199211

55521CCOVER, STEREO OPENING

main55521-16030iAT17#,CT17#,ST171198712-199211

TYPE A

55522BCOVER, RADIO TUNER OPENING

main55522-32010iAT17#,CT17#,ST171198712-199211

sub55522-20070

55538ACOVER, COOLER SWITCH HOLE

main55538-16020iAT17#,CT17#;ST171..LB,SED198712-199211

55539COVER, SPARE SWITCH HOLE

main55539-24010-01iAT171,CT170,ST171..(LB,SED)..(EXS,GL,GX,XL)198911-199211

BLACK,TRIM1#,4#,8#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-01iST171..GT198911-199211

BLACK,TRIM1#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-01iAT171,CT170,ST171..(LB,SED)..(EXS,GL,GX,XL)198911-199211

BLACK,TRIM1#,8#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-13iAT17#,CT17#,ST171198712-198911

GRAY,TRIM1#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-44iST171..GEN;AT17#,CT17#;ST171..SED..GCC198712-198911

DARK BLUE,TRIM8#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-46iAT171,CT170;ST171..SED..GCC;ST171..(LB,SED)..GEN198712-198911

SABLE,TRIM4#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

55539FCOVER, SPARE SWITCH HOLE

main55539-24010-01iAT177,CT177,ST171..WG198911-199211

BLACK,TRIM1#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-01iAT177,CT177,ST171..WG198911-199211

BLACK,TRIM1#,4#,8#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-01iST171..GT198911-199211

BLACK,TRIM1#,8#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-20030-01iST171..LB..GCC198712-199211

BLACK,TRIM1#,8#

sub55547-20030

main55547-20030-01iAT177,CT177,ST171..WG198712-199211

BLACK,TRIM1#,4#,8#

sub55547-20030

main55547-20030-01iAT177,CT177,ST171..WG198712-199211

BLACK,TRIM1#

sub55547-20030

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-12040iAT17#,CT17#,ST171198712-199211

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-20060-03iAT17#,CT17#,ST171198712-199211

SHADOW GRAY,TRIM1#

sub55565-20040

sub55565-20060

main55565-20060-04iST171..GEN;AT17#,CT17#;ST171..SED..GCC198712-198911

DARK BLUE,TRIM8#

sub55565-20040

sub55565-20060

main55565-20060-06iAT171,CT170;ST171..SED..GCC;ST171..(LB,SED)..GEN198712-199208

SABLE,TRIM4#

sub55565-20040

sub55565-20060

main55565-20060-14iAT17#,CT17#,ST171..EXS,GL,GX,XL198911-199211

DARK BLUE,TRIM8#

sub55565-20040

sub55565-20060

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010iAT17#,CT17#,ST171198712-199211

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-20170iAT17#,ST171..RHD198712-199211

main55650-20180iAT17#,CT17#,ST171..LHD198712-199211

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20110iAT17#,ST171..RHD198712-199211

main55660-20120iAT17#,CT17#,ST171..LHD198712-199211

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-20100-03iAT17#,ST171..RHD198712-199211

GRAY,TRIM1#

sub55670-20100

main55670-20100-04iAT17#,ST171..RHD198712-198911

BLUE,TRIM8#

sub55670-20100

main55670-20100-06iAT171,ST171..RHD..(LB,SED)198712-199208

SABLE,TRIM4#

sub55670-20100

main55670-20100-14iAT17#,ST171..RHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

sub55670-20100

main55670-20110-03iAT17#,CT17#,ST171..LHD198712-199211

GRAY,TRIM1#

sub55670-20110

main55670-20110-04iAT17#,CT17#,ST171..LHD..(SED,WG)198712-198911

BLUE,TRIM8#

sub55670-20110

main55670-20110-06iAT171,CT170,ST171..LHD..SED198712-199208

SABLE,TRIM4#

sub55670-20110

main55670-20110-14iAT17#,CT17#,ST171..LHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

sub55670-20110

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-13iAT17#,CT17#,ST171198712-199211

SHADOW GRAY,TRIM1#

sub55680-14030

main55680-14030-14iST171..GEN;AT17#,CT17#;ST171..SED..GCC198712-198807

DARK BLUE,TRIM8#

sub55680-14030

main55680-14030-16iAT171,CT170,ST171..SED198712-199208

SABLE,TRIM4#

sub55680-14030

main55680-14030-24iAT17#,CT17#,ST171..SED,WG198911-199211

DARK BLUE,TRIM8#

sub55680-14030

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-20110-03iAT17#,ST171..RHD198712-199211

GRAY,TRIM1#

sub55961-20110

main55961-20110-04iAT17#,ST171..RHD198712-198911

BLUE,TRIM8#

sub55961-20110

main55961-20110-06iAT171,ST171..RHD..SED198712-199208

SABLE,TRIM4#

sub55961-20110

main55961-20110-14iAT17#,ST171..RHD198911-199211

DARK BLUE,TRIM8#

sub55961-20110

main55961-20140-03iAT17#,CT17#,ST171..LHD198712-199211

GRAY,TRIM1#

sub55961-20140

main55961-20140-04iAT17#,CT17#,ST171..LHD..(SED,WG)198712-198911

BLUE,TRIM8#

sub55961-20140

main55961-20140-06iAT171,CT170,ST171..LHD..SED198712-199208

SABLE,TRIM4#

sub55961-20140

main55961-20140-14iAT17#,CT17#,ST171..LHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

sub55961-20140

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-20130-03iAT17#,ST171..RHD198712-199211

GRAY,TRIM1#

sub55962-20130

main55962-20130-04iAT17#,ST171..RHD198712-198911

BLUE,TRIM8#

sub55962-20130

main55962-20130-06iAT171,ST171..RHD..(LB,SED)198712-199208

SABLE,TRIM4#

sub55962-20130

main55962-20130-14iAT17#,ST171..RHD198911-199211

DARK BLUE,TRIM8#

sub55962-20130

main55962-20140-03iAT17#,CT17#,ST171..LHD198712-199211

GRAY,TRIM1#

sub55962-20140

main55962-20140-04iAT17#,CT17#,ST171..LHD..(SED,WG)198712-198911

BLUE,TRIM8#

sub55962-20140

main55962-20140-06iAT171,CT170,ST171..LHD..SED198712-199208

SABLE,TRIM4#

sub55962-20140

main55962-20140-14iAT17#,CT17#,ST171..LHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

sub55962-20140

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-20060-E0iAT171,ST171..RHD..(LB,SED)198712-199208

SABLE,TRIM4#

main55981-20060-P0iAT17#,ST171..RHD198712-199211

GRAY,TRIM1#

main55981-20060-R8iAT17#,ST171..RHD198712-198911

BLUE,TRIM8#

main55981-20060-W3iAT17#,ST171..RHD198911-199211

DARK BLUE,TRIM8#

main55981-20070-E0iAT171,CT170,ST171..LHD..SED198712-198802

SABLE,TRIM4#

sub55981-20071

main55981-20070-P0iAT17#,CT17#,ST171..LHD198712-198802

GRAY,TRIM1#

sub55981-20071

main55981-20070-R8iAT17#,CT17#,ST171..LHD..(SED,WG)198712-198802

BLUE,TRIM8#

sub55981-20071

main55981-20071-E0iAT171,CT170,ST171..LHD..SED198802-199208

SABLE,TRIM4#

main55981-20071-P0iAT17#,CT17#,ST171..LHD198802-199211

GRAY,TRIM1#

main55981-20071-R8iAT17#,CT17#,ST171..LHD..(SED,WG)198802-198911

BLUE,TRIM8#

main55981-20071-W3iAT17#,CT17#,ST171..LHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-20060-E0iAT171,ST171..RHD..GL198712-199208

SABLE,TRIM4#

main55982-20060-P0iAT17#,ST171..RHD198712-199211

GRAY,TRIM1#

main55982-20060-R8iAT17#,ST171..RHD198712-198911

BLUE,TRIM8#

main55982-20060-W3iAT17#,ST171..RHD198911-199211

DARK BLUE,TRIM8#

main55982-20070-E0iAT171,CT170,ST171..LHD..SED198712-198802

SABLE,TRIM4#

sub55982-20071

main55982-20070-P0iAT17#,CT17#,ST171..LHD198712-198802

GRAY,TRIM1#

sub55982-20071

main55982-20070-R8iAT17#,CT17#,ST171..LHD..(SED,WG)198712-198802

BLUE,TRIM8#

sub55982-20071

main55982-20071-E0iAT171,CT170,ST171..LHD..SED198802-199208

SABLE,TRIM4#

main55982-20071-P0iAT17#,CT17#,ST171..LHD198802-199211

GRAY,TRIM1#

main55982-20071-R8iAT17#,CT17#,ST171..LHD..(SED,WG)198802-198911

BLUE,TRIM8#

main55982-20071-W3iAT17#,CT17#,ST171..LHD..(SED,WG)198911-199211

DARK BLUE,TRIM8#

9010508120

main90105-08120

9011906106

main90119-06106

9015140005

main90151-40005

9017906097

main90179-06097

9017908025

main90179-08025

9018305009

main90183-05009

9018305094

main90183-05094

9018306009

main90183-06009

9046714014

main90467-14014

9046804157

main90468-04157

9046805014

main90468-05014

9318040500

main93180-40500

9356755016

main93567-55016

47 parts on this diagram · 2 diagrams in section
