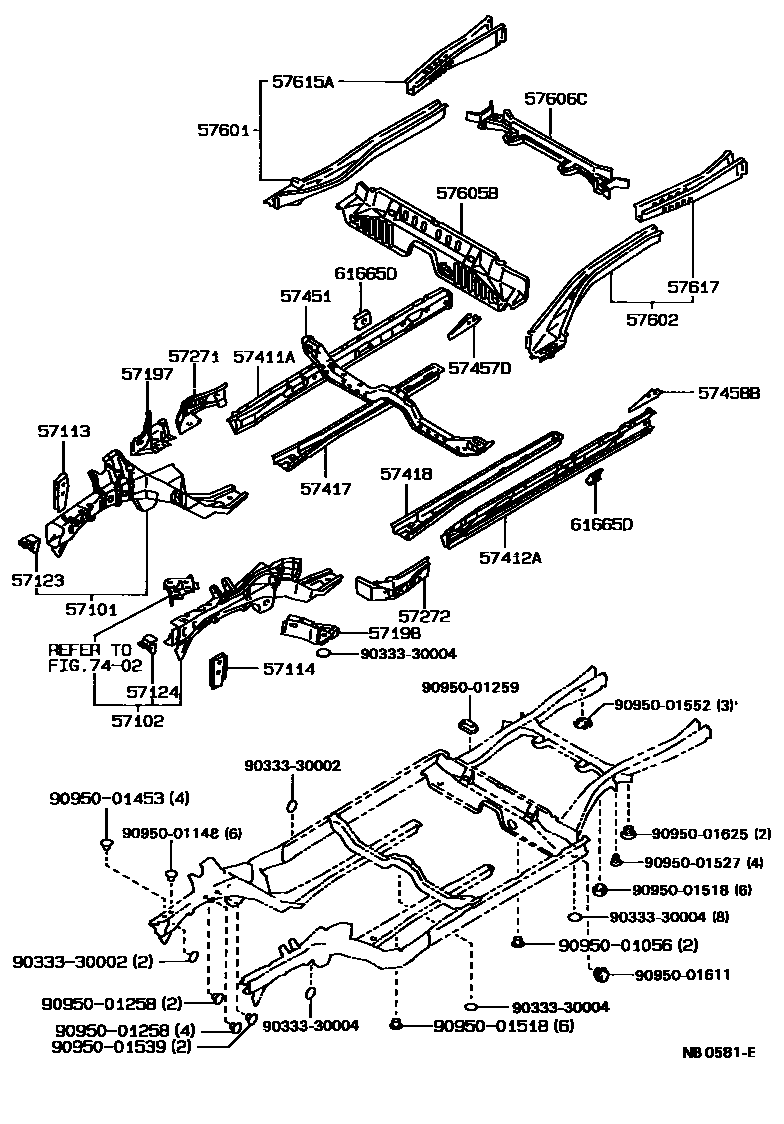

FLOOR SIDE MEMBER

0001 1 0002 1

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20600iAT17#198712-198801

main57101-20610iST171198712-198801

main57101-20620iCT17#198712-198801

main57101-20905iAT17#198801-199211

main57101-20906×2iST171198911-199211

main57101-20907iCT17#199202-199211

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20570iAT17#198712-198801

main57102-20580iST171198712-198801

main57102-20590iCT17#198712-198801

main57102-20902iAT17#198801-199211

main57102-20903iST171198801-199211

main57102-20904iCT17#198801-199008

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-20110iAT17#,CT17#,ST171198712-199211

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-20090iAT17#,CT17#,ST171198712-199211

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-20030iAT17#,CT17#,ST171198712-199008

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-20030iAT17#,CT17#,ST171198712-199008

57197BOX, TORQUE, FRONT RH

main57197-20030iAT17#,CT17#,ST171198712-199008

57198BOX, TORQUE, FRONT LH

main57198-20030iAT17#,CT17#,ST171198712-199008

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-20020iAT17#,CT17#,ST171198712-199008

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-20020iAT17#,CT17#,ST171198712-199008

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-20070iAT17#,CT17#,ST171198712-199211

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-20170iAT17#,CT17#,ST171198712-199211

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20050iAT17#,CT17#,ST171198712-199211

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20050iAT171,CT170,ST171198712-199211

main57418-95500iAT177,CT177198712-199211

57451MEMBER, FRONT FLOOR CROSS

main57408-20010iAT17#,CT17#,ST171198712-199211

57457DPATCH, FLOOR SIDE MEMBER, REAR RH

main57457-20040iAT17#,CT17#,ST171198712-199211

57458BPATCH, FLOOR SIDE MEMBER, REAR LH

main57458-20030iAT17#,CT17#,ST171198712-199211

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20220iAT171,CT170,ST171..LB,SED198712-199203

main57601-95502iAT177,CT177198712-198905

main57601-95503iST171..WG198810-199211

main57601-95504iAT177,CT177198905-199211

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20220iAT171,CT170,ST171..LB,SED198712-199203

main57602-95502iAT177,CT177198712-198905

main57602-95503iST171..WG198810-199211

main57602-95504iAT177,CT177198905-199211

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-20070iAT171,CT170,ST171198712-199211

main57605-95501iAT177,CT177198712-199211

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-95500iST171..SED..GCC;AT171,CT170,ST171..XL198809-198911

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-20905iAT171,CT170,ST171..LB,SED198712-199208

main57615-95900iST171..WG198810-199211

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-20905iAT171,CT170,ST171..LB,SED198712-199208

main57616-95900iST171..WG198810-199211

61665DPLATE, SAFETY BELT ANCHORAGE

main61665-22010×2iAT17#,CT17#,ST171198712-199211

7402BATTERY CARRIER

→ Go to FIG 74-02

9033330002

main90333-30002

9033330004

main90333-30004

9095001056

main90950-01056

9095001148

main90950-01148

9095001258

main90950-01258

9095001259

main90950-01259

9095001453

main90950-01453

9095001518

main90950-01518

9095001527

main90950-01527

9095001539

main90950-01539

9095001552

main90950-01552

9095001611

main90950-01611

9095001625

main90950-01625

38 parts on this diagram · 2 diagrams in section
