REAR SPRING & SHOCK ABSORBER

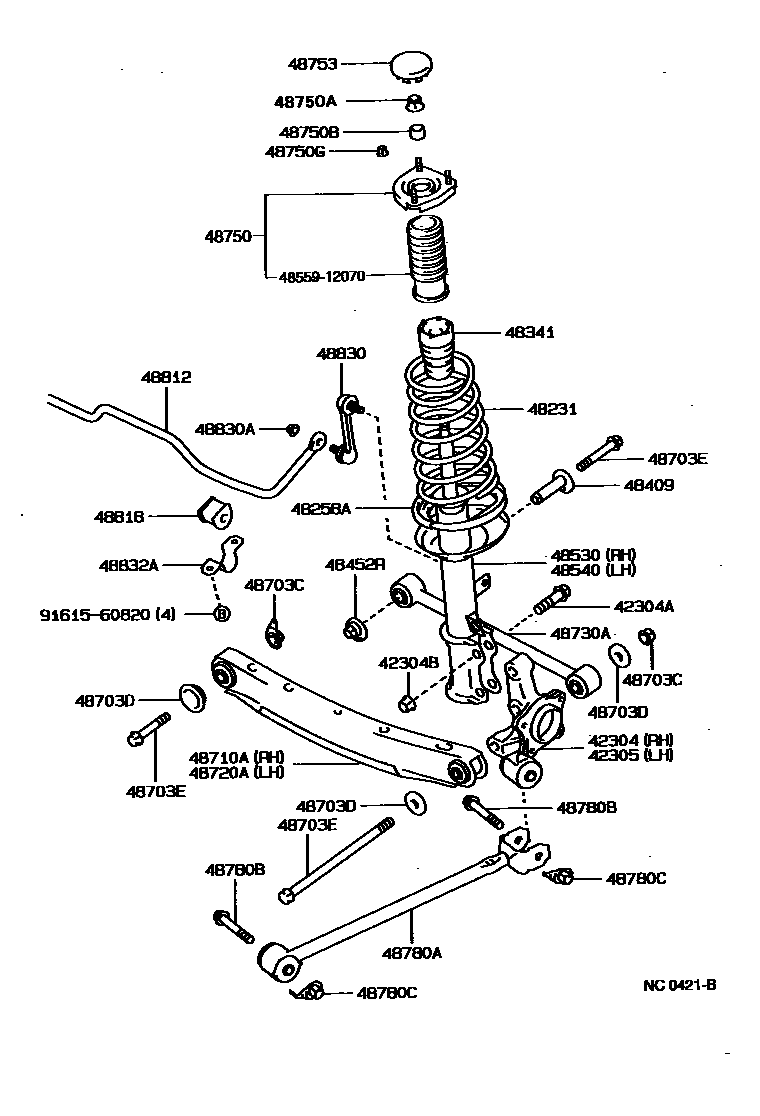

Parts diagram
42304CARRIER SUB-ASSY, REAR AXLE, RH
main42304-32020i198712-199211
main42304-32020i199006-199208
W(13INCHES DISC WHEEL)
main42304-32020i198905-198911
NEW ZEALAND SPEC & W(STABILIZER BAR)
main42304-32030i199006-199208
main42304-32030i198712-199006
W(14INCHES DISC WHEEL)
main42304-32030i198911-199006
THAILAND SPEC OR W(14INCHES DISC WHEEL)
42304ABOLT (FOR REAR AXLE CARRIER)
main90105-15001i198712-199211
42304BNUT (FOR REAR AXLE CARRIER)
main90179-15001i198712-199211
42305CARRIER SUB-ASSY, REAR AXLE, LH
main42305-32020i198712-199211
main42305-32020i199006-199208
W(13INCHES DISC WHEEL)
main42305-32020i198905-198911
NEW ZEALAND SPEC & W(STABILIZER BAR)
main42305-32030i198712-199006
W(14INCHES DISC WHEEL)
main42305-32030i198911-199006
THAILAND SPEC OR W(14INCHES DISC WHEEL)
main42305-32030i199006-199208
48231SPRING, COIL, REAR
main48231-20440i198805-198911
THAILAND SPEC & W(14INCHES DISC WHEEL & STABILIZER BAR)
sub48231-2B201
main48231-20440i198807-198911
THILAND SPEC & W(14INCHES DISC WHEEL)
sub48231-2B201
main48231-20440i198911-199208
THAILAND SPEC
sub48231-2B201
main48231-20440i198712-198804
NEW ZEALAND SPEC & W(STABILIZER BAR)
sub48231-2B201
main48231-20860i198712-198804
NEW ZEALAND SPEC & W(STABILIZER BAR)
sub48231-2D890
main48231-20890i198712-198804
HARSH ROAD PACKAGE
main48231-20890i198712-198804
HARSH ROAD PACKAGE;HARSH ROAD PACKAGE & W(STABILIZER BAR)
main48231-20890i198804-199208
main48231-20890i198911-199001
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main48231-20890i198805-198911
THAILAND SPEC & W(STABILIZER BAR)
main48231-20890i198804-198808
NEW ZEALAND SPEC & W(STABILIZER BAR)
main48231-2B070i198810-198911
main48231-2B090i198712-198804
NEW ZEALAND SPEC & W(STABILIZER BAR)
main48231-2B090i198712-198911
HARSH ROAD PACKAGE;HARSH ROAD PACKAGE & W(STABILIZER BAR)
main48231-2B090i198712-199208
HARSH ROAD PACKAGE
main48231-2B090i198911
HARSH ROAD PACKAGE OR SINGAPORE SPEC
main48231-2B110i198911-199208
NEW ZEALAND SPEC
main48231-2B110i198808-198911
NEW ZEALAND SPEC & W(STABILIZER BAR)
main48231-2B140i198712-198911
HARSH ROAD PACKAGE;HARSH ROAD PACKAGE & W(STABILIZER BAR)
main48231-2B140i198712-199208
HARSH ROAD PACKAGE
main48231-2B140i198804-198911
NEW ZEALAND SPEC & W(STABILIZER BAR)
main48231-2B140i198911-199006
HARSH ROAD PACKAGE;HARSH ROAD PACKAGE & THAILAND SPEC
main48231-2B140i198911-199208
main48231-2B230i198804-198808
NEW ZEALAND SPEC & W(STABILIZER BAR)
sub48231-2B830
main48231-2B260i198804-198911
HARSH ROAD PACKAGE;HARSH ROAD PACKAGE & W(STABILIZER BAR)
main48231-2B260i198804-199208
HARSH ROAD PACKAGE
main48231-2B610i198911-199211
sub48231-2D350
48258AINSULATOR, REAR COIL SPRING, LOWER
main48258-32010i198712-199211
48341BUMPER, REAR SPRING
main48341-20090i198712-199211
main48341-20120i198712-199208
main48341-21010i198712-199211
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
main48409-32020i198712-199211
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
main48452-32020i198712-199211
48530ABSORBER ASSY, SHOCK, REAR RH
main48530-20240i198911-199208
MARK 48540-20240,THAILAND SPEC OR W(STABILIZER BAR)
sub48530-20260
main48530-20240i198911-199006
MARK 48540-20240,NEW ZEALAND SPEC OR W(STABILIZER BAR)
sub48530-20260
main48530-20240i198712-199208
MARK 48540-20240,W(STABILIZER BAR)
sub48530-20260
main48530-20240i199006-199208
MARK 48540-20240,NEW ZEALAND SPEC OR THAILAND SPEC OR W(STABILIZER BAR)
sub48530-20260
main48530-20260i198911-199006
MARK 48530-20260,HARSH ROAD PACKAGE;HARSH ROAD PACKAGE & THAILAND SPEC & W(STABILIZER BAR);HARSH ROAD PACKAGE & W(STABILIZER BAR);HARSH ROAD PACKAGE & THAILAND SPEC
main48530-20260i198712-199208
MARK 48530-20260,HARSH ROAD PACKAGE;HARSH ROAD PACKAGE & W(STABILIZER BAR)
main48530-20260i198712-199208
MARK 48530-20260,HARSH ROAD PACKAGE
main48530-20260i198712-198911
MARK 48530-20260,HARSH ROAD PACKAGE & W(STABILIZER BAR);HARSH ROAD PACKAGE OR W(STABILIZER BAR)
main48530-20300i198908-198911
MARK 48530-20300,NEW ZEALAND SPEC & W(STABILIZER BAR);NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
sub48530-20340
main48530-20300i198712-199208
MARK 48530-20300
sub48530-20340
main48530-20300i198808-198911
MARK 48530-20300,NEW ZEALAND SPEC & W(STABILIZER BAR)
sub48530-20340
main48530-20300i198911-199208
MARK 48530-20300,NEW ZEALAND SPEC
sub48530-20340
main48530-20320i198712-199208
MARK 48530-20320
sub48530-20340
main48530-20320i198911-199208
MARK 48530-20320,THAILAND SPEC & W(14INCHES DISC WHEEL & STABILIZER BAR);THAILANDSPEC
sub48530-20340
main48530-20320i198712-198808
MARK 48530-20320,NEW ZEALAND SPEC & W(STABILIZER BAR)
sub48530-20340
main48530-20320i198805-198911
MARK 48530-20320,THAILAND SPEC & W(14INCHES DISC WHEEL & STABILIZER BAR)
sub48530-20340
main48530-20320i198807-198911
MARK 48530-20320,THAILAND SPEC & W(14INCHES DISC WHEEL)
sub48530-20340
main48530-20320i198911-199001
MARK 48530-20320,NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
sub48530-20340
main48530-20340i198712-199208
MARK 48530-20340,HARSH ROAD PACKAGE
main48530-20340i198911-199006
MARK 48530-20340,HARSH ROAD PACKAGE;HARSH ROAD PACKAGE & THAILAND SPEC
main48530-20340i198712-198911
MARK 48530-20340,HARSH ROAD PACKAGE;HARSH ROAD PACKAGE & W(STABILIZER BAR)
main48530-20370i198810-199211
MARK 48530-20370
main48530-20430i198712-199208
MARK 48530-20430
main48531-80214i198712-199211
MARK 48531-80214
main48531-80216i198712-199211
MARK 48531-80216,HARSH ROAD PACKAGE
sub48531-80214
48540ABSORBER ASSY, SHOCK, REAR LH
main48531-80200i198712-199211
sub48531-80214
main48531-80205i198712-199211
HARSH ROAD PACKAGE
sub48531-80216
main48540-20240i198911-199208
MARK 48540-20240,THAILAND SPEC OR W(STABILIZER BAR)
sub48540-20260
main48540-20240i198911-199006
MARK 48540-20240,NEW ZEALAND SPEC OR W(STABILIZER BAR)
sub48540-20260
main48540-20240i198712-199208
MARK 48540-20240,W(STABILIZER BAR)
sub48540-20260
main48540-20240i199006-199208
MARK 48540-20240,NEW ZEALAND SPEC OR THAILAND SPEC OR W(STA BILIZER BAR)
sub48540-20260
main48540-20260i198712-199208
MARK 48540-20260,HARSH ROAD PACKAGE
main48540-20260i198712-198911
MARK 48540-20260,HARSH ROAD PACKAGE;HARSH ROAD PACKAGE & W(STABILIZER BAR)
main48540-20260i198712-198911
MARK 48540-20260,HARSH ROAD PACKAGE OR W(STABILIZER BAR)
main48540-20260i198911-199006
MARK 48540-20260,HARSH ROAD PACKAGE OR HARSH ROAD PACKAGE & W(STABILIZER BAR)
main48540-20260i198911-199006
MARK 48540-20260,HARSH ROAD PACKAGE OR HARSH ROAD PACKAGE & W(STABILIZER BAR);HARSH ROAD PACKAGE & THAILAND SPEC & W(STABILIZER BAR);HARSH ROAD PACKAGE & THAILAND
main48540-20300i198808-198911
MARK 48540-20300,NEW ZEALAND SPEC & W(STABILIZER BAR)
sub48540-20340
main48540-20300i198908-198911
MARK 48540-20300,NEW ZEALAND SPEC & W(STABILIZER BAR) OR NE W ZEALAND SPEC & W(14INCHES DISC WHEEL)
sub48540-20340
main48540-20300i198712-199208
MARK 48540-20300
sub48540-20340
main48540-20300i198911-199208
MARK 48540-20300,NEW ZEALAND SPEC
sub48540-20340
main48540-20320i198712-199208
MARK 48540-20320
sub48540-20340
main48540-20320i198911-199208
MARK 48540-20320,THAILAND SPEC
sub48540-20340
main48540-20320i198805-198911
MARK 48540-20320,THAILAND SPEC & W(14INCHES DISC WHEEL & STABILIZER BAR)
sub48540-20340
main48540-20320i198807-198911
MARK 48540-20320,THAILAND SPEC & W(14INCHES DISC WHEEL)
sub48540-20340
main48540-20320i198911-199001
MARK 48540-20320,NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
sub48540-20340
main48540-20320i198712-198808
MARK 48540-20320,NEW ZEALAND SPEC & W(STABILIZER BAR)
sub48540-20340
main48540-20320i198805-198808
MARK 48540-20320,THAILAND SPEC & W(14INCHES DISC WHEEL & STABILIZER BAR);NEW ZEALAND SPEC & W(STABILIZER BAR)
sub48540-20340
main48540-20340i198911-199006
MARK 48540-20340,HARSH ROAD PACKAGE OR HARSH ROAD PACKAGE O R THAILAND SPEC
main48540-20340i198712-199208
MARK 48540-20340,HARSH ROAD PACKAGE
main48540-20340i198712-198911
MARK 48540-20340,HARSH ROAD PACKAGE OR HARSH ROAD PACKAGE & W(STABILIZER BAR)
main48540-20370i198810-199211
MARK 48540-20260
main48540-20430i198712-199208
MARK 48540-20430
48703CNUT(FOR REAR SUSPENSION ARM)
main90179-12063i198712-199211
BODY SIDE
main90179-14019i198712-199211
CARRIER SIDE
48703DWASHER(FOR REAR SUSPENSION ARM)
main90109-12034i198911-199211
BODY SIDE
main90201-14017i198712-199211
CARRIER SIDE
main90209-13008i198712-198906
BODY SIDE
48703EBOLT(FOR REAR SUSPENSION ARM)
main90105-12132i198712-199211
*12-1.25PX80-20
main90105-12159i198712-198906
*12-1.25PX81.5-24
sub90109-12034
main90105-14036i198712-199211
*14-1.5PX248-30
main90109-12034i198906-199211
*12-1.25PX81.5-24
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
main48710-20060i199006-199106
NEW ZEALAND SPEC OR THAILAND SPEC
sub48710-20220
main48710-20060i198805-199106
THAILAND SPEC
sub48710-20220
main48710-20060i198712-199006
NEW ZEALAND SPEC
sub48710-20220
main48710-20060i198712-199106
sub48710-20220
main48710-20080i198712-199208
main48710-20220i199106-199208
THAILAND SPEC
main48710-20220i199106-199208
NEW ZEALAND SPEC OR THAILAND SPEC
main48710-20220i199106-199211
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
main48720-20050i198712-199006
NEW ZEALAND SPEC
sub48720-20090
main48720-20050i198805-199106
THAILAND SPEC
sub48720-20090
main48720-20050i198712-199106
sub48720-20090
main48720-20050i199006-199106
NEW ZEALAND SPEC OR THAILAND SPEC
sub48720-20090
main48720-20060i198712-199208
main48720-20090i199106-199208
THAILAND SPEC
main48720-20090i199106-199208
NEW ZEALAND SPEC OR THAILAND SPEC
main48720-20090i199106-199211
48730AARM ASSY, REAR SUSPENSION, NO.2
main48730-20030i198712-199208
main48730-20040i198810-199211
LH
main48730-20060i198805-199208
THAILAND SPEC
main48730-20060i198810-199211
RH
main48730-20060i198712-199006
NEW ZEALAND SPEC
main48730-20060i198712-199208
main48730-20060i199006-199208
NEW ZEALAND SPEC OR THAILAND SPEC
48750SUPPORT ASSY, REAR SUSPENSION
main48750-20050i198712-199211
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
main90179-14015i198712-199211
48750BCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
main90387-15012i198712-199211
sub90387-15027
48750GNUT(FOR REAR SUSPENSION SUPPORT)
main90179-08122i198712-199211
48753COVER, REAR SUSPENSION SUPPORT
main48753-12010i198712-199211
48780AROD ASSY, STRUT, REAR
main48780-20040i198712-199211
48780BBOLT(FOR STRUT ROD)
main90119-12131i198712-199211
48780CNUT(FOR STRUT ROD)
main90179-12062i198712-199211
CARRIER SIDE
main90179-12065i198712-199211
BODY SIDE
48812BAR, STABILIZER, REAR
main48812-20250i198911-199208
THAILAND SPEC
main48812-20250i198712-198911
main48812-20270i198808-199208
NEW ZEALAND SPEC
main48812-20270i198808-199211
main48812-20300i198805-199208
THAILAND SPEC
main48812-20300i198712-198808
NEW ZEALAND SPEC
main48812-20300i198712-198808
main48812-20300i198805-198808
NEW ZEALAND SPEC OR THAILAND SPEC
48818BUSH, STABILIZER, REAR
main48818-12150i198808-198911
main48818-12150i198808-198911
NEW ZEALAND SPEC
main48818-12160i198805-198808
THAILAND SPEC OR NEW ZEALAND SPEC
main48818-12160i198805-198911
THAILAND SPEC
main48818-12160i198712-198808
NEW ZEALAND SPEC
main48818-12160i198712-198808
main48818-20070i198911-199208
NEW ZEALAND SPEC
sub48818-12150
main48818-20070i198911-199211
sub48818-12150
main48818-20080i198712-198911
main48818-20080i198911-199208
THAILAND SPEC
main48818-20100i198911-199208
THAILAND SPEC
sub48818-12160
48830LINK ASSY, REAR STABILIZER
main48830-32010i198911-199208
THAILAND SPEC
sub48830-20010
main48830-32010i198911-199208
NEW ZEALAND SPEC
sub48830-20010
main48830-32010i198911-199208
NEW ZEALAND SPEC OR THAILAND SPEC
sub48830-20010
main48830-32010i198712-199211
sub48830-20010
48830ANUT(FOR REAR STABILIZER LINK)
main90179-10054i198712-199211
48832ABRACKET, REAR STABILIZER BAR, NO.1
main48832-20020i198712-199211
4855912070COVER, SHOCK ABSORBER, DUST
main48559-12070
9161560820
main91615-60820

32 parts on this diagram · 3 diagrams in section

REAR SPRING & SHOCK ABSORBER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
