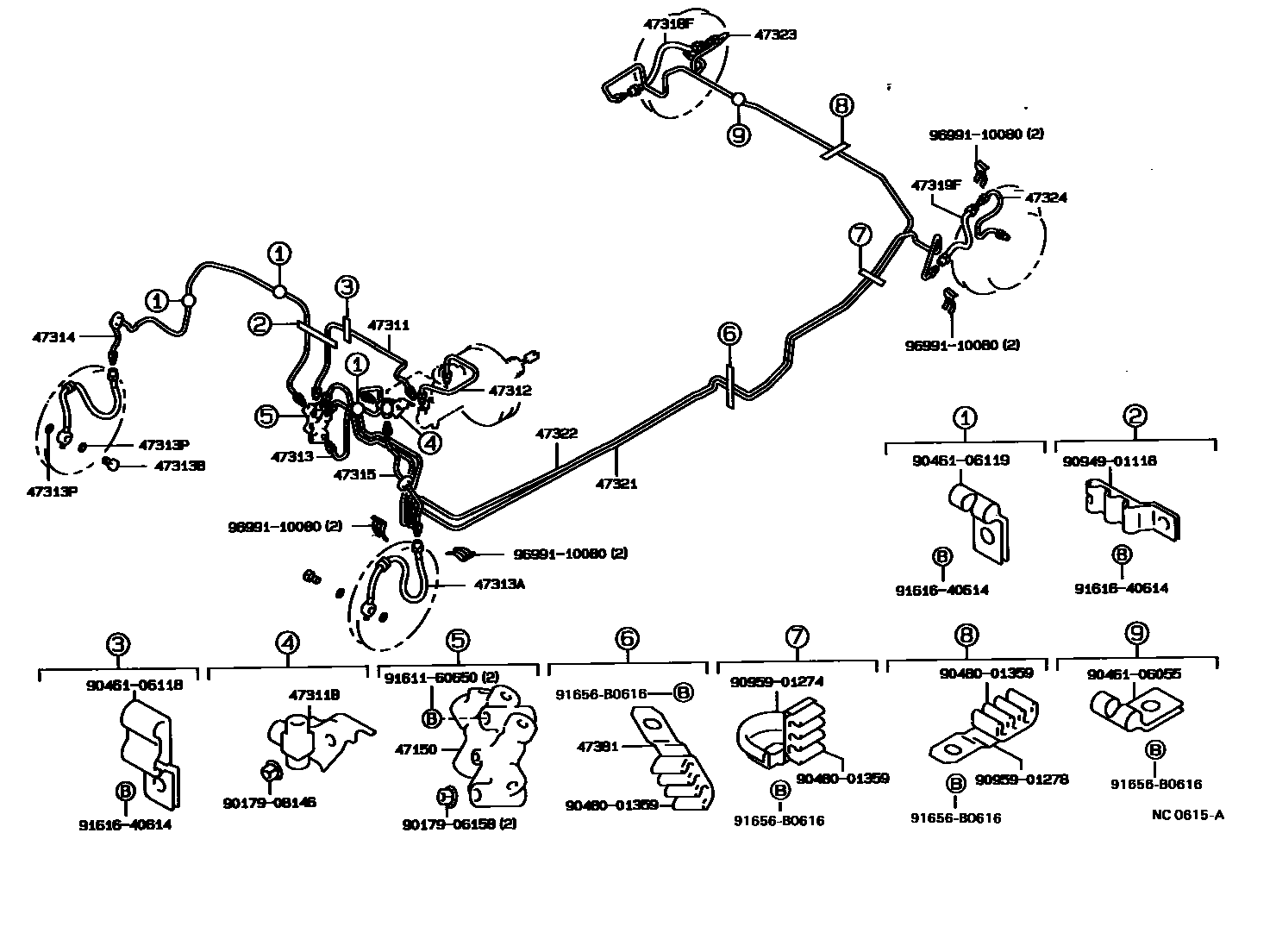

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

47150VALVE ASSY, PROPORTIONING

main47150-16040iST171..(EXS,GL,GT)..CBR198712-199208

W(14INCHES DISC WHEEL)

main47150-16050iAT171,CT170,ST171..(LB,SED)..(CBR,DSL); ST171..RHD..GL..CBR; ST171..SED..EFI199002-199208

NEW ZEALAND SPEC & W(14INCHES DISC WHEEL); W(13INCHES DISC WHEEL)

main47150-20160iST171..4FC..EFI;ST171..SED..5F..EFI; ST171..LB..5F..EFI198712-198911

W(14INCHES DISC WHEEL)

47311TUBE, FRONT BRAKE, NO.1

main47311-20520iAT17#..RHD198712-198911

main47311-20530iAT17#,CT17#,ST171..LHD198712-199211

main47311-20590iST171..RHD198712-199211

main47311-20670iAT17#..RHD198911-199211

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10159iAT17#,CT17#,ST171..LHD198712-199211

main90413-10193iAT17#,ST171..RHD198712-199211

47312TUBE, FRONT BRAKE, NO.2

main47312-20200iAT17#..RHD198712-199211

main47312-20210iST171..RHD198712-199211

main47312-20230iAT17#,CT17#,ST171..LHD198712-199211

47313TUBE, FRONT BRAKE, NO.3

main47313-20340iAT17#,ST171..RHD198712-199211

main47313-20350iAT17#,CT17#,ST171..LHD198712-198801

main47313-20351iCT17#,ST171..LHD198911-199211

main47313-20550iAT17#..LHD198911-199211

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02565×2iAT17#,CT17#,ST171198712-199211

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iAT17#,CT17#,ST171198712-199211

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010×4iAT17#..RHD;CT177,ST171199203-199211

main90430-10074×4iAT177..LHD199203-199211

47314TUBE, FRONT BRAKE, NO.4

main47314-20260iAT17#,CT17#,ST171..LHD198712-199211

main47314-20300iAT17#,ST171..RHD198712-199211

47315TUBE, FRONT BRAKE, NO.5

main47315-20400iAT17#,ST171..RHD198712-199211

main47315-20410iAT17#,CT17#,ST171..LHD198712-199211

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02497iAT171,CT170,ST171198712-198911

main90947-02498iST171..EFI198911-199208

main90947-02539iAT177,CT177198712-199211

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02497iAT171,CT170,ST171..CBR,DSL198911-199211

main90947-02498iST171..EFI198911-199208

main90947-02539iAT177,CT177198712-199211

47321TUBE, REAR BRAKE, NO.1

main47321-20190iAT171,ST171..RHD..(LB,SED)198712-199004

main47321-20191iAT171,ST171..RHD..(LB,SED)199004-199208

main47321-20200iAT171,CT170,ST171..LHD198712-199004

main47321-20201iAT171,CT170,ST171..LHD199004-199208

main47321-20210iST171..WG198810-199211

main47321-20230iAT177..RHD198712-199211

main47321-20240iAT177,CT177..LHD198712-199211

47322TUBE, REAR BRAKE, NO.2

main47322-20310iAT171,ST171..RHD..(LB,SED)198712-199208

main47322-20320iAT171,CT170,ST171..LHD198712-199208

main47322-20330iST171..WG198810-199211

main47322-20350iAT177..RHD198712-199211

main47322-20360iAT177,CT177..LHD198712-199211

47323TUBE, REAR BRAKE, NO.3

main47323-13020iAT177,CT177198712-199211

main47323-32040iAT171,CT170,ST171198712-198911

main47323-32050iST171..GL..CBR198712-198808

W(14INCHES DISC WHEEL)

47324TUBE, REAR BRAKE, NO.4

main47324-13060iAT177,CT177198712-199211

main47324-32040iAT171,CT170,ST171198712-198911

main47324-32050iST171..GL..CBR198712-198808

W(14INCHES DISC WHEEL)

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-20060iAT171,CT170,ST171198712-199211

9017906158

main90179-06158

9017908146

main90179-08146

9046106055

main90461-06055

9046106118

main90461-06118

9046106119

main90461-06119

9048001359

main90480-01359

9094901118

main90949-01118

9095901274

main90959-01274

9095901278

main90959-01278

9161160650

main91611-60650

9161640614

main91616-40614

91656B0616

main91656-B0616

9699110080

main96991-10080

30 parts on this diagram · 5 diagrams in section
