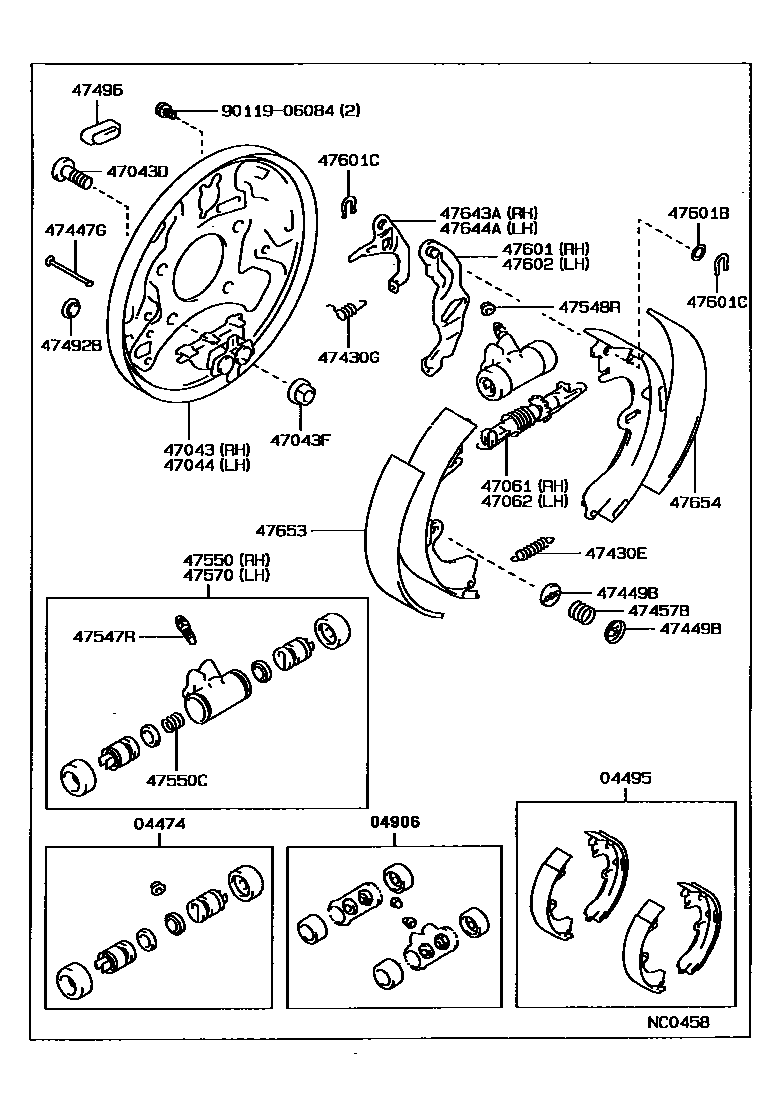

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-10032iAT177,CT177,ST171..WG198712-199211

sub04474-63020

main04474-10032iST171..(EXS,GL,GT)..CBR198712-199208

W(14INCHES DISC WHEEL)

sub04474-63020

main04474-16020iST171..SED..EFI;AT171,CT170,ST171..(LB,SED)..(CBR,DSL)199002-199208

NEWZEALAND SPEC

main04474-16020iAT171,CT170,ST171..LB,SED198712-199002

04495SHOE KIT, REAR BRAKE

main04495-20091iAT171,CT170,ST171198712-198809

sub04495-20092

main04495-20092iAT171,CT170,ST171..LB,SED198809-199208

sub04495-20150

main04495-20120iAT177,CT177198712-198809

sub04495-20121

main04495-20121iAT177,CT177198809-199012

sub04495-20150

main04495-20150iAT177,CT177199012-199211

main04495-32031iST171..WG198810-199211

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iST171..(EXS,GL,GT)..CBR198712-199208

W(14INCHES DISC WHEEL)

main04906-10021iAT177,CT177,ST171..WG198712-199211

main04906-16020iST171..LB..GEN..CBR199002-199208

NEW ZEALAND SPEC

main04906-16020iAT171,ST171198712-199002

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12070iAT177,CT177198712-199211

main47043-32010iAT171,CT170,ST171198712-199211

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22020iAT177,CT177198712-199211

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000iAT177,CT177198712-199211

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12070iAT177,CT177198712-199211

main47044-32010iAT171,CT170,ST171198712-199211

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-20020iST171..SED..EFI;AT17#,CT17#,ST171..CBR,DSL198911-199211

main47061-32010iAT17#,CT17#,ST171198712-198911

sub47061-20020

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-20020iAT17#,CT17#,ST171198911-199211

main47062-32010iAT17#,CT17#,ST171198712-198911

sub47062-20020

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18034iAT17#,CT17#,ST171198712-199211

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12036iAT17#,CT17#,ST171198712-199211

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30010iAT17#,CT17#,ST171198712-199211

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iST171..WG198712-199211

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90501-18017iAT17#,CT17#,ST171198712-199211

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010iAT17#,CT17#,ST171198712-199211

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iST171..SED..EFI;AT17#,CT17#,ST171..CBR,DSL198712-199211

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iAT17#,CT17#,ST171198712-199211

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iST171..SED..EFI;AT17#,CT17#,ST171..CBR,DSL198712-199211

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-16030iAT171,CT170,ST171..LB,SED198712-198911

sub47550-20120

main47550-20120iST171..SED..EFI;AT171,CT170,ST171..(LB,SED)..(CBR,DSL)199002-199208

NEWZEALAND SPEC

main47550-20120iAT171,CT170,ST171..LB,SED198911-199002

main47550-20130iAT177,CT177,ST171..WG198911-199211

main47550-20130iST171..(EXS,GL,GT)..CBR198911-199208

W(14INCHES DISC WHEEL)

main47550-32010iST171..GL..CBR198712-198911

W(14INCHES DISC WHEEL)

sub47550-20130

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006iAT17#,CT17#;ST171..SED..EFI;ST171..(LB,SED)..CBR198712-199211

sub90029-60014

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-16010iAT171,CT170,ST171..LB,SED198712-198911

sub47570-20030

main47570-20030iST171..RHD..GL..CBR199002-199208

NEWZEALAND SPEC

main47570-20030iAT171,CT170,ST171..LB,SED198911-199002

main47570-20040iST171..(EXS,GL,GT)..CBR198911-199208

W(14INCHES DISC WHEEL)

main47570-20040iAT177,CT177,ST171..WG198911-199211

main47570-32010iST171..GL..CBR198712-198911

W(14INCHES DISC WHEEL)

sub47570-20040

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-32010iST171..SED..EFI;AT17#,CT17#,ST171..CBR,DSL198712-199211

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iAT17#,CT17#,ST171198712-199211

T=0.3

main90564-08151iAT17#,CT17#,ST171198712-199211

T=0.6

main90564-08152iST171..SED..EFI;AT17#,CT17#,ST171..CBR,DSL198712-199211

T=0.9

main90564-08172iAT17#,CT17#,ST171198712-199211

T=0.2

main90564-08173iAT17#,CT17#,ST171198712-199211

T=0.4

main90564-08174iAT17#,CT17#,ST171198712-199211

T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iAT17#,CT17#,ST171198712-199211

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-32010iAT17#,CT17#,ST171198712-199211

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-32010iAT17#,CT17#,ST171198712-199211

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-32010iAT17#,CT17#,ST171198712-199211

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-20130iAT171,CT170,ST171..LB,SED198712-198911

main47651-20140iAT171,CT170,ST171..LB,SED198911-199208

main47651-32020iST171..WG198810-199211

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-20130iAT171,CT170,ST171..LB,SED198712-198911

main47651-20140iAT171,CT170,ST171..LB,SED198911-199208

main47651-32020iST171..WG198810-199211

9011906084

main90119-06084

30 parts on this diagram · 1 diagram in section
