FRONT DISC BRAKE CALIPER & DUST COVER

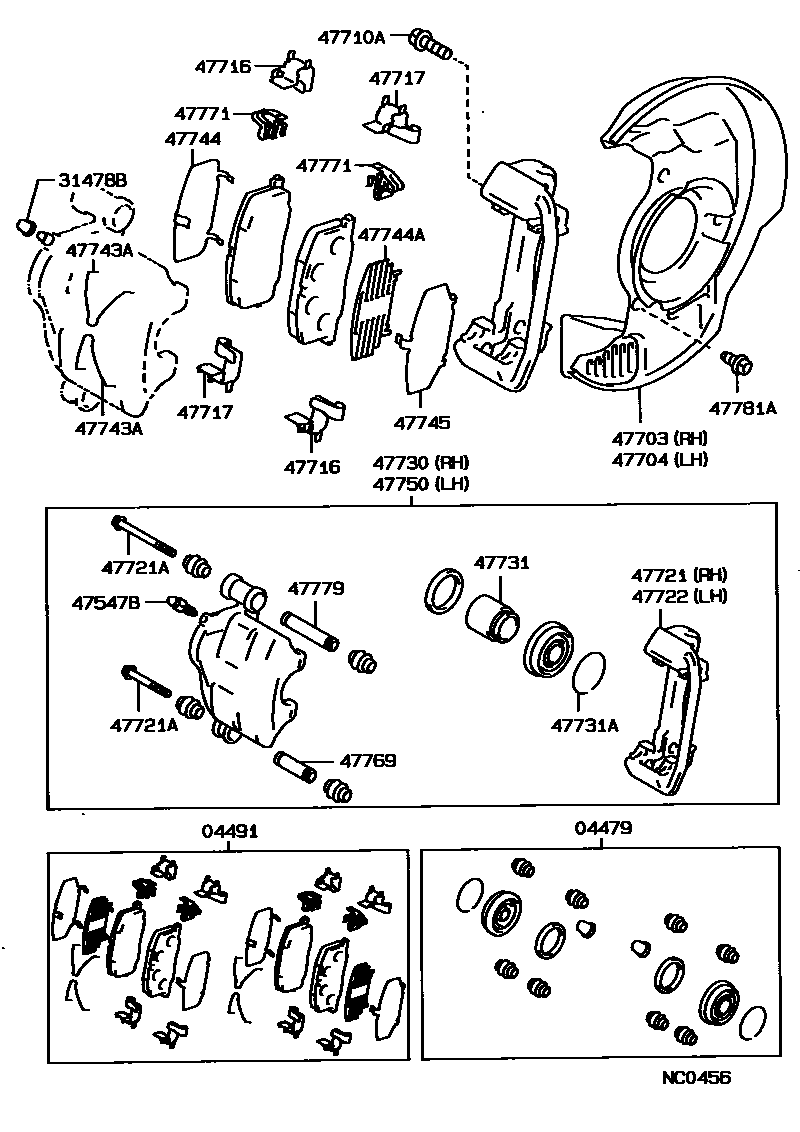

Parts diagram
04479CYLINDER KIT, DISC BRAKE, FRONT
main04479-32021i198712-199211
main04479-32021i199002-199208
W(13INCHES DISC WHEEL)
main04479-32021i199002-199208
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main04479-32030i199002-199008
NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)
main04479-32030i198712-199208
W(14INCHES DISC WHEEL)
main04479-32030i199002-199008
THAILAND OR MALAYSIA SPEC
04491PAD KIT, DISC BRAKE, FRONT
main04491-20450i198712-198812
sub04491-20451
main04491-20451i198812-198905
sub04491-20750
main04491-20460i198712-198812
sub04491-20461
main04491-20461i198812-199007
sub04465-21010
main04491-20750i199002-199007
W(13INCHES DISC WHEEL & *66)
sub04465-21010
main04491-20750i198905-199002
sub04465-21010
main04491-20750i199002-199007
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
sub04465-21010
main04491-20790i199007-199208
W(13INCHES DISC WHEEL & *66)
sub04465-21010
main04491-20790i199007-199208
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
sub04465-21010
main04491-20790i199007-199211
sub04465-21010
main04491-20800i199007-199203
sub04491-20801
main04491-32131i198712-198812
W(14INCHES DISC WHEEL)
sub04491-32132
sub04491-32291
main04491-32132i198812-199010
W(14INCHES DISC WHEEL)
sub04465-32091
main04491-32132i199002-199008
THAILAND SPEC OR MALAYSIA SPEC
sub04465-32091
main04491-32132i199002-199008
NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)
sub04465-32091
main04491-32301i199010-199208
W(14INCHES DISC WHEEL & *66)
sub04465-32050
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
main31478-30010i198712-199211
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
main47547-20010i198712-199211
47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
main47703-12120i198712-198901
sub47703-12121
main47703-12121i199002-199208
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47703-12121i199002-199208
W(13INCHES DISC WHEEL)
main47703-12121i198901-199211
main47703-32011i198712-198901
W(14INCHES DISC WHEEL)
sub47703-32040
main47703-32040i199002-199008
THAILAND SPEC OR MALAYSIA SPEC
main47703-32040i198901-199208
W(14INCHES DISC WHEEL)
main47703-32040i199002-199008
NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)
47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
main47704-12120i198712-198901
sub47704-12121
main47704-12121i198901-199211
main47704-12121i199002-199208
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47704-12121i199002-199208
W(13INCHES DISC WHEEL)
main47704-32011i198712-198901
W(14INCHES DISC WHEEL)
sub47704-32040
main47704-32040i199002-199008
THAILAND SPEC OR MALAYSIA SPEC
main47704-32040i199002-199008
NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)
main47704-32040i198901-199208
W(14INCHES DISC WHEEL)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
main90119-12040i198712-199211
*12-1.25PX25.8-19.5
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
main47716-20120i199002-199007
W(13INCHES DISC WHEEL)
sub47716-32031
main47716-20120i198908-199002
sub47716-32031
main47716-20120i199002-199007
NEWZEALAND SPEC & W(13INCHES DISC WHEEL)
sub47716-32031
main47716-20140i199007-199010
W(13INCHES DISC WHEEL)
main47716-20140i199007-199010
NEWZEALAND SPEC & W(13INCHES DISC WHEEL)
main47716-32030i198712-198812
sub47716-32031
main47716-32031i198812-199211
main47716-32031i199010-199208
W(13INCHES DISC WHEEL)
main47716-32031i199010-199208
NEWZEALAND SPEC & W(13INCHES DISC WHEEL)
main47716-32040i198712-198812
W(14INCHES DISC WHEEL)
sub47716-32041
main47716-32041i198812-199208
W(14INCHES DISC WHEEL)
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
main47717-20070i199002-199007
NEWZEALAND SPEC & W(13INCHES DISC WHEEL)
sub47717-32031
main47717-20070i198908-199002
sub47717-32031
main47717-20070i199002-199007
W(13INCHES DISC WHEEL)
sub47717-32031
main47717-20140i199007-199010
NEWZEALAND SPEC & W(13INCHES DISC WHEEL)
main47717-20140i199007-199010
W(13INCHES DISC WHEEL)
main47717-32030i198712-198812
sub47717-32031
main47717-32031i199010-199208
W(13INCHES DISC WHEEL)
main47717-32031i199010-199208
NEWZEALAND SPEC & W(13INCHES DISC WHEEL)
main47717-32031i198812-199211
main47717-32040i198712-198901
W(14INCHES DISC WHEEL)
sub47717-32041
main47717-32041i198901-199208
W(14INCHES DISC WHEEL)
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
main47721-20200i199002-199008
THAILAND OR MALAYSIA SPEC
main47721-20200i198712-199208
W(14INCHES DISC WHEEL)
main47721-20200i199002-199008
NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)
main47721-20340i199007-199211
main47721-20340i199007-199208
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47721-20340i199007-199208
W(13INCHES DISC WHEEL)
main47721-32050i199002-199007
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47721-32050i199002-199007
W(13INCHES DISC WHEEL)
main47721-32050i198712-199002
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
main90119-09003i198712-199211
*9-1.25PX71-25
main90119-09003i199002-199208
*9-1.25PX71-25,W(13INCHES DISC WHEEL)
main90119-09004i198712-199211
*9-1.25PX91-25
main90119-09004i199002-199208
*9-1.25PX91-25,W(13INCHES DISC WHEEL)
main90119-10014i198712-199208
*10-1.25PX65.5-30,W(14INCHES DISC WHEEL)
main90119-10014i199002-199208
*10-1.25PX65.5-30
main90119-10249i198712-199208
*10-1.25PX95.5-30,W(14INCHES DISC WHEEL)
main90119-10249i199002-199208
*10-1.25PX95.5-30
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
main47721-20200i199002-199008
NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)
main47721-20200i199002-199008
THAILAND OR MALAYSIA SPEC
main47721-20200i198712-199208
W(14INCHES DISC WHEEL)
main47721-20340i199007-199208
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47721-20340i199007-199208
W(13INCHES DISC WHEEL)
main47721-20340i199007-199211
main47721-32050i199002-199007
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47721-32050i198712-199002
main47721-32050i199002-199007
W(13INCHES DISC WHEEL)
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
main47730-20280i199002-199007
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47730-20280i199002-199007
W(13INCHES DISC WHEEL)
main47730-20280i198712-199002
main47730-20300i198712-199208
W(14INCHES DISC WHEEL)
main47730-20300i199002-199008
THAILAND OR MALAYSIA SPEC
main47730-20300i199002-199008
NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)
main47730-20450i199007-199208
W(13INCHES DISC WHEEL)
main47730-20450i199007-199208
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47730-20450i199007-199211
47731PISTON, FRONT DISC BRAKE
main47731-12130i199007-199208
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47731-12130i199007-199211
main47731-12130i199007-199208
W(13INCHES DISC WHEEL)
main47731-32020i199002-199007
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47731-32020i198712-199002
main47731-32020i199002-199007
W(13INCHES DISC WHEEL)
main47731-32040i199002-199008
NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)
main47731-32040i198712-199208
W(14INCHES DISC WHEEL)
main47731-32040i199002-199008
THAILAND OR MALAYSIA SPEC
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
main90522-64003i199002-199208
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main90522-64003i199002-199208
W(13INCHES DISC WHEEL)
main90522-64003i198712-199211
main90522-66001i198712-199208
W(14INCHES DISC WHEEL)
main90522-66001i199002-199008
THAILAND OR MALAYSIA SPEC
main90522-66001i199002-199008
NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)
47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
main47743-32010i198712-199203
sub47743-12070
main47743-32020i198712-199203
W(14INCHES DISC WHEEL)
main47743-32020i198712-199208
47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
main47744-16011i198712-198804
sub47744-32010
main47744-32010i199002-199208
W(13INCHES DISC WHEEL)
main47744-32010i198804-199211
main47744-32010i199002-199208
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47744-32041i199002-199008
NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)
main47744-32041i198712-199208
W(14INCHES DISC WHEEL)
main47744-32041i199002-199008
THAILAND OR MALAYSIA SPEC
47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
main47742-17010i198712-198812
main47742-32021i198712-198901
W(14INCHES DISC WHEEL)
main47742-32022i198901-199208
W(14INCHES DISC WHEEL)
main47742-32022i199002-199008
THAILAND OR MALAYSIA SPEC
main47742-32022i199002-199008
NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)
main47742-32040i199002-199208
W(13INCHES DISC WHEEL)
main47742-32040i198812-199211
main47742-32040i199002-199208
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47744-16011i198712-198804
sub47744-32010
main47744-32010i198804-198812
47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
main47745-17020i198712-198812
main47745-32020i198712-198901
W(14INCHES DISC WHEEL)
main47745-32021i198901-199208
W(14INCHES DISC WHEEL)
main47745-32021i199002-199008
THAILAND OR MALAYSIA SPEC
main47745-32021i199002-199008
NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)
main47745-32040i198812-199211
main47745-32040i199002-199208
W(13INCHES DISC WHEEL)
main47745-32040i199002-199208
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
47750CYLINDER ASSY, DISC BRAKE, LH
main47750-20280i199002-199007
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47750-20280i198712-199002
main47750-20280i199002-199007
W(13INCHES DISC WHEEL)
main47750-20300i198712-199208
W(14INCHES DISC WHEEL)
main47750-20300i199002-199008
THAILAND OR MALAYSIA SPEC
main47750-20300i199002-199008
NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)
main47750-20450i199007-199208
W(13INCHES DISC WHEEL)
main47750-20450i199007-199208
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47750-20450i199007-199211
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
main47769-12030i199007-199211
main47769-12030i199007-199208
W(13INCHES DISC WHEEL)
main47769-12030i199007-199208
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47769-32010i199002-199007
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47769-32010i199002-199007
W(13INCHES DISC WHEEL)
main47769-32010i198712-199002
main47769-40010i198712-199208
W(14INCHES DISC WHEEL)
main47769-40010i199002-199008
THAILAND OR MALAYSIA SPEC
main47769-40010i199002-199008
NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)
47771PLATE, PAD WEAR INDICATOR, NO.1
main47771-32010i198712-199211
47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
main47779-16010i199007-199208
W(13INCHES DISC WHEEL)
main47779-16010i199007-199208
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47779-16010i199007-199211
main47779-32010i199002-199007
W(13INCHES DISC WHEEL)
main47779-32010i199002-199007
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
main47779-32010i198712-199002
main47779-40010i198712-199208
W(14INCHES DISC WHEEL)
main47779-40010i199002-199008
NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)
main47779-40010i199002-199008
THAILAND OR MALAYSIA SPEC
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
main90109-06134i198712-199211

24 parts on this diagram · 2 diagrams in section
