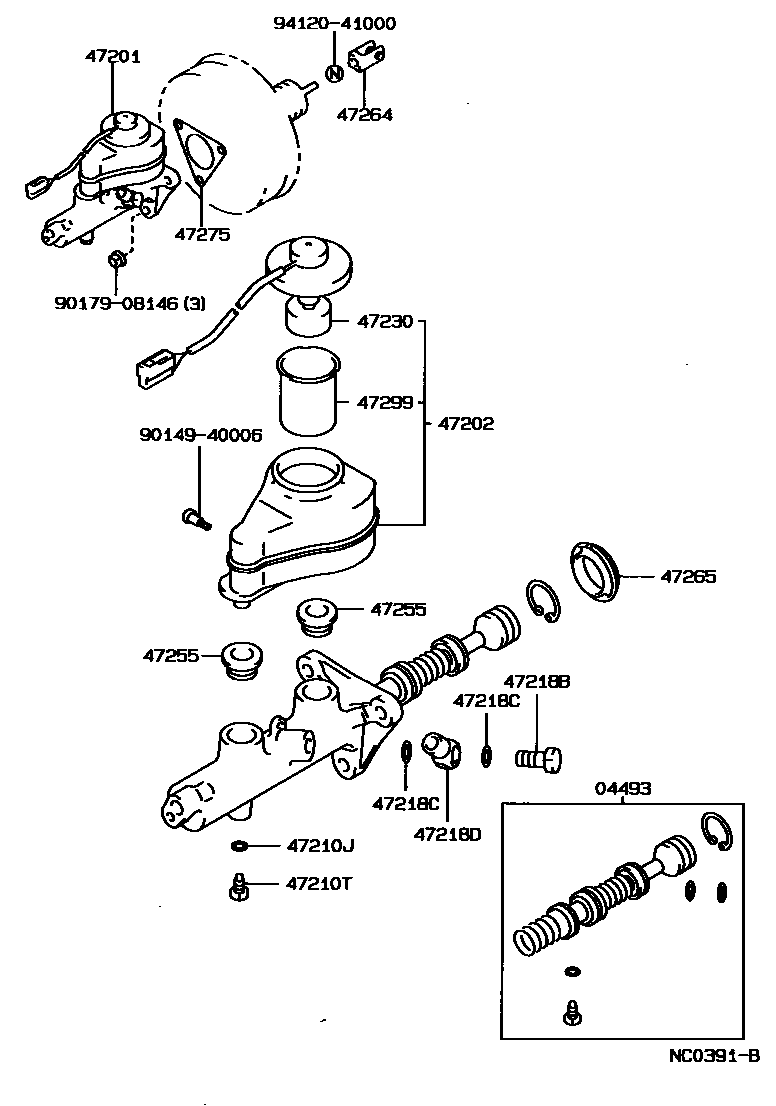

BRAKE MASTER CYLINDER
04493CYLINDER KIT, BRAKE MASTER
sub04493-20210
NEW ZEALAND SPEC;MALAYSIA SPEC;THAILAND SPEC
sub04493-33030
47201CYLINDER SUB-ASSY, BRAKE MASTER
W(13INCHES DISC WHEEL)
W(14INCHES DISC WHEEL)
MALAYSIA SPEC;THAILAND SPEC
W(14INCHES DISC WHEEL)
W(13INCHES DISC WHEEL)
NEWZEALAND SPEC
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
W(13INCHES DISC WHEEL)
W(14INCHES DISC WHEEL)
MALAYSIA SPEC;THAILAND SPEC
W(13INCHES DISC WHEEL)
NEWZEALAND SPEC
47210JGASKET(FOR MASTER CYLINDER)
47210TBOLT(FOR BRAKE MASTER CYLINDER)
47218BBOLT, UNION(FOR MASTER CYLINDER FLUID OUTLET)
47218CGASKET(FOR MASTER CYLINDER FLUID OUTLET)
47218DUNION(FOR MASTER CYLINDER FLUID OUTLET)
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
W(14INCHES DISC WHEEL)
MALAYSIA SPEC & W(13INCHES DISC WHEEL);NEW ZEALAND SPEC & W(13INCHES DISC WHEEL)OR THAILAND SPEC & W(13INCHES DISC WHEEL)
THAILAND SPEC & W(13INCHES DISC WHEEL) OR
NEW ZEALAND SPEC & W(14INCHES DISC WHEEL)
W(13INCHES DISC WHEEL)
47255GROMMET, MASTER CYLINDER RESERVOIR
47264CLEVIS, MASTER CYLINDER PUSH ROD
47265BOOT, MASTER CYLINDER
47275GASKET, BRAKE MASTER CYLINDER
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
9014940006
main90149-40006
9017908146
main90179-08146
9412041000
main94120-41000
17 parts on this diagram · 2 diagrams in section
