OIL COOLER & TUBE (ATM)

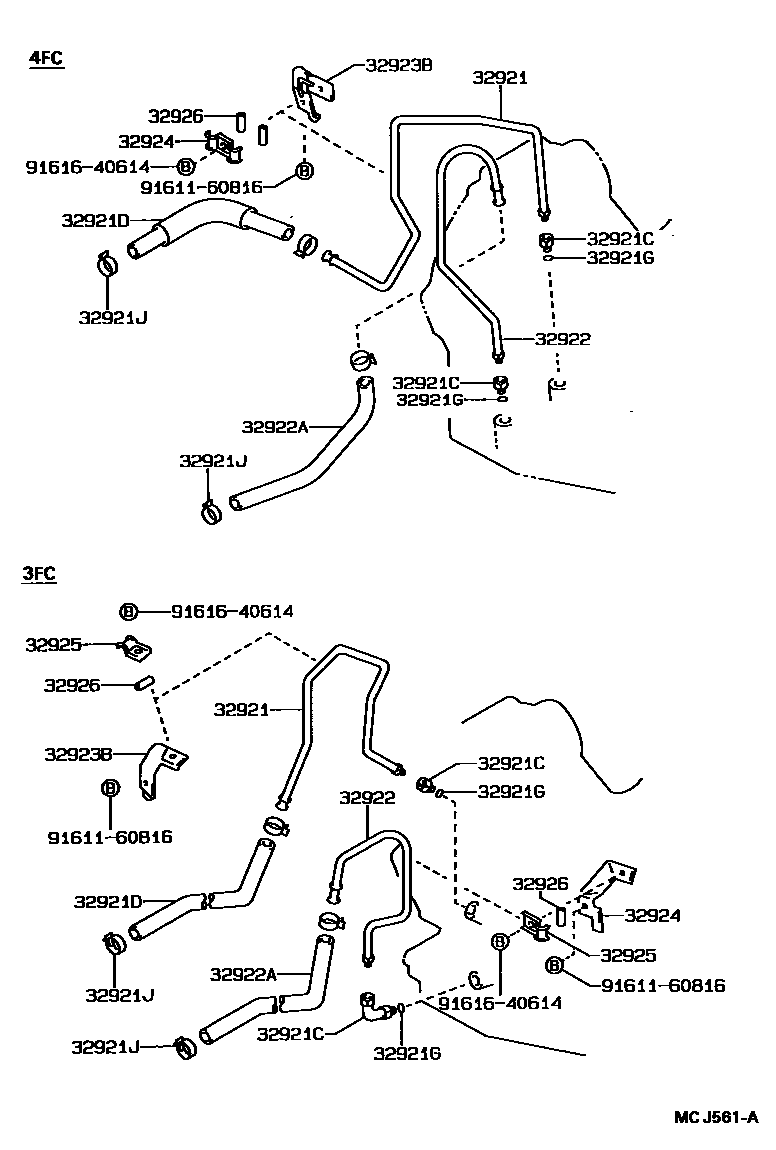

Parts diagram

32921TUBE, OIL COOLER INLET, NO.1

main32921-12351i198911-199211

main32921-12360i198712-198910

main32921-12361i198910-199211

main32921-20290i198911-199002

main32921-20291i199002-199208

32921CUNION(FOR OIL COOLER TUBE)

main32901-32010i198712-199208

OUTLET

main90404-14007i198712-199211

INLET

main90407-14003i198712-199211

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-12130i198712-198910

main32941-12131i198910-199211

main32941-20151i198911-199211

main90445-15020i198911-199002

main90445-15042i199002-199208

main90445-16026i198712-199002

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2i198712-199211

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039×4i198712-199211

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12290i198712-198910

main32922-12291i198910-199211

main32922-20271i198911-199211

main32922-20320i198911-199002

main32922-20321i199002-199208

main32922-32040i198712-198902

main32922-32041i198902-198911

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15034i198712-198910

main90445-15042i199002-199208

main90445-15050i198910-199211

main90445-15051i198911-199002

main90445-15052i198911-199211

main90445-16026i198712-199002

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-20111i198911-199208

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-12150i198911-199211

main32923-12160i198712-199211

main32923-20090i198712-198911

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-20110i198909-198910

main32923-20111i198910-198911

main32923-32021i198712-198909

main32924-12040i198712-199211

main32924-20070×2i198911-199208

main90462-12085i198911-199211

32925CLAMP, OIL COOLER TUBE, NO.3

main90462-10082×2i198712-198911

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011×3i198712-199208

L=25,ID=8

9161160816

main91611-60816

9161640614

main91616-40614

14 parts on this diagram · 2 diagrams in section
