34101CASE SUB-ASSY, OVERDRIVE

main34101-20021i198712-199208

34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)

main90105-08055×2i198712-199106

*8-1.25PX25-25

main90105-08056×3i198712-199106

*8-1.25PX40-40

main90105-08103×6i198712-199208

*8-1.25PX59-35

main90105-08167×2i199106-199208

*8-1.25PX23-23

main90105-08283×3i199106-199208

*8-1.25PX38-38

34105PROTECTOR SUB-ASSY, OVERDRIVE CASE

main34105-20011i198712-198802

main34115-20011i198802-199208

34112GASKET, OVERDRIVE CASE

main34112-20010i198712-198911

main34112-32030i198911-199012

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-20010i198712-198911

34601GBEARING,THRUST NEEDLE ROLLER(FOR OVERDRIVE DIRECT CLUTCH)

main90374-28009i198712-199208

sub90374-28013

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-20010i199005-199208

main34602-32030i198911-199005

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188i198712-199208

INNER

main90301-99016i198712-199208

OUTER

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-20010i198712-198803

main34603-32020i198803-199208

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-20010i198712-198911

34604ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH RETURN SPRING)

main90521-99051i198712-198911

34607DRUM SUB-ASSY, OVERDRIVE BRAKE

main34607-20010i198712-198803

main34607-32020i198803-199208

34615FLANGE, OVERDRIVE CLUTCH

main34615-20010×2i198712-198802

T=3.0

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99001i198712-198911

34622PISTON, OVERDRIVE BRAKE

main34622-20010i198712-198803

main34622-32020i198803-199208

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99043i198712-199208

OUTER

main90301-99044i198712-198803

INNER

main90301-99057i198803-199208

INNER

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-20010i198712-198802

T=3.35

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99050i198911-199208

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-20011i198712-198911

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-20011i198712-198905

sub35432-20081

sub35432-20091

sub35432-20141

sub35432-32051

main34710-20021i198905-199012

sub34710-20022

34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90334-03001×4i198712-199208

34710GBEARING, RADIAL BALL(FOR OVERDRIVE PLANETARY GEAR)

main90363-40024i198712-199208

34710HRING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR BEARING)

main90521-76003i198712-198911

34710JNUT(FOR OVERDRIVE PLANETARY GEAR)

main90179-40002i198712-198906

main90179-40005i198906-199208

34710PWASHER(FOR OVERDRIVE PLANETARY GEAR)

main90209-40001i198712-199208

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-32010i198712-199208

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main34714-32010i198712-199208

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-93002i198712-199208

34727PLATE, RETAINING (FOR OVERDRIVE)

main34727-32010i198712-199208

34731GEAR, OVERDRIVE PLANETARY RING

main34731-32010i198712-199208

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99008i198712-199208

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-20011i198712-199208

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010×2i198712-199211

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-20010×2i198712-198911

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35634-20010i198712-198911

35648CPLATE, CLUTCH (FOR OVERDRIVE BRAKE)

main35648-20010×6i198712-198803

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main35677-20010×2i198712-198911

sub35677-33070

35748ARING, INTERMEDIATE SHAFT OIL SEAL (FOR OVERDRIVE)

main35748-32010i198712-199208

35789HRACE, THRUST BEARING (FOR OVERDRIVE CASE)

main35789-20020i198712-199208

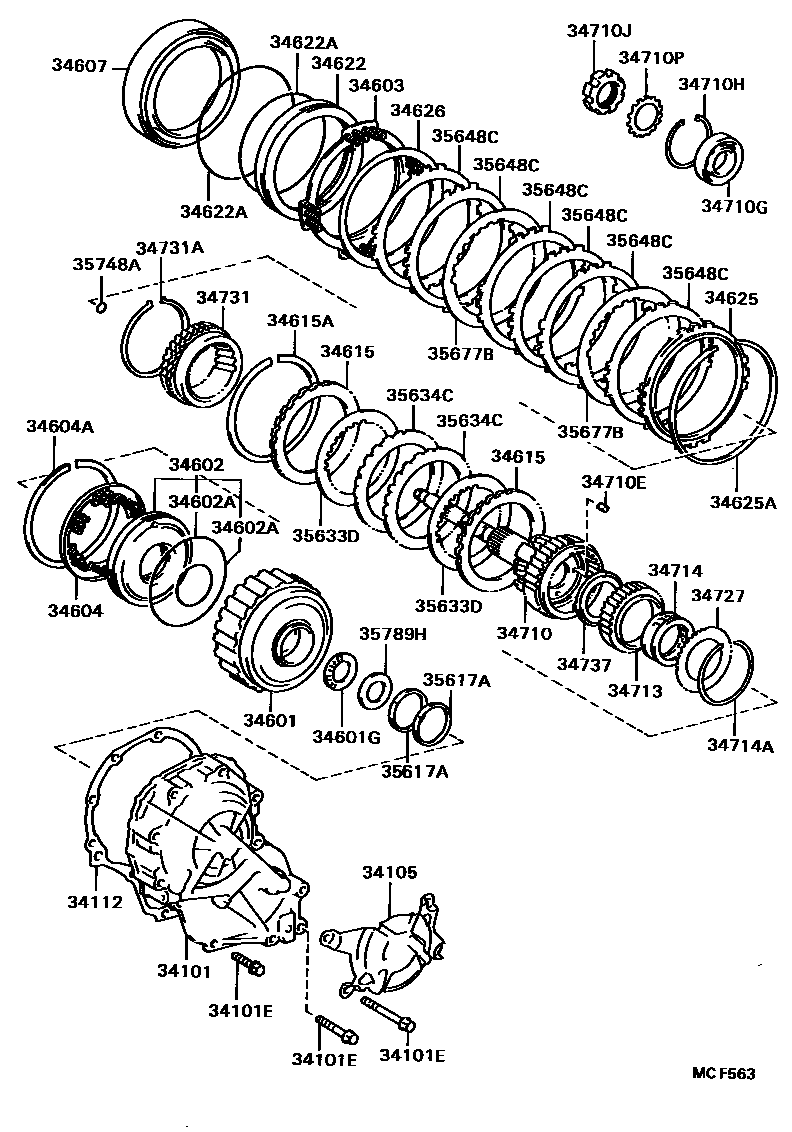

OVERDRIVE GEAR (ATM)
