CARBURETOR ASSEMBLY

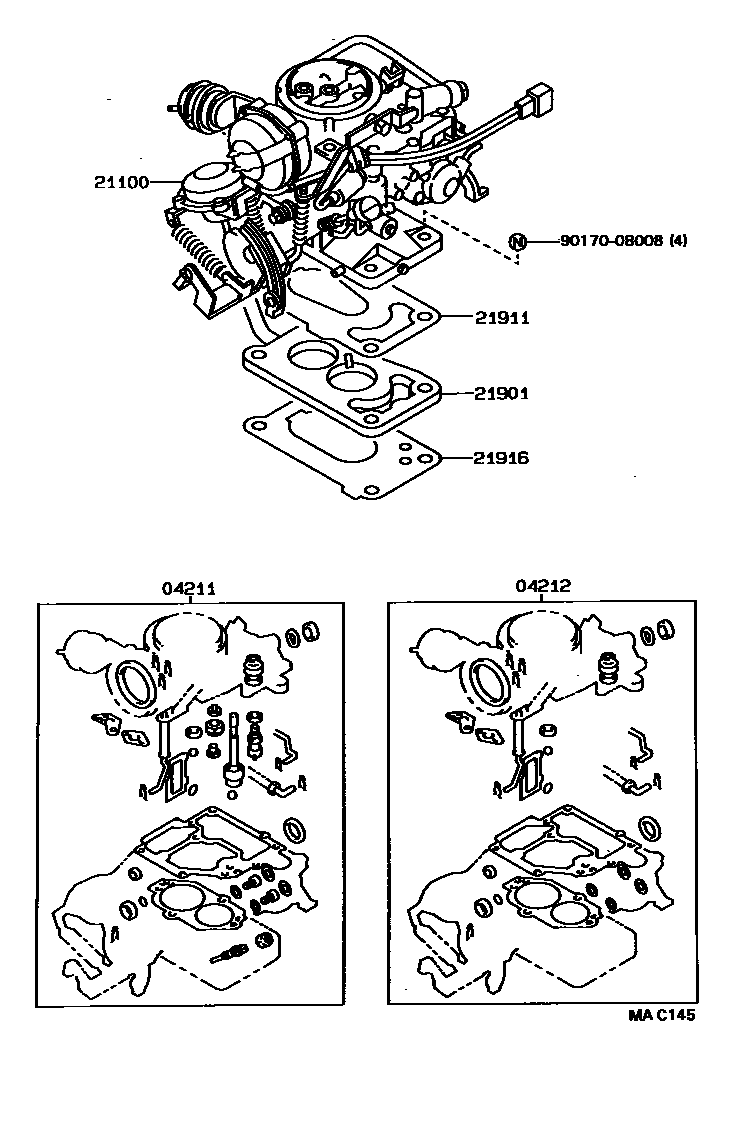

Parts diagram

04211CARBURETOR KIT

main04211-16130i198712-198802

SINGAPORE SPEC

main04211-16131i198911-199002

SINGAPORE SPEC & W(HOT AIR INTAKE)

main04211-16132i199002-199208

SINGAPORE SPEC & W(HOT AIR INTAKE)

main04211-16150i198712-198803

main04211-16151i198911-199002

main04211-16152i199002-199211

main04211-16160i198712-198803

main04211-16161i198803-198908

main04211-16162i198908-199002

main04211-16164i199111-199208

THAILAND SPEC

main04211-16170i198712-198803

W(HOT AIR INTAKE)

main04211-16171i198911-199002

W(HOT AIR INTAKE)

main04211-16172i199002-199211

W(HOT AIR INTAKE)

main04211-16270i198911-199002

SINGAPORE SPEC & W(HOT AIR INTAKE)

main04211-16271i199002-199208

NEW ZEALAND SPEC & W(HOT AIR INTAKE); SINGAPORE SPEC & W(HOT AIR INTAKE)

main04211-74070i198712-198812

main04211-74071i198812-199110

main04211-74073i199110-199211

04212GASKET KIT, CARBURETOR

main04212-14020i198712-199002

main04212-14021i199002-199203

main04212-16010i198911-199002

main04212-16011i199002-199211

main04212-16070i198712-198802

SINGAPORE SPEC

main04212-16071i199002-199211

W(HOT AIR INTAKE)

main04212-74021i198712-198812

main04212-74022i198812-199110

main04212-74024i199110-199211

21100CARBURETOR ASSY

main21100-16300i198712-198802

SINGAPORE SPEC

main21100-16320i198712-199211

main21100-16360i198712-198908

main21100-16361i198909-199203

main21100-16370i198712-198808

W(HOT AIR INTAKE)

main21100-16380i198712-198802

SINGAPORE SPEC

main21100-16381i198908-199208

NEW ZEALAND SPEC & W(HOT AIR INTAKE)

main21100-16460i198712-198908

main21100-16461i198909-199203

main21100-16530i199111-199208

THAILAND SPEC

main21100-74070i198712-198807

main21100-74071i198807-199211

main21100-74080i198712-198807

main21100-74081i198807-199208

main21100-74090i198712-199203

main21100-74120i199009-199208

PHILIPPINE SPEC

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-15091i198712-199211

main21901-74010i198712-199211

21911GASKET, CARBURETOR

main21911-15071i198712-198911

main21911-15072i198912-199211

main21911-63010×2i199009-199208

PHLIPPINE SPEC

21916GASKET, CARBURETOR, NO.2

main21916-15040i198712-198911

main21916-15041i198912-199211

9017008008

main90170-08008

7 parts on this diagram · 2 diagrams in section
