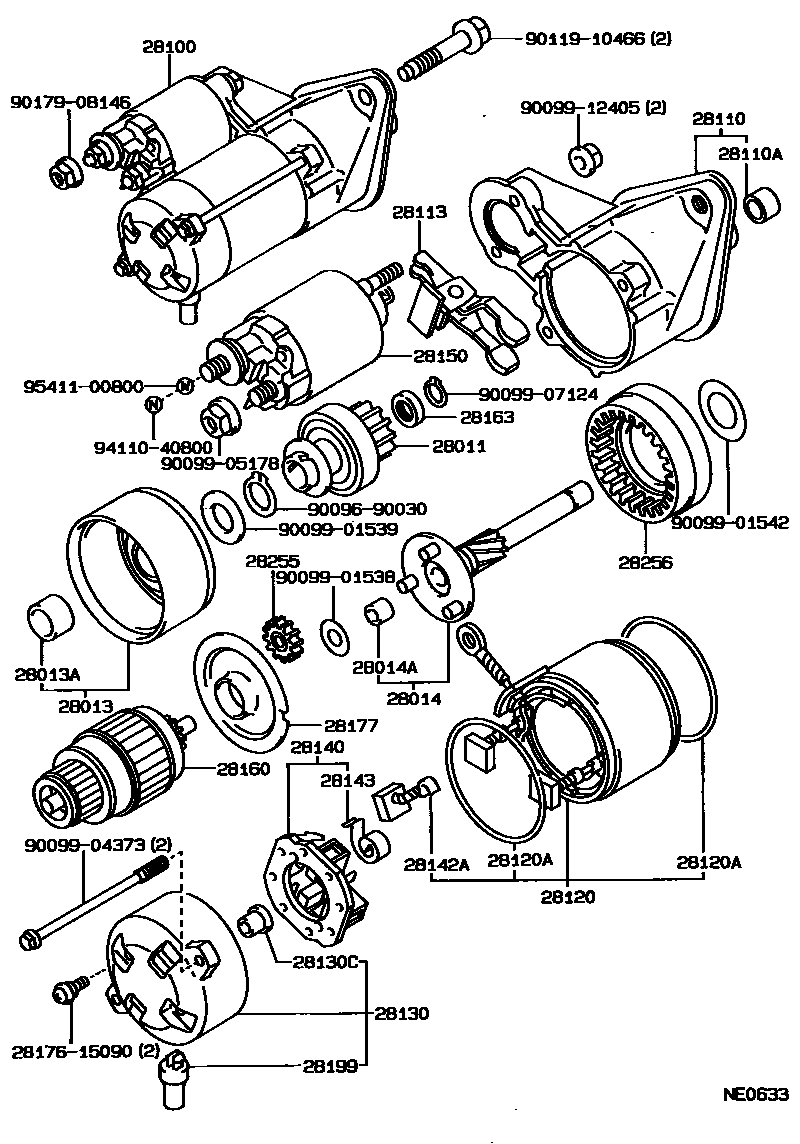

STARTER

0001 112V 0.8KW 0002 112V 1.4KW 0003 112V 1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-64010i2C..CT17#198712-199211

main28011-70020i4AF..AT17#198712-199211

main28011-74010i3SF#..ST171198712-198805

main28011-74011i3SF#..ST171198805-199211

28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1

main28013-70020i4AF..AT17#198712-199211

28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2

main90099-10181i4AF..AT17#198712-199211

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-70020i4AF..AT17#198712-199211

28014ABUSH OR BEARING, PLANET CARRIER SHAFT

main90099-10180i4AF..AT17#198712-199211

28100STARTER ASSY

main28100-16070i4AF..AT17#198712-199106

12V 0.8KW

main28100-16071i4AF..AT17#199106-199211

12V 0.8KW

main28100-64070i2C..CT17#198712-199211

12V 1.4KW

main28100-74010i3SF#..ST171198712-198805

12V 1.0KW

main28100-74011i3SF#..ST171198805-199211

12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-16070i4AF..AT17#198712-199106

main28110-16071i4AF..AT17#199106-199211

main28110-64070i2C..CT17#198712-199211

main28110-74010i3SF#..ST171198712-199211

28110ABEARING(FOR STARTER HOUSING)

main90099-10182i4AF..AT17#198712-199211

28113LEVER, STARTER PINION DRIVE

main28113-16070i4AF..AT17#198712-199211

28120YOKE ASSY, STARTER

main28120-15090i2C..CT17#198712-199211

main28120-26071i3SF#..ST171198712-199211

main28120-70020i4AF..AT17#198712-199211

28120ARING, O(FOR STARTER YOKE)

main90099-14092×2i4AF..AT17#198712-199211

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15090i2C..CT17#198712-199101

main28130-16070i4AF..AT17#198712-199211

main28130-64070i2C..CT17#199101-199211

main28130-74010i3SF#..ST171198712-199211

28130CBEARING, STARTER FLANGE

main90099-10183i4AF..AT17#198712-199211

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i2C..CT17#198712-199211

main28140-70020i4AF..AT17#198712-199211

main28140-74010i3SF#..ST171198712-199211

28142ASTARTER KIT

main28142-70020×2i4AF..AT17#198712-199211

28143SPRING, STARTER BRUSH

main28143-70020×4i4AF..AT17#198712-199211

main90099-17112×4i2C,3SF#..CT17#,ST171198712-199211

28150SWITCH ASSY, MAGNET STARTER

main28150-10020i4AF..AT17#198712-199010

main28150-10021i4AF..AT17#199010-199211

main28150-64070i2C..CT17#198712-199010

main28150-64100i2C..CT17#199010-199101

main28150-64101i2C..CT17#199101-199211

main28150-74010i3SF#..ST171198712-199211

28160ARMATURE ASSY, STARTER

main28160-15090i2C..CT17#198712-198908

main28160-15091i2C..CT17#198908-199211

main28160-26070i3SF#..ST171198712-198908

main28160-26071i3SF#..ST171198908-199211

main28160-70020i4AF..AT17#198712-198812

main28160-70021i4AF..AT17#198812-199211

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-70020i4AF..AT17#198712-199211

28177PLATE(FOR STARTER ARMATURE)

main28177-70020i4AF..AT17#198712-199211

28199COVER, STARTER

main28199-15090i2C..CT17#198712-199101

main28199-46080i4AF..AT17#199010-199211

main28199-70020i4AF..AT17#198712-199010

main28199-74100i2C..CT17#199101-199211

28255GEAR, PLANET

main28255-70020×3i4AF..AT17#198712-199211

28256GEAR, STARTER INTERNAL

main28256-70020i4AF..AT17#198712-199211

2817615090SCREW, STARTER

main28176-15090

9009690030

main90096-90030

9009901538

main90099-01538

9009901539

main90099-01539

9009901542

main90099-01542

9009904373

main90099-04373

9009905178

main90099-05178

9009907124

main90099-07124

9009912405

main90099-12405

9011910466

main90119-10466

9017908146

main90179-08146

9411040800

main94110-40800

9541100800

main95411-00800

36 parts on this diagram · 3 diagrams in section
