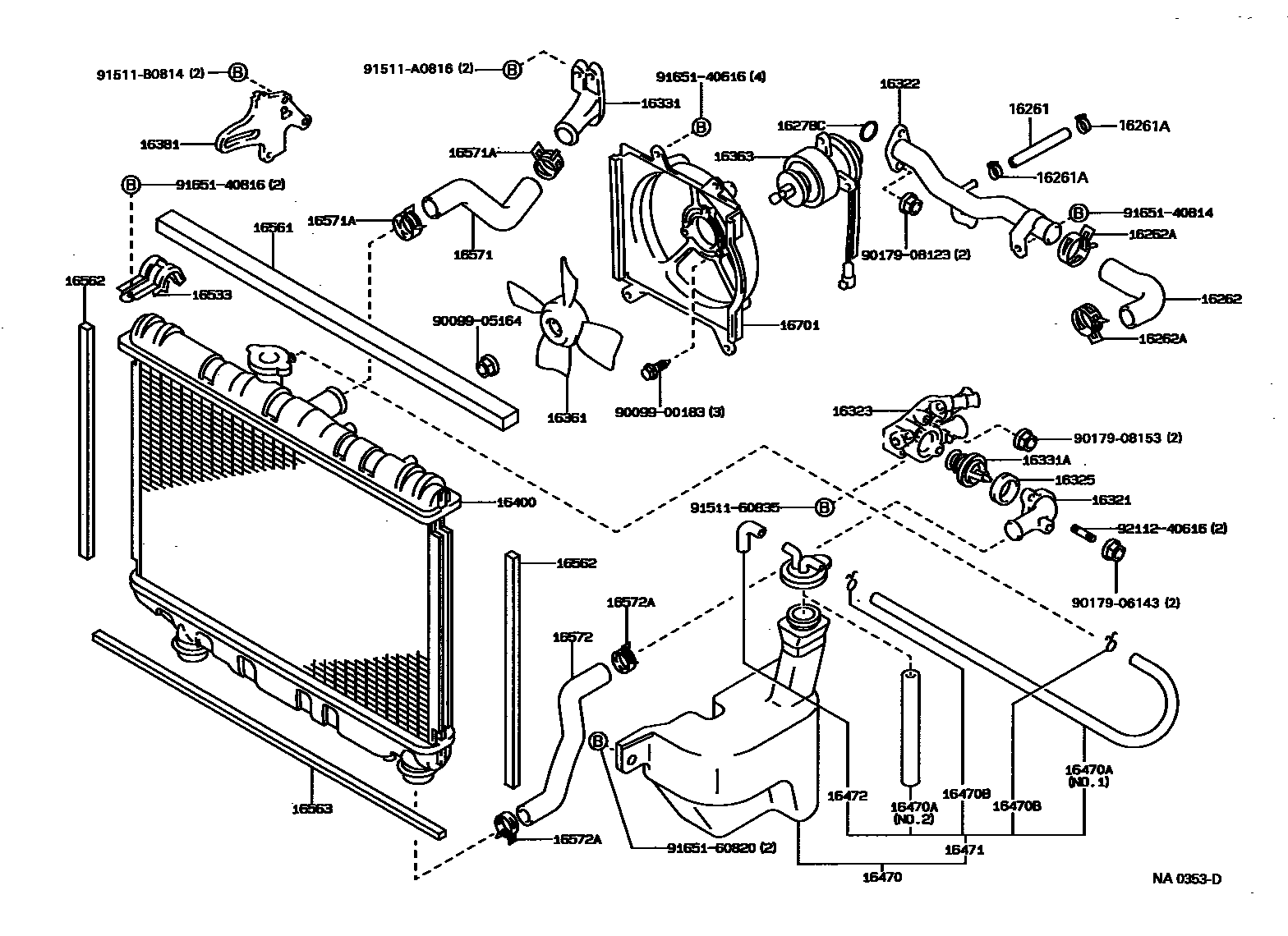

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
*H,L=200
16262HOSE, WATER INLET
16262ACLIP(FOR WATER INLET HOSE)
16278CRING, O(FOR WATER BY-PASS PIPE NO.2)
sub96761-24035
16321INLET, WATER
16323HOUSING, WATER INLET
NEW ZEALAND SPEC
NEW ZEALAND SPEC & W(HOT AIR INTAKE)
SINGAPORE SPEC
16325GASKET, WATER INLET HOUSING, NO.1
sub16325-63011
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95,*WAX 82-95
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
16400RADIATOR ASSY
sub16400-16330
MIDDLE EAST SPEC & *AXC=-642
sub16400-64471
sub16400-74360
sub16400-74350
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=1000,NO.1
L=600,NO.2
L=600,NO.1,NO.2
L=600
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
THAILAND SPEC
16561SEAL, RADIATOR TO SUPPORT, NO.1
16562SEAL, RADIATOR TO SUPPORT, NO.2
16563SEAL, RADIATOR TO SUPPORT, NO.3
16571HOSE, RADIATOR, INLET
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-34003
RADIATOR SIDE
ENGINE SIDE
sub90467-34004
16701SHROUD SUB-ASSY, FAN
9009900183
main90099-00183
9009905164
main90099-05164
9017906143
main90179-06143
9017908123
main90179-08123
9017908153
main90179-08153
9151160835
main91511-60835
91511A0816
main91511-A0816
91511B0814
main91511-B0814
9165140616
main91651-40616
9165140814
main91651-40814
9165140816
main91651-40816
9165160820
main91651-60820
9211240616
main92112-40616
42 parts on this diagram · 7 diagrams in section
